Panasonic Electric Works AQW214EH
- Part No.:
- AQW214EH
- Manufacturer:
- Panasonic Electric Works
- Category:
- Solid State Relays (SSR)
- Package:
- 8-DIP (0.300", 7.62mm)
- Datasheet:
-
AQW214EH.pdf
- Description:
- SSR RELAY SPST-NO 100MA 0-400V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AQW214EH Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- PhotoMOS™ AQW
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Circuit:
- SPST-NO (1 Form A) x 2
- Output Type:
- AC, DC
- Voltage - Input:
- 1.14VDC
- Voltage - Load:
- 0 V ~ 400 V
- Load Current:
- 100 mA
- On-State Resistance (Max):
- 35 Ohms
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 85°C
- Supplier Device Package:
- 8-DIP
- Approval Agency:
- UR, VDE
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
|
 |

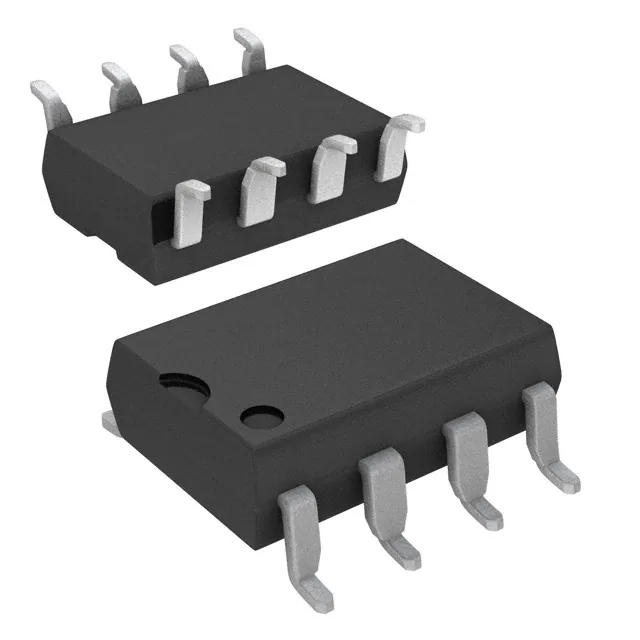

| Part Number | AQW214EH | AQW214EHAX | AQW214EHA | AQW214EHAZ |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | PhotoMOS™ AQW | PhotoMOS™ AQW | PhotoMOS™ AQW | PhotoMOS™ AQW |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Surface Mount |
| Circuit | SPST-NO (1 Form A) x 2 | SPST-NO (1 Form A) x 2 | SPST-NO (1 Form A) x 2 | SPST-NO (1 Form A) x 2 |
| Output Type | AC, DC | AC, DC | AC, DC | AC, DC |
| Voltage - Input | 1.14VDC | 1.14VDC | 1.14VDC | 1.14VDC |
| Voltage - Load | 0 V ~ 400 V | 0 V ~ 400 V | 0 V ~ 400 V | 0 V ~ 400 V |
| Load Current | 100 mA | 100 mA | 100 mA | 100 mA |
| On-State Resistance (Max) | 35 Ohms | 35 Ohms | 35 Ohms | 35 Ohms |
| Termination Style | PC Pin | Gull Wing | Gull Wing | Gull Wing |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Supplier Device Package | 8-DIP | 8-SMD | 8-SMD | 8-SMD |
| Approval Agency | UR, VDE | UR, VDE | UR, VDE | UR, VDE |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
