Analog Devices Inc. AD7609BSTZ
- Part No.:
- AD7609BSTZ
- Manufacturer:
- Analog Devices Inc.
- Category:
- ADCs/DACs - Special Purpose
- Package:
- 64-LQFP
- Description:
- IC DAS/ADC 18BIT 200K 64LQFP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
AD7609BSTZ - 8-Channel 18-Bit Simultaneous Sampling ADC (DAS, LQFP-64)
AD7609BSTZ is a high-performance 18-bit simultaneous sampling analog-to-digital converter from Analog Devices (ADI). It integrates 8 input channels, internal analog front-end, and flexible input range options, making it ideal for data acquisition systems (DAS), power monitoring, and industrial control applications.
This page provides engineering-level product insight for selection and comparison. Always verify final design parameters using the official ADI datasheet.
Overview
AD7609BSTZ integrates 8 simultaneous sampling ADC channels with an internal analog front end, eliminating the need for external signal conditioning components in many designs. Each channel includes input clamp protection, filtering, and a high-precision ADC core.
It supports ±10V and ±5V input ranges and achieves high throughput with low power consumption. The simultaneous sampling architecture ensures accurate phase measurement across channels, which is critical in multi-phase systems such as power grid monitoring and motor control.
Key Advantages
Captures all 8 channels at the same instant for accurate phase and timing analysis.
Reduces external components with built-in clamp protection and filtering.
18-bit resolution enables precise signal measurement in industrial systems.
Supports ±10V and ±5V inputs for a wide range of signal types.
Feature Summary
18-bit SAR ADC architecture.
8 channels simultaneous sampling.
Selectable ±10V / ±5V analog input range.
Up to 200 kSPS per channel.
Package & Footprint

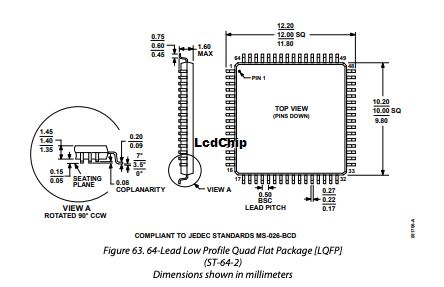

The AD7609BSTZ is available in a 64-lead LQFP package, suitable for high-density data acquisition systems.
- Separate analog and digital ground planes.
- Place decoupling capacitors close to supply pins.
- Optimize signal routing to minimize noise coupling.
Always refer to the official datasheet for exact mechanical dimensions.
Pin Functions
The device includes analog inputs, digital interface, and control pins.
Key Specifications
| Device Type | Simultaneous Sampling ADC |
|---|---|
| Resolution | 18-bit |
| Channels | 8 |
| Sampling Rate | 200 kSPS per channel |
| Input Range | ±10V / ±5V |
| Interface | Parallel / Serial |
| Package | LQFP-64 |
| Operating Temperature | -40°C to +85°C |
| Base Product | AD7609 |
Equivalent
Comparable ADCs with similar functionality include:
- AD7606BSTZ – ADI, 16-bit version with similar architecture
- AD7608BSTZ – ADI, 8-channel simultaneous ADC with lower resolution
- LTC2358-18 – Analog Devices, high-speed multi-channel ADC alternative
- ADS8588S – Texas Instruments, 16-bit 8-channel simultaneous sampling ADC
Check pin compatibility, resolution, and interface differences before replacement.
Manufacturer Information
Analog Devices (ADI) is a global leader in high-performance analog and mixed-signal ICs, widely used in industrial, automotive, and instrumentation systems.
- Expertise: Data converters, signal processing, power management
- Applications: Industrial automation, energy, healthcare
- Support: Extensive documentation and design tools
Applications
Typical use cases include:
Power Quality Monitoring
Multi-phase voltage/current measurement systems.
Industrial Data Acquisition
High-precision multi-channel signal capture.
Motor Control
Simultaneous current sensing for control loops.
Test & Measurement
Instrumentation requiring synchronized sampling.
Quality & Authenticity
- Full traceability and sourcing control
- Strict ESD-safe handling procedures
- Anti-counterfeit verification available
FAQ
What makes AD7609 different from AD7606?
Does it require external analog front-end?
Disclaimer
AD7609BSTZ Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Package/Case:
- 64-LQFP
- Packaging:
- Tray
- Product Status:
- Active
- Type:
- Data Acquisition System (DAS), ADC
- Number of Channels:
- 8
- Resolution (Bits):
- 18 b
- Sampling Rate (Per Second):
- 200k
- Data Interface:
- SPI, DSP
- Voltage Supply Source:
- Analog and Digital
- Voltage - Supply:
- 2.3V ~ 5V, 4.75V ~ 5.25V
- Operating Temperature:
- -40°C ~ 85°C
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 64-LQFP (10x10)
- Include Parts
- Popular Search
