Red Lion Controls ANT-MA741BBI001
- Part No.:
- ANT-MA741BBI001
- Manufacturer:
- Red Lion Controls
- Category:
- RF Antennas
- Package:
- Datasheet:
-
ANT-MA741BBI001.pdf
- Description:
- RF ANT 829MHZ/1.94GHZ DOME SMA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ANT-MA741BBI001 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Red Lion Controls
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Cellular
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 829MHz, 1.94GHz, 2.5GHz, 3.2GHz
- Frequency Range:
- 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz
- Antenna Type:
- Dome
- Number of Bands:
- 4
- VSWR:
- -
- Return Loss:
- -
- Gain:
- -
- Power - Max:
- -
- Features:
- Cable - 2.74m
- Termination:
- SMA Male
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Panel Mount
- Height (Max):
- 3.228" (82.00mm)
- Applications:
- 2G, 3G, 4G, LTE
| Image |  |
 |
|
|
|

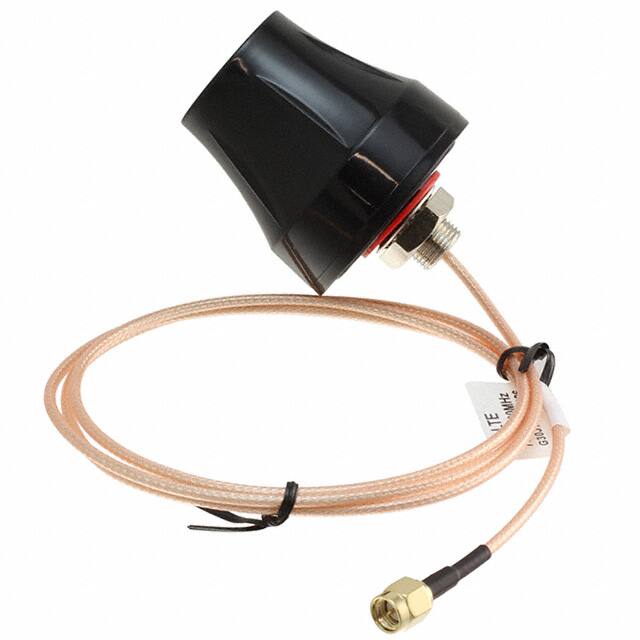

| Part Number | ANT-G30B108111 | ANT-MA710AABI001 | ANT-MA520ABC008 | ANT-DB1-RAF-RPSMA | ANT-GW11A153 |
| Manufacturer | Red Lion Controls | Red Lion Controls | Red Lion Controls | Red Lion Controls | Red Lion Controls |
| Series | Olympian | Pantheon | Hercules | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Obsolete | Active |
| RF Family/Standard | Cellular | Cellular, Navigation | Cellular | WiFi | Bluetooth, WiFi |
| Frequency Group | Wide Band | Wide Band | Wide Band | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 742MHz, 892MHz, 1.94GHz, 2.4GHz, 3.05GHz | 892MHz, 1.94GHz, 2.4GHz, 5.8GHz | 2.4GHz, 5.8GHz | 2.4GHz |
| Frequency Range | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 2.5GHz ~ 2.8GHz | 698MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.6GHz ~ 3.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 5GHz ~ 5.83GHz | - | 2.4GHz ~ 2.48GHz |
| Antenna Type | Whip, Straight | Dome | Dome | Whip, Straight | Whip, Tilt |
| Number of Bands | 4 | 5 | 4 | 2 | 1 |
| VSWR | 3 | 2 | - | 2 | - |
| Return Loss | - | - | -25dB | -10dB | -10dB |
| Gain | 1.2dBi, 3.2dBi, 2.5dBi, 1.5dBi | 3.2dBi | 3.8dBi | 2dBi, 4dBi | 2.3dBi |
| Power - Max | 5 W | - | 10 W | - | 1 W |
| Features | Cable - 1m | - | - | - | - |
| Termination | SMA Male | SMA Male | SMA Male | RP-SMA Male | RP-SMA Male |
| Ingress Protection | IP67, IP69K | IP67 | IP67 | - | IP65 |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Connector Mount | Connector Mount |
| Height (Max) | 1.890" (48.00mm) | 3.374" (85.70mm) | 1.142" (29.00mm) | 4.130" (104.90mm) | 3.307" (84.00mm) |
| Applications | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, IMT, LTE, UMTS, WCDMA | CDMA, HSPA, GLONASS, GPRS, GPS, GSM, LTE, UMTS | CDMA, EVDO, GPRS, GSM, UMTS, WCDMA | Wi-Fi, WLAN | Bluetooth, WLAN |
