ORIENT DISPLAY AMC1602AR-B-Y6NFDY-STY-S11

Name: AMC1602AR-B-Y6NFDY-STY-S11
Brand: ORIENT DISPLAY
SKU: AMC1602AR-B-Y6NFDY-STY-S11
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: AMC1602AR-B-Y6NFDY-STY-S11

Manufacturer:: ORIENT DISPLAY

Category:: LCD, OLED Character and Numeric

Package:

Datasheet:: AMC1602AR-B-Y6NFDY-STY-S11.pdf

Description:: 16X2 STN POSITIVE YG BACKLIGHT,

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

AMC1602AR-B-Y6NFDY-STY-S11 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: ORIENT DISPLAY

Series:: -

Packaging:: Box

Product Status:: Active

Number of Characters:: 32.0

Display Format:: 16 x 2

Character Format:: 5 x 8 Dots

Display Type:: STN - Super-Twisted Nematic

Display Mode:: Transflective

Character Size:: 2.95mm H x 5.55mm W

Outline L x W x H:: 80.00mm x 36.00mm x 14.00mm

Viewing Area:: 64.50mm L x 15.50mm W

Backlight:: LED - Yellow/Green

Voltage - Supply:: 4.5V ~ 5.5V

Dot Size:: 0.55mm W x 0.65mm H

Interface:: Parallel

Controller Type:: ST7066Uv22

Operating Temperature:: -20°C ~ 70°C

Text Color:: Black

Background Color:: Yellow/Green

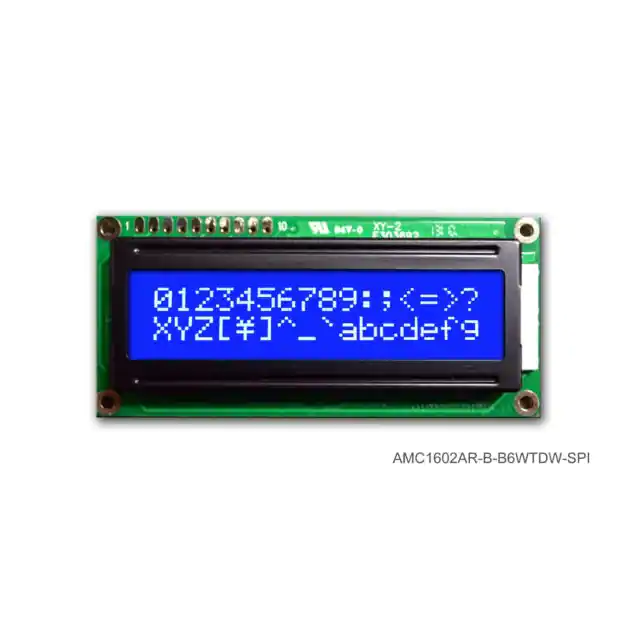

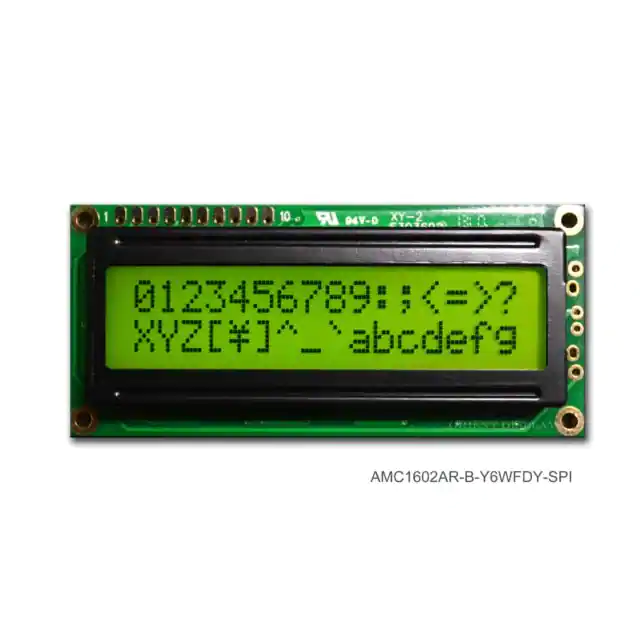

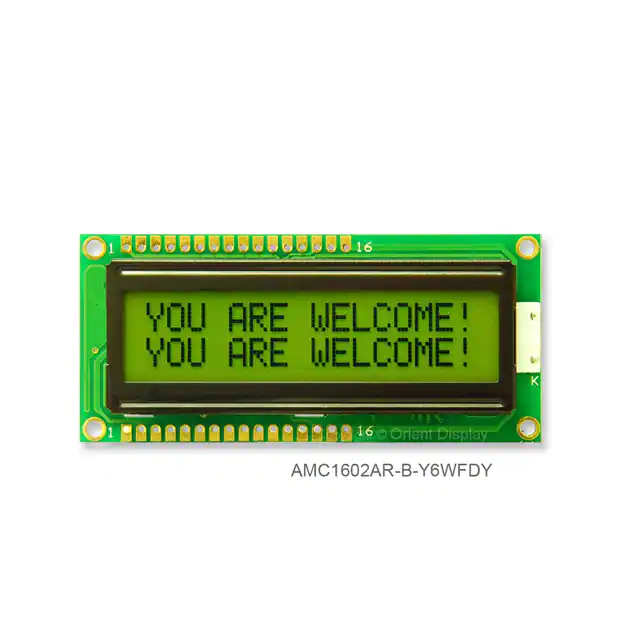

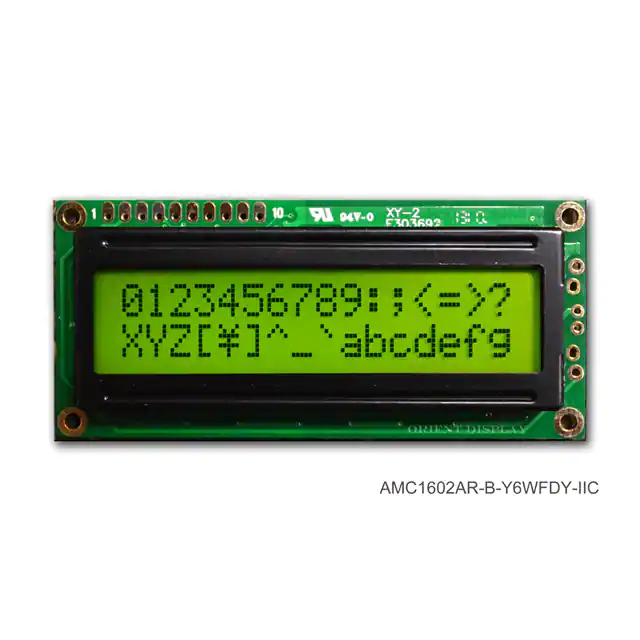

Part Number	AMC1602AR-B-Y6NFDY-STY-S11	AMC1602AR-B-Y6WFDY-I2C	AMC1602AR-B-Y6WFDY	AMC1602AR-B-Y6WFDY-SPI	AMC1602AR-B-B6WTDW-SPI
Manufacturer	ORIENT DISPLAY	ORIENT DISPLAY	ORIENT DISPLAY	ORIENT DISPLAY	ORIENT DISPLAY
Series	-	-	-	-	-
Packaging	Box	Box	Box	Box	Box
Product Status	Active	Active	Active	Active	Active
Number of Characters	32.0	32.0	32.0	32.0	32.0
Display Format	16 x 2	16 x 2	16 x 2	16 x 2	16 x 2
Character Format	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic
Display Mode	Transflective	Transflective	Transflective	Transflective	Transmissive
Character Size	2.95mm H x 5.55mm W	2.95mm H x 5.55mm W	2.95mm H x 5.55mm W	5.55mm H x 2.95mm W	5.55mm H x 2.95mm W
Outline L x W x H	80.00mm x 36.00mm x 14.00mm	80.00mm x 36.00mm x 14.00mm	80.00mm x 36.00mm x 14.00mm	80.00mm x 36.00mm x 14.00mm	80.00mm x 36.00mm x 14.00mm
Viewing Area	64.50mm L x 15.50mm W	64.50mm L x 15.50mm W	64.50mm L x 15.50mm W	64.50mm L x 15.50mm W	64.50mm L x 15.50mm W
Backlight	LED - Yellow/Green	LED - Yellow/Green	LED - Yellow/Green	LED - Yellow/Green	LED - White
Voltage - Supply	4.5V ~ 5.5V	5V	5V	4.5V ~ 5.5V	4.5V ~ 5.5V
Dot Size	0.55mm W x 0.65mm H	0.55mm W x 0.65mm H	0.55mm W x 0.65mm H	0.55mm W x 0.65mm H	0.55mm W x 0.65mm H
Interface	Parallel	I2C	Parallel	SPI	SPI
Controller Type	ST7066Uv22	AC780S	S6A0069	AC780S	AC780S
Operating Temperature	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C
Text Color	Black	Black	Black	Dark Blue	White
Background Color	Yellow/Green	Yellow/Green	Yellow/Green	Yellow/Green	Blue
