Orient Display AMC0802DR-B-Y6WRN
- Part No.:
- AMC0802DR-B-Y6WRN
- Manufacturer:
- Orient Display
- Category:
- LCD, OLED Character and Numeric
- Package:
- Datasheet:
-
AMC0802DR-B-Y6WRN.pdf
- Description:
- LCD COB CHAR 8X2 Y/G TRANSF
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AMC0802DR-B-Y6WRN Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Orient Display
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of Characters:
- 16.0
- Display Format:
- 8 x 2
- Character Format:
- 5 x 8 Dots
- Display Type:
- STN - Super-Twisted Nematic
- Display Mode:
- Reflective
- Character Size:
- 4.75mm H x 2.95mm W
- Outline L x W x H:
- 40.00mm x 35.50mm x 8.00mm
- Viewing Area:
- 30.40mm L x 13.90mm W
- Backlight:
- Without Backlight
- Voltage - Supply:
- 4.5V ~ 5.5V
- Dot Size:
- 0.55mm W x 0.55mm H
- Interface:
- Parallel, 8-Bit
- Controller Type:
- S6A0069
- Operating Temperature:
- -20°C ~ 70°C
- Text Color:
- Dark Blue
- Background Color:
- Yellow/Green

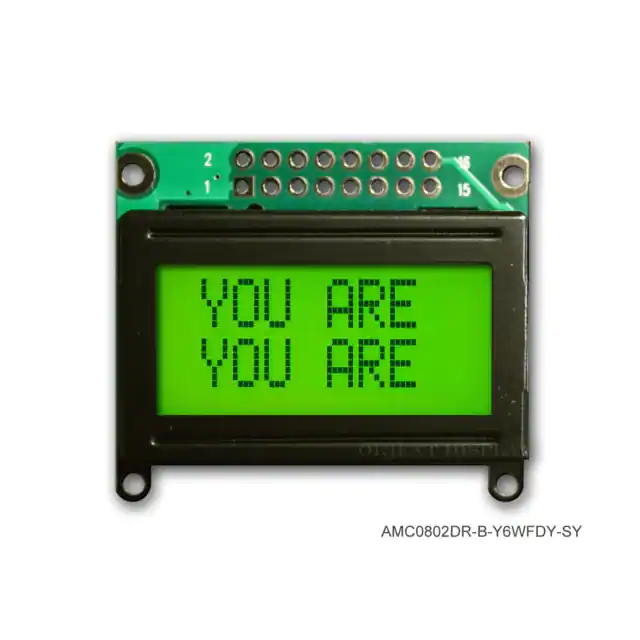

| Image |  |
 |
| Part Number | AMC0802DR-B-Y6WRN | AMC0802DR-B-Y6WFDY |
| Manufacturer | Orient Display | ORIENT DISPLAY |
| Series | - | - |
| Packaging | Box | Box |
| Product Status | Active | Active |
| Number of Characters | 16.0 | 16.0 |
| Display Format | 8 x 2 | 8 x 2 |
| Character Format | 5 x 8 Dots | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic |
| Display Mode | Reflective | Transflective |
| Character Size | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W |
| Outline L x W x H | 40.00mm x 35.50mm x 8.00mm | 40.00mm x 35.50mm x 14.00mm |
| Viewing Area | 30.40mm L x 13.90mm W | 30.40mm L x 13.90mm W |
| Backlight | Without Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Dot Size | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H |
| Interface | Parallel, 8-Bit | Parallel, 8-Bit |
| Controller Type | S6A0069 | S6A0069 |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C |
| Text Color | Dark Blue | Dark Blue |
| Background Color | Yellow/Green | Yellow/Green |
