Panasonic Electric Works ALQ105
- Part No.:
- ALQ105
- Manufacturer:
- Panasonic Electric Works
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY GEN PURPOSE SPDT 10A 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ALQ105 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- ALQ
- Packaging:
- Box
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 5VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 5 A
- Switching Voltage:
- 250VAC, 30VDC - Max
- Load - Max Switching:
- 1250VA, 150W
- Coil Current:
- 80 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- -
- Coil Insulation:
- Class B
- Must Operate Voltage:
- 3.75 VDC
- Must Release Voltage:
- 0.25 VDC
- Operate Time:
- 20 ms
- Release Time:
- 20 ms
- Operating Temperature:
- -40°C ~ 85°C
- Contact Material:
- Silver Nickel (AgNi)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

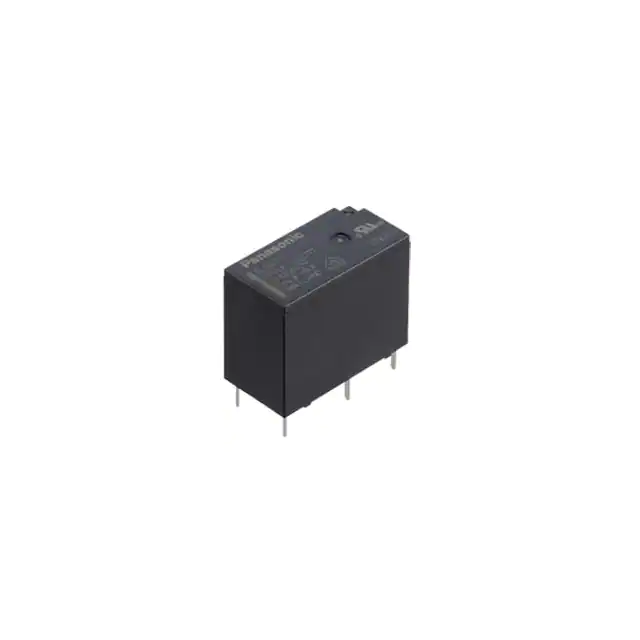

| Image |  |
 |
| Part Number | ALQ105 | ALQ105S |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works |
| Series | ALQ | ALQ |
| Packaging | Box | Tube |
| Product Status | Active | Active |
| Mounting Type | Through Hole | Through Hole |
| Coil Voltage | 5VDC | 5VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 5 A | 5 A |
| Switching Voltage | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max |
| Load - Max Switching | 1250VA, 150W | 1250VA, 150W |
| Coil Current | 80 mA | 80 mA |
| Coil Type | Non Latching | Non Latching |
| Features | - | - |
| Termination Style | PC Pin | PC Pin |
| Seal Rating | - | Sealed - Fully |
| Coil Insulation | Class B | Class B |
| Must Operate Voltage | 3.75 VDC | 3.75 VDC |
| Must Release Voltage | 0.25 VDC | 0.25 VDC |
| Operate Time | 20 ms | 20 ms |
| Release Time | 20 ms | 20 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Relay Type | General Purpose | General Purpose |
| Grade | - | - |
| Qualification | - | - |
