Abracon LLC AISM-1812H-2R7M
- Part No.:
- AISM-1812H-2R7M
- Manufacturer:
- Abracon LLC
- Category:
- Fixed Inductors
- Package:
- 1812 (4532 Metric)
- Description:
- FIXED INDUCTOR SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AISM-1812H-2R7M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- AISM-1812H
- Package/Case:
- 1812 (4532 Metric)
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Wirewound
- Material - Core:
- -
- Inductance:
- 2.7 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 800 mA
- Current - Saturation (Isat):
- -
- Shielding:
- Shielded
- DC Resistance (DCR):
- 200mOhm Max
- Q @ Freq:
- 10 @ 7.96MHz
- Frequency - Self Resonant:
- 60MHz
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Inductance Frequency - Test:
- 7.96 MHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 1812
- Size / Dimension:
- 0.165" L x 0.126" W (4.20mm x 3.20mm)
- Height - Seated (Max):
- 0.134" (3.40mm)
| Image |  |
|
 |
|
|

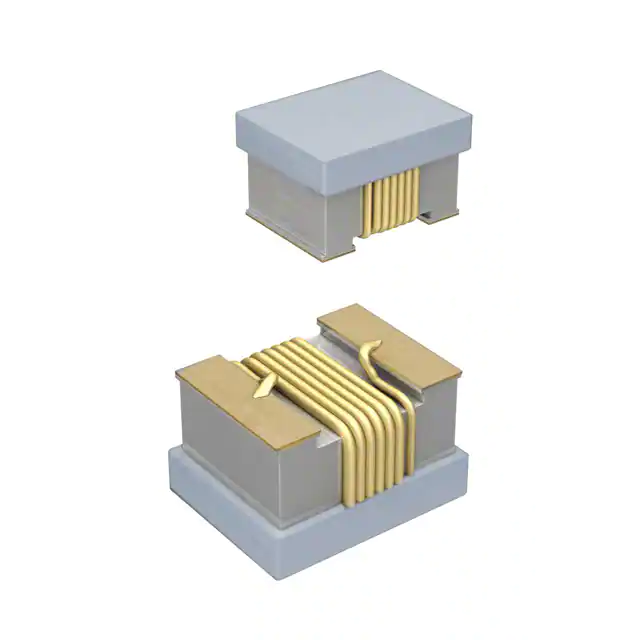

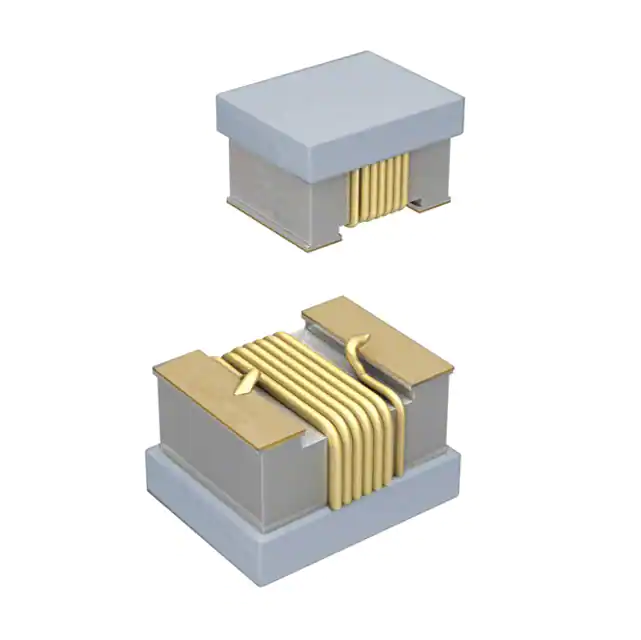

| Part Number | AISM-1210-R47M-T | AISM-1210-100K-T | AISM-1812-102K-T | AISM-1210-R10M-T | AISM-1210-390K-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | AISM-1210 | AISM-1210 | AISM-1812 | AISM-1210 | AISM-1210 |
| Package/Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1812 (4532 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Drum Core, Wirewound | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 470 nH | 10 µH | 1 mH | 100 nH | 39 µH |
| Tolerance | ±20% | ±10% | ±10% | ±20% | ±10% |
| Current Rating (Amps) | 450 mA | 150 mA | 30 mA | 450 mA | 65 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 500mOhm Max | 2.1Ohm Max | 40Ohm Max | 440mOhm Max | 6.4Ohm Max |
| Q @ Freq | 30 @ 25.2MHz | 30 @ 2.52MHz | 20 @ 252kHz | 28 @ 100MHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 220MHz | 30MHz | 2.5MHz | 700MHz | 16MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 25.2 MHz | 2.52 MHz | 252 kHz | 25.2 MHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 1210 | 1210 | 1812 | 1210 | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.110" (2.80mm) | 0.094" (2.40mm) | 0.094" (2.40mm) |
