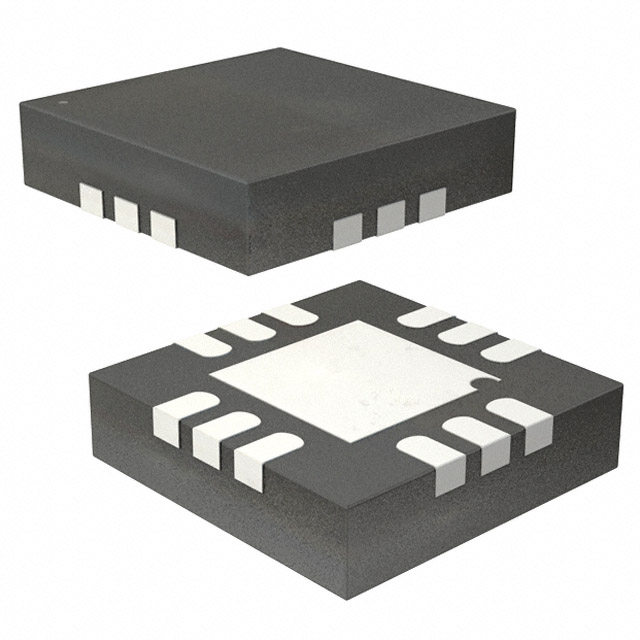

Analog Devices Inc. ADG772BCPZ-REEL7

Product attributes

Attribute value

Manufacturer:

Analog Devices Inc.

Series:

-

Packaging:

Tape & Reel (TR)

Product Status:

Active

Switch Circuit:

SPDT

Multiplexer/Demultiplexer Circuit:

2:1

Number of Circuits:

2

On-State Resistance (Max):

6.7Ohm (Typ)

Channel-to-Channel Matching (ΔRon):

40mOhm

Voltage - Supply, Single (V+):

2.7V ~ 3.6V

Voltage - Supply, Dual (V±):

-

Switch Time (Ton, Toff) (Max):

12.5ns, 9.5ns

-3db Bandwidth:

630MHz

Charge Injection:

0.5pC

Channel Capacitance (CS(off), CD(off)):

2.4pF, 6.9pF

Current - Leakage (IS(off)) (Max):

200pA

Crosstalk:

-90dB @ 1MHz

Operating Temperature:

-40°C ~ 85°C (TA)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

10-LFCSP-UQ (1.6x1.3)
