Analog Devices Inc. AD8452ASTZ
- Part No.:
- AD8452ASTZ
- Manufacturer:
- Analog Devices Inc.
- Category:
- Specialized ICs
- Package:
- 48-LQFP
- Description:
- IC AFE/PWM CONTROLLER 48LQFP
- Quantity:
Unit Price:$13.16
Ext Price:$13.16
- Payment:
- Shipping:
Product Details
AD8452ASTZ - Precision Battery Formation and Test AFE/PWM Controller
AD8452ASTZ from Analog Devices Inc. is a precision integrated analog front end, control-loop processor and PWM modulator for battery formation and test systems in a 48-lead LQFP.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
AD8452 integrates current and voltage measurement, error amplifiers, automatic constant-current/constant-voltage switchover and a programmable PWM modulator for bidirectional battery formation and test equipment.
Key Advantages
Combines precision sensing, CC/CV loop control and PWM generation in one device.
Provides low offset drift, high common-mode rejection and automatic loop switchover for accurate battery cycling.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Battery formation and test analog front end and PWM controller
Analog current and voltage sensing with PWM control outputs
PWM frequency 50 kHz to 300 kHz; -40 C to +85 C; 48-LQFP, 7 mm x 7 mm
48-LQFP

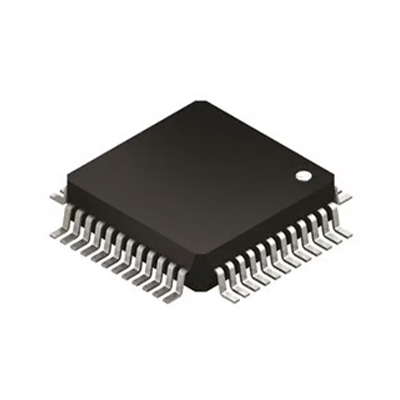

Package & Footprint
This ordering code uses the 48-LQFP package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| Current sense gain | 66 V/V |
|---|---|
| Voltage sense gain | 0.4 V/V |
| Common-mode rejection | 120 dB typical |
| Offset drift | Less than 0.6 uV/C |
| Gain drift | Less than 3 ppm/C |
| PWM frequency | 50 kHz to 300 kHz |
| Control modes | Constant current and constant voltage |
| Loop switchover | Automatic |
| Operating temperature | -40 C to +85 C |
| Package | 48-lead LQFP, 7 mm x 7 mm |
Replacement Considerations
AD8452ASTZ-RL is a related product in the library. Confirm electrical behavior, package, pinout, ordering media and configuration before substitution.
Similarity of family name or package does not establish drop-in compatibility.
Manufacturer Information
Manufacturer documentation and lifecycle information were checked for the exact order code.
Applications
Measures cell current and voltage while regulating charge and discharge power stages.
Supports accurate CC/CV cycling for production and laboratory test channels.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Battery formation and test analog front end and PWM controller
What package is used?
48-LQFP
Can the related part be substituted directly?
No. Validate all electrical, mechanical and configuration differences first.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
AD8452ASTZ Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Package/Case:
- 48-LQFP
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- AFE/PWM Controller
- Applications:
- Battery Test/Formation Systems
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 48-LQFP (7x7)
- Grade:
- -
- Qualification:
- -
