Analog Devices Inc. AD8337-EVALZ
- Part No.:
- AD8337-EVALZ
- Manufacturer:
- Analog Devices Inc.
- Category:
- Op Amp Evaluation Boards
- Package:
- Datasheet:
-
AD8337-EVALZ.pdf
- Description:
- EVAL BOARD FOR AD8337
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AD8337-EVALZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- X-AMP®
- Packaging:
- Box
- Product Status:
- Active
- Channels per IC:
- 1 - Single
- Amplifier Type:
- Voltage Feedback
- Output Type:
- Single-Ended
- Slew Rate:
- 625V/µs
- -3db Bandwidth:
- 280 MHz
- Current - Output / Channel:
- -
- Current - Supply (Main IC):
- 18.5 mA
- Voltage - Supply, Single/Dual (±):
- ±2.5V ~ 5V
- Utilized IC / Part:
- AD8337
- Contents:
- Board(s)
| Image |  |
 |
 |

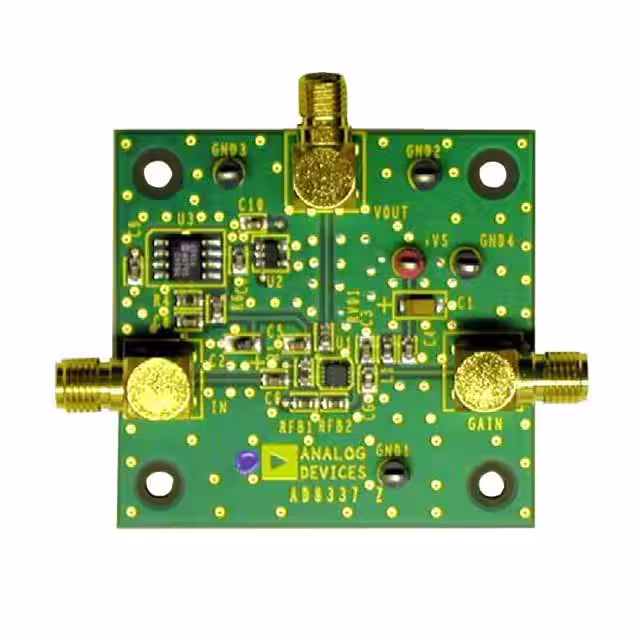

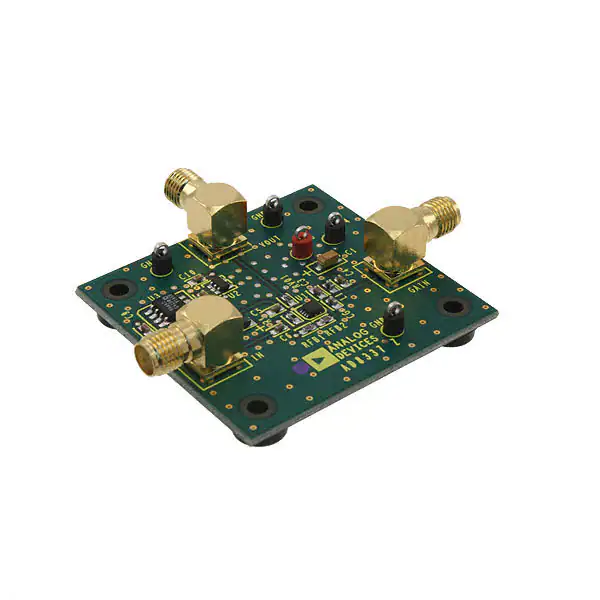

| Part Number | AD8337-EVALZ | AD8337-EVALZ-INV | AD8337-EVALZ-SS |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | X-AMP® | X-AMP® | X-AMP® |
| Packaging | Box | Box | Box |
| Product Status | Active | Active | Active |
| Channels per IC | 1 - Single | 1 - Single | 1 - Single |
| Amplifier Type | Voltage Feedback | Voltage Feedback | Voltage Feedback |
| Output Type | Single-Ended | Single-Ended | Single-Ended |
| Slew Rate | 625V/µs | 625V/µs | 625V/µs |
| -3db Bandwidth | 280 MHz | 280 MHz | 280 MHz |
| Current - Output / Channel | - | - | - |
| Current - Supply (Main IC) | 18.5 mA | 18.5 mA | 18.5 mA |
| Voltage - Supply, Single/Dual (±) | ±2.5V ~ 5V | ±2.5V ~ 5V | 5V ~ 10V |
| Utilized IC / Part | AD8337 | AD8337 | AD8337 |
| Contents | Board(s) | Board(s) | Board(s) |
