Analog Devices Inc. AD5520JSTZ
- Part No.:
- AD5520JSTZ
- Manufacturer:
- Analog Devices Inc.
- Category:
- Specialized ICs
- Package:
- 64-LQFP
- Description:
- IC SNGL PARAMETRIC MEASURE64LQFP
- Quantity:
Unit Price:$43.78
Ext Price:$43.78
- Payment:
- Shipping:
Product Details
AD5520JSTZ - Per-Pin Parametric Measurement Unit
AD5520JSTZ from Analog Devices is a single-channel per-pin parametric measurement unit and source measure unit in a 64-lead LQFP package for automatic test equipment.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
The AD5520 forces voltage while measuring current, or forces current while measuring voltage, at a device-under-test pin. Force/sense connections, a guard amplifier, clamp circuitry and window comparators support precision parametric testing.
Key Advantages
Combines force, sense, clamp and comparator functions for a tester channel.
Supports a +/-11 V force and measurement span and four programmed current ranges.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Single-channel per-pin parametric measurement and source measure unit
Parallel mode control with comparator clock and strobe; analog force and sense pins
+/-11 V voltage; +/-4 uA to +/-4 mA programmed current; 0 C to 70 C J grade
64-LQFP
Package & Footprint

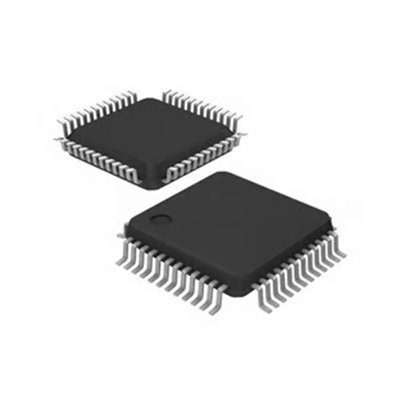

This ordering code uses the 64-LQFP package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| Function | Single-channel PPMU / source measure unit |
|---|---|
| Force and measured voltage span | +/-11 V |
| Programmable current ranges | +/-4 uA, +/-40 uA, +/-400 uA, +/-4 mA using external resistors |
| Extended current | Up to 6 mA without external driver; higher ranges use external driver |
| Force and measure modes | FIMV, FVMI, FVMV, FIMI and FNMV |
| Analog supply nominal | +15 V AVCC and -15 V AVEE under specified conditions |
| Digital supply nominal | 5 V DVDD under specified conditions |
| Comparator functions | Window comparators with selectable measurement source |
| Clamp functions | Programmable upper and lower voltage clamps |
| Operating temperature | 0 C to 70 C, J grade |
| Package | 64-lead LQFP, 10 mm x 10 mm, ST-64-2 |
| Ordering status | AD5520JSTZ listed as production by Analog Devices |
Replacement Considerations
No pin-compatible replacement was verified in the LCDChip product database. AD5522 is a dual-channel PPMU in an 80-lead TQFP, so electrical and footprint differences require engineering review.
Manufacturer Information
Analog Devices lists AD5520JSTZ as a production 64-lead LQFP variant; use the current AD5520 Rev. B data sheet and exact ordering records for design limits.
Applications
Per-pin or shared-channel parametric force and measurement.
Source and measure voltage or current at a DUT connection.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Single-channel per-pin parametric measurement and source measure unit
What package is used?
64-LQFP
Is a verified internal replacement available?
No exact internal replacement was verified. Review any candidate against the manufacturer documentation.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
AD5520JSTZ Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Package/Case:
- 64-LQFP
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Per-Pin Parametric Measurement Unit (PPMU)
- Applications:
- Automatic Test Equipment
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 64-LQFP (10x10)
- Grade:
- -
- Qualification:
- -
