AZ Displays ACM2004D-NLW-BBW-R

Name: ACM2004D-NLW-BBW-R
Brand: AZ Displays
SKU: ACM2004D-NLW-BBW-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: ACM2004D-NLW-BBW-R

Manufacturer:: AZ Displays

Category:: LCD, OLED Character and Numeric

Package:

Datasheet:: ACM2004D-NLW-BBW-R.pdf

Description:: DISPLAY LCD CHARACTER 20X4 TRANS

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

ACM2004D-NLW-BBW-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AZ Displays

Series:: ACM2004D

Packaging:: Box

Product Status:: Not For New Designs

Number of Characters:: 80.0

Display Format:: 20 x 4

Character Format:: 5 x 8 Dots

Display Type:: -

Display Mode:: -

Character Size:: 4.75mm H x 2.95mm W

Outline L x W x H:: 98.00mm x 60.00mm x 13.50mm

Viewing Area:: 76.00mm L x 25.20mm W

Backlight:: LED

Voltage - Supply:: 2.7V ~ 5.5V

Dot Size:: 0.55mm W x 0.55mm H

Interface:: -

Controller Type:: KS0066

Operating Temperature:: -

Text Color:: -

Background Color:: -

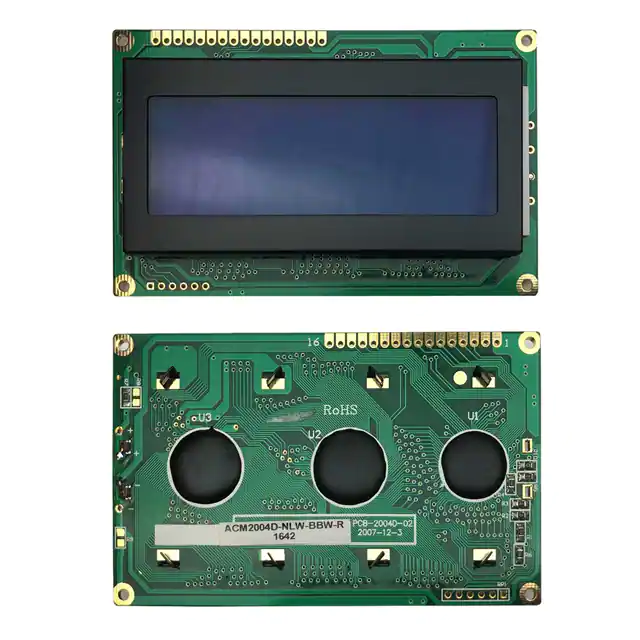

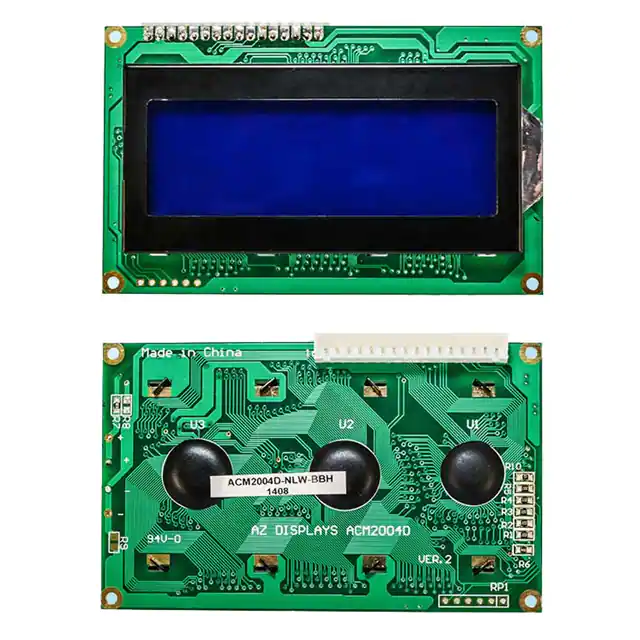

Part Number	ACM2004D-NLW-BBW-R	ACM2004D-FLW-FBW	ACM2004D-FLY-YBE	ACM2004D-FLY-YBW-B	ACM2004D-NLW-BBW
Manufacturer	AZ Displays	AZ Displays	AZ Displays	AZ Displays	AZ Displays
Series	ACM2004D	-	-	-	-
Packaging	Box	Box	Box	Box	Bulk
Product Status	Not For New Designs	Active	Active	Active	Active
Number of Characters	80.0	-	80.0	80.0	80.0
Display Format	20 x 4	20 x 4	20 x 4	20 x 4	20 x 4
Character Format	5 x 8 Dots	5 x 8 Dots	-	-	5 x 8 Dots
Display Type	-	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic
Display Mode	-	Transflective	Transflective	Transflective	Transmissive
Character Size	4.75mm H x 2.95mm W	4.75mm H x 2.95mm W	2.95mm H x 4.75mm W	2.95mm H x 4.75mm W	4.75mm H x 2.96mm W
Outline L x W x H	98.00mm x 60.00mm x 13.50mm	98.00mm x 60.00mm x 14.00mm	98.00mm x 60.00mm x 14.00mm	98.00mm x 60.00mm x 14.00mm	98.00mm x 60.00mm x 14.00mm
Viewing Area	76.00mm L x 25.20mm W	76.00mm L x 25.20mm W	76.00mm L x 25.20mm W	76.00mm L x 25.20mm W	76.00mm L x 25.20mm W
Backlight	LED	LED	LED - Yellow/Green	LED - Yellow/Green	LED - White
Voltage - Supply	2.7V ~ 5.5V	2.7V ~ 5.5V	2.7V ~ 5.5V	2.7V ~ 5.5V	2.7V ~ 5.5V
Dot Size	0.55mm W x 0.55mm H	0.55mm W x 0.55mm H	0.55mm W x 0.55mm H	0.55mm W x 0.55mm H	0.55mm W x 0.55mm H
Interface	-	-	-	-	Parallel, 8-Bit
Controller Type	KS0066	ST7066U-0A	ST7066U-0A	ST7066U-0A	ST7066U-0A
Operating Temperature	-	-20°C ~ 70°C	-30°C ~ 80°C	-20°C ~ 70°C	-20°C ~ 70°C
Text Color	-	-	Yellow/Green	Yellow/Green	Blue
Background Color	-	-	-	-	-
