AZ Displays ACM1602K-NLW-BBW
- Part No.:
- ACM1602K-NLW-BBW
- Manufacturer:
- AZ Displays
- Category:
- LCD, OLED Character and Numeric
- Package:
- Datasheet:
-
ACM1602K-NLW-BBW.pdf
- Description:
- DISPLAY LCD CHARACTER 16X2 MONOC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ACM1602K-NLW-BBW Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AZ Displays
- Series:
- ACM1602K(3.8V)
- Packaging:
- Box
- Product Status:
- Active
- Number of Characters:
- 32.0
- Display Format:
- 16 x 2
- Character Format:
- 5 x 8 Dots
- Display Type:
- -
- Display Mode:
- -
- Character Size:
- 5.23mm H x 3.00mm W
- Outline L x W x H:
- 80.00mm x 36.00mm x 13.50mm
- Viewing Area:
- 64.50mm L x 16.40mm W
- Backlight:
- LED
- Voltage - Supply:
- 2.7V ~ 5.25V
- Dot Size:
- 0.56mm W x 0.61mm H
- Interface:
- -
- Controller Type:
- SPLC780D1
- Operating Temperature:
- -
- Text Color:
- -
- Background Color:
- -
| Image |  |
|
 |
 |
 |

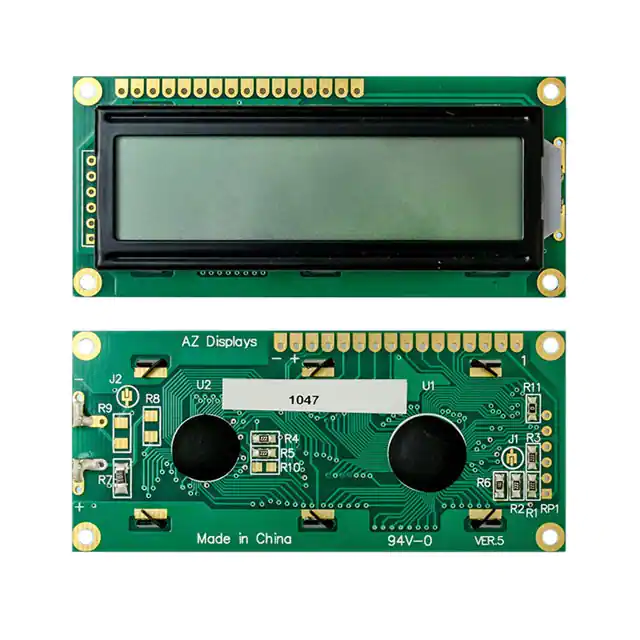

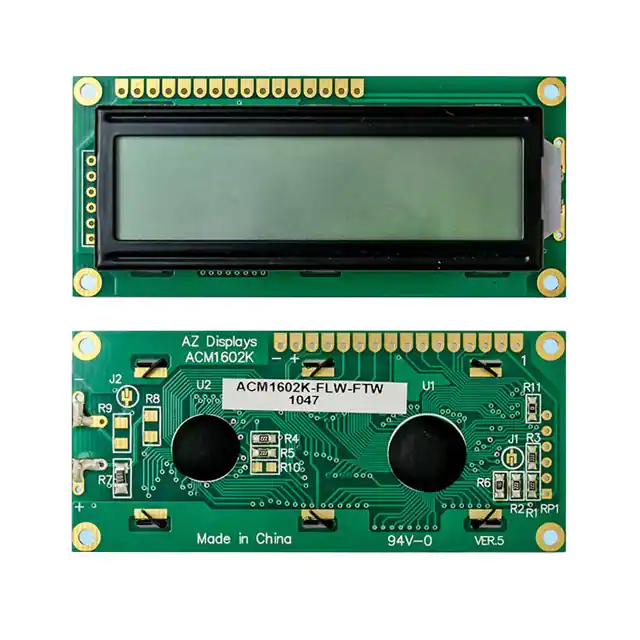

| Part Number | ACM1602KR-FL-YBW | ACM1602K-NLW-BBW | ACM1602K-FL-GTW | ACM1602KC-NLW-BBW-R | ACM1602K-FL-YBH |
| Manufacturer | AZ Displays | AZ Displays | AZ Displays | AZ Displays | AZ Displays |
| Series | ACM1602K(3.8V) | ACM1602K(3.8V) | ACM1602K(3.8V) | - | ACM1602K(3.8V) |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of Characters | 32.0 | 32.0 | 32.0 | 32.0 | - |
| Display Format | 16 x 2 | 16 x 2 | 16 x 2 | 16 x 2 | 16 x 2 |
| Character Format | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic | - | STN - Super-Twisted Nematic, TN - Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Display Mode | Transflective | - | Reflective, Transflective, Transmissive | Transmissive | Transflective |
| Character Size | 5.23mm H x 3.00mm W | 5.23mm H x 3.00mm W | 5.23mm H x 3.00mm W | 5.23mm H x 3.00mm W | 5.23mm H x 3.00mm W |
| Outline L x W x H | 80.00mm x 36.00mm x 13.50mm | 80.00mm x 36.00mm x 13.50mm | 80.00mm x 36.00mm x 13.50mm | 80.00mm x 36.00mm x 12.50mm | 80.00mm x 36.00mm x 13.50mm |
| Viewing Area | 64.50mm L x 16.40mm W | 64.50mm L x 16.40mm W | 64.50mm L x 16.40mm W | 64.50mm L x 16.40mm W | 64.50mm L x 16.40mm W |
| Backlight | LED - Yellow/Green | LED | LED | LED - White | LED |
| Voltage - Supply | 4.75V ~ 5.25V | 2.7V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Dot Size | 0.56mm W x 0.61mm H | 0.56mm W x 0.61mm H | 0.56mm W x 0.61mm H | 0.56mm W x 0.61mm H | 0.56mm W x 0.61mm H |
| Interface | - | - | - | - | - |
| Controller Type | SPLC780D1 | SPLC780D1 | SPLC780D1 | ST7066U-0A | SPLC780D1 |
| Operating Temperature | -20°C ~ 70°C | - | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Text Color | - | - | - | - | - |
| Background Color | - | - | - | - | - |
