WAGO Corporation 859-304
- Part No.:
- 859-304
- Manufacturer:
- WAGO Corporation
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
859-304.pdf
- Description:
- RELAY GEN PURPOSE SPDT 5A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
859-304 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- WAGO Corporation
- Series:
- 859
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- DIN Rail
- Coil Voltage:
- 24VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 5 A
- Switching Voltage:
- 250VAC - Max
- Load - Max Switching:
- 1250VA
- Coil Current:
- 10 mA
- Coil Type:
- Non Latching
- Features:
- Lighted Indicator
- Termination Style:
- Spring Terminal
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 20.4 VDC
- Must Release Voltage:
- -
- Operate Time:
- 15 ms
- Release Time:
- 25 ms
- Operating Temperature:
- -40°C ~ 50°C
- Contact Material:
- Silver Tin Oxide (AgSnO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

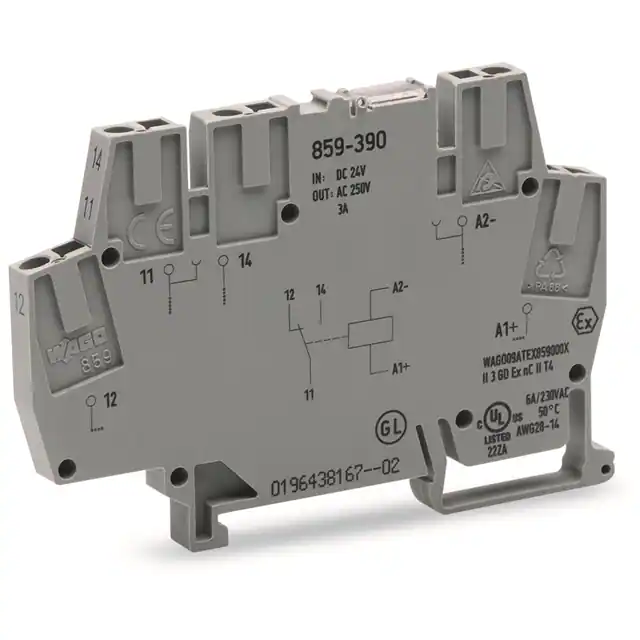

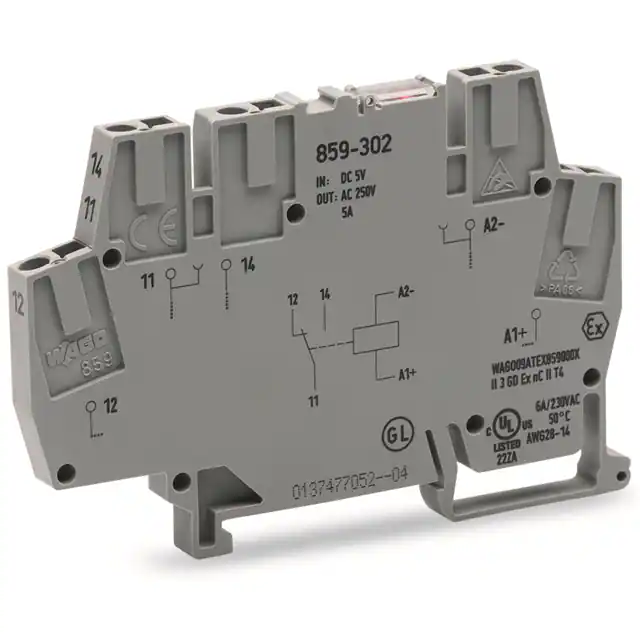

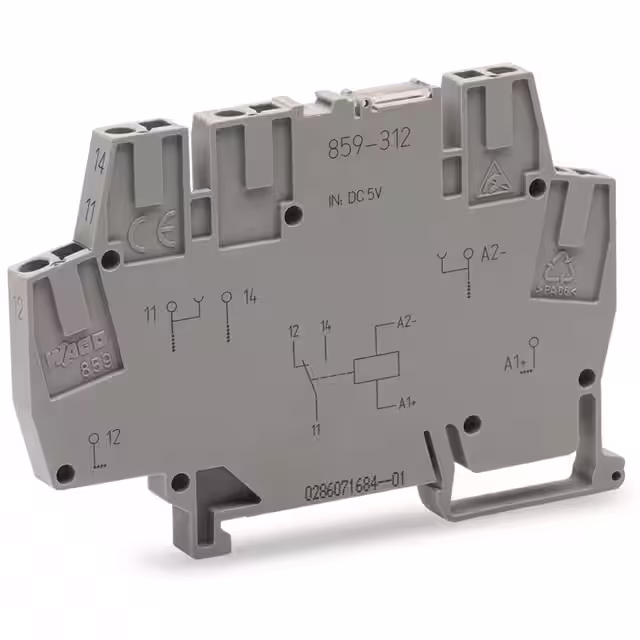

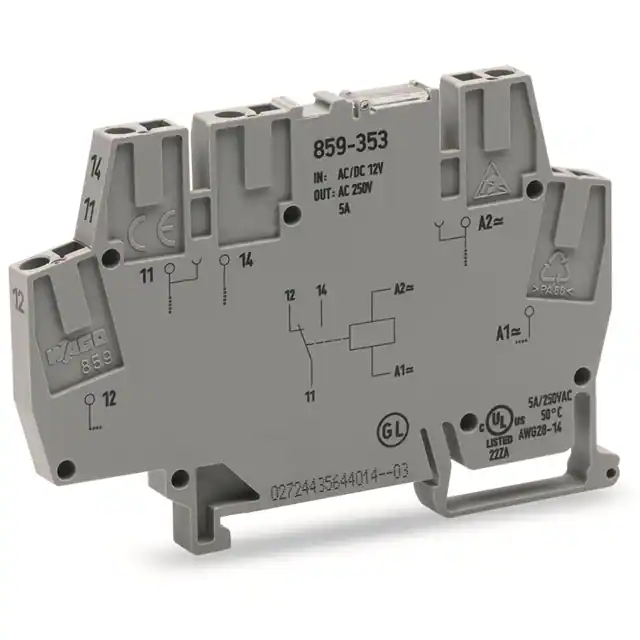

| Part Number | 859-304 | 859-390 | 859-302 | 859-357 | 859-314 |
| Manufacturer | WAGO Corporation | WAGO Corporation | WAGO Corporation | WAGO Corporation | WAGO Corporation |
| Series | 859 | 859 | 859 | 859 | 859 |
| Packaging | Bulk | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | DIN Rail | DIN Rail | DIN Rail | DIN Rail | DIN Rail |
| Coil Voltage | 24VDC | 24VDC | 5VDC | 115VAC/DC | 24VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 5 A | 5 A | 5 A | 5 A | 5 A |
| Switching Voltage | 250VAC - Max | 250VAC - Max | 250VAC - Max | 250VAC - Max | 250VAC - Max |
| Load - Max Switching | 1250VA | 1250VA | 1250VA | 1250VA | 1250VA |
| Coil Current | 10 mA | 12 mA | 31 mA | 3.5 mA | 10 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | Lighted Indicator | Lighted Indicator | Lighted Indicator | Lighted Indicator | Lighted Indicator |
| Termination Style | Spring Terminal | Spring Terminal | Spring Terminal | Spring Terminal | Spring Terminal |
| Seal Rating | - | - | - | - | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 20.4 VDC | - | - | - | - |
| Must Release Voltage | - | - | - | - | - |
| Operate Time | 15 ms | 6 ms | 15 ms | 15 ms | 6 ms |
| Release Time | 25 ms | 6 ms | 25 ms | 25 ms | 6 ms |
| Operating Temperature | -40°C ~ 50°C | -40° ~ 70°C | -40°C ~ 50°C | -40°C ~ 50°C | -40°C ~ 50°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Nickel (AgNi), Gold (Au) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
