TE Connectivity Potter & Brumfield Relays 8-1462039-3

Name: 8-1462039-3
Brand: TE Connectivity Potter & Brumfield Relays
SKU: 8-1462039-3
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 8-1462039-3

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Category:: Power Relays, Over 2 Amps

Package:

Description:: RELAY GEN PURPOSE DPDT 5A 5V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

8-1462039-3 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Series:: IM, AXICOM

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Through Hole

Coil Voltage:: 5VDC

Contact Form:: DPDT (2 Form C)

Contact Rating (Current):: 5 A

Switching Voltage:: 250VAC, 220VDC - Max

Load - Max Switching:: 62.5VA, 60W

Coil Current:: 28.1 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: PC Pin

Seal Rating:: Sealed - Hermetically

Coil Insulation:: -

Must Operate Voltage:: 3.75 VDC

Must Release Voltage:: 0.5 VDC

Operate Time:: 3 ms

Release Time:: 3 ms

Operating Temperature:: -40°C ~ 85°C

Contact Material:: Silver Nickel (AgNi), Gold (Au)

Relay Type:: Telecom

Grade:: -

Qualification:: -

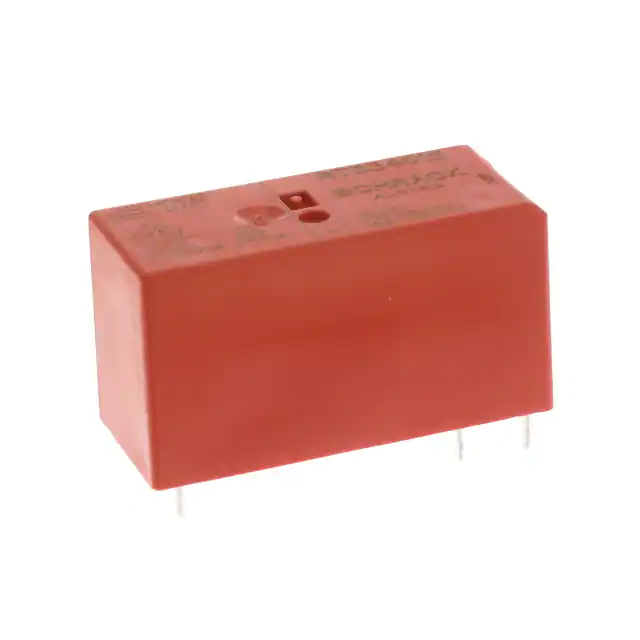

Part Number	8-1462039-3	8-1393238-4	8-1393239-4	8-1415536-6	8-1415899-5
Manufacturer	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays
Series	IM, AXICOM	RT1, SCHRACK	RT1 Bistable, SCHRACK	41083 3mm, SCHRACK	RZ, SCHRACK
Packaging	Bulk	Tube	Tube	Tray	Tube
Product Status	Active	Active	Active	Active	Active
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Coil Voltage	5VDC	15VDC	3VDC	24VDC	24VDC
Contact Form	DPDT (2 Form C)	SPST-NO (1 Form A)	SPDT (1 Form C)	SPST-NO (DM) (1 Form X)	SPDT (1 Form C)
Contact Rating (Current)	5 A	16 A	16 A	16 A	12 A
Switching Voltage	250VAC, 220VDC - Max	400VAC - Max	400VAC - Max	400VAC - Max	400VAC - Max
Load - Max Switching	62.5VA, 60W	6400VA	6400VA	6400VA	4800VA
Coil Current	28.1 mA	-	200 mA	15 mA	16.7 mA
Coil Type	Non Latching	Non Latching	Latching, Dual Coil	Non Latching	Non Latching
Features	-	-	-	-	-
Termination Style	PC Pin	PC Pin	PC Pin	PC Pin, Quick Connect - 0.250" (6.3mm)	PC Pin
Seal Rating	Sealed - Hermetically	Sealed - Fully	Sealed - Flux Protection	-	Sealed - Flux Protection
Coil Insulation	-	Class F	Class F	-	Class F
Must Operate Voltage	3.75 VDC	10.5 VDC	2.1 VDC	15.8 VDC	16.8 VDC
Must Release Voltage	0.5 VDC	1.5 VDC	-	1.8 VDC	2.4 VDC
Operate Time	3 ms	8 ms	10 ms	-	8 ms
Release Time	3 ms	6 ms	10 ms	-	6 ms
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-20°C ~ 85°C	-40°C ~ 85°C
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi)	Silver Nickel (AgNi)	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Relay Type	Telecom	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
