TE Connectivity Potter & Brumfield Relays 8-1393812-1

Name: 8-1393812-1
Brand: TE Connectivity Potter & Brumfield Relays
SKU: 8-1393812-1
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 8-1393812-1

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Category:: Signal Relays, Up to 2 Amps

Package:

Description:: RELAY GENERAL PURPOSE 6PST 2A

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

8-1393812-1 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Series:: -

Packaging:: Bulk

Product Status:: Obsolete

Mounting Type:: Socketable

Coil Voltage:: -

Contact Form:: 6PST-NO (6 Form A)

Contact Rating (Current):: 2 A

Switching Voltage:: 125VAC, 150VDC - Max

Load - Max Switching:: -

Coil Current:: -

Coil Type:: Non Latching

Features:: -

Termination Style:: Plug In

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: -

Must Release Voltage:: -

Operate Time:: 16 ms

Release Time:: 2 ms

Operating Temperature:: -40°C ~ 70°C

Contact Material:: Silver (Ag), Gold (Au)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

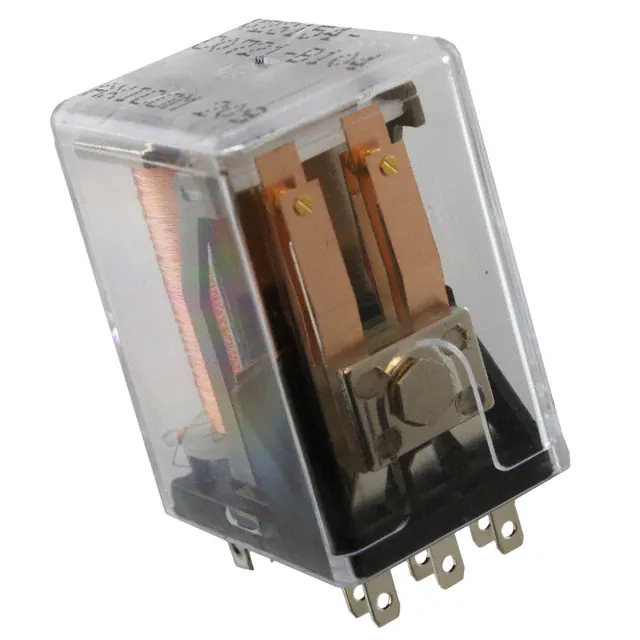

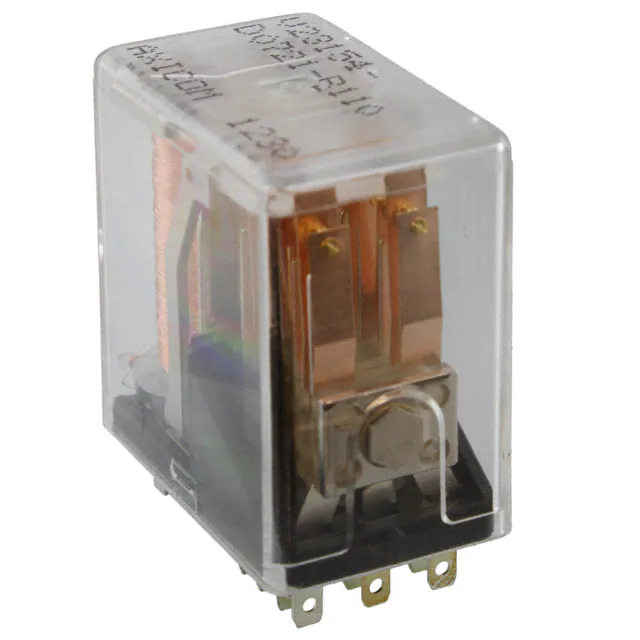

Part Number	8-1393806-1	8-1393806-6	8-1393806-7	8-1393806-0	8-1393808-3
Manufacturer	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays
Series	V23154, AXICOM	V23154, AXICOM	V23154, AXICOM	V23154, AXICOM	V23154, AXICOM
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Obsolete	Obsolete	Active	Obsolete
Mounting Type	Socketable	Socketable	Socketable	Socketable	Socketable
Coil Voltage	20VDC	24VDC	24VDC	20VDC	24VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	-	4PDT (4 Form C)
Contact Rating (Current)	2 A	2 A	200 mA	-	2 A
Switching Voltage	125VAC, 150VDC - Max	125VAC, 150VDC - Max	30VAC, 36VDC - Max	-	125VAC, 150VDC - Max
Load - Max Switching	250VA, 300W	250VA, 300W	-	-	250VA, 300W
Coil Current	36.3 mA	27 mA	27 mA	36.4 mA	27 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	-	-	-	-	-
Termination Style	Plug In	Plug In	Plug In	Plug In	Plug In
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	11.9 VDC	11 VDC	11 VDC	-	14.5 VDC
Must Release Voltage	-	-	-	-	-
Operate Time	7.5 ms	7.5 ms	7.5 ms	7.5 ms	7.5 ms
Release Time	3 ms	3 ms	3 ms	3 ms	3 ms
Operating Temperature	-40°C ~ 70°C	-40°C ~ 70°C	-40°C ~ 70°C	-40°C ~ 70°C	-40°C ~ 70°C
Contact Material	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
