TE Connectivity Potter & Brumfield Relays 7-1415899-6
- Part No.:
- 7-1415899-6
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
7-1415899-6.pdf
- Description:
- RELAY GEN PURPOSE SPDT 16A 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
7-1415899-6 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Series:
- RZ, SCHRACK
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 5VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 16 A
- Switching Voltage:
- 400VAC - Max
- Load - Max Switching:
- 6400VA
- Coil Current:
- 83.3 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- -
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 3.5 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 8 ms
- Release Time:
- 6 ms
- Operating Temperature:
- -40°C ~ 85°C
- Contact Material:
- Silver Nickel (AgNi)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
|
 |
|

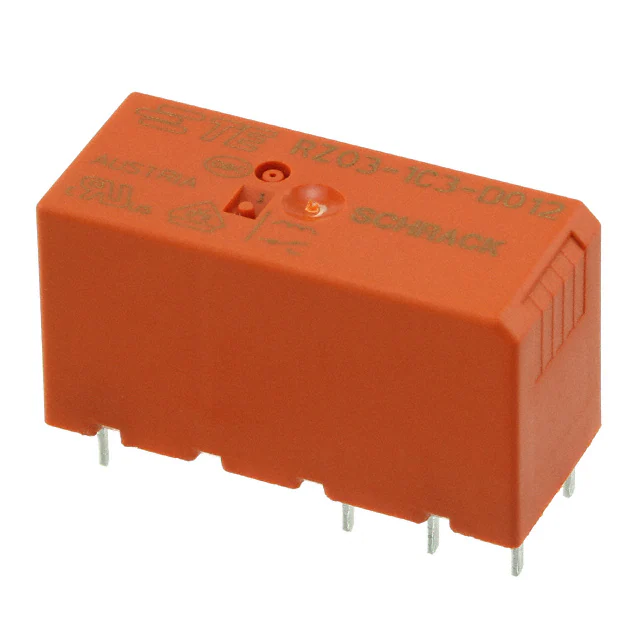

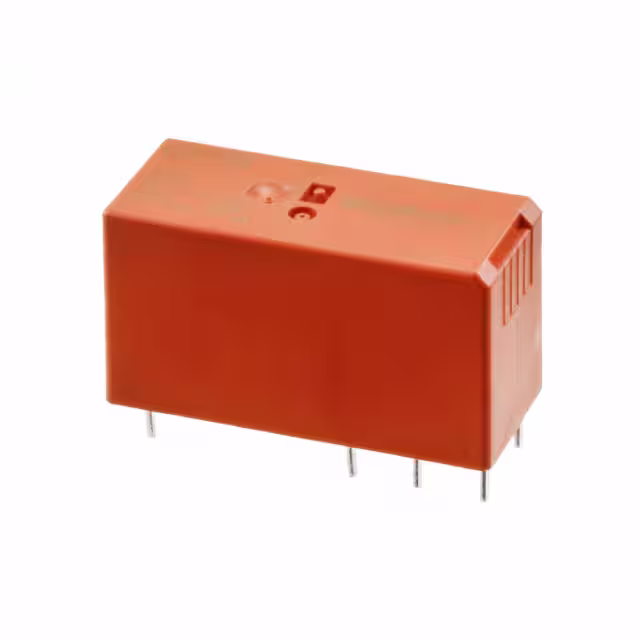

| Part Number | 7-1415899-6 | 7-1415899-7 | 7-1462039-2 | 7-1393239-7 | 7-1393243-3 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Series | RZ, SCHRACK | RZ, SCHRACK | IM, AXICOM | RT1 Bistable, SCHRACK | RT2, SCHRACK |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 5VDC | 12VDC | 24VDC | 3VDC | 60VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | DPDT (2 Form C) | SPDT (1 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 16 A | 16 A | 5 A | 16 A | 8 A |
| Switching Voltage | 400VAC - Max | 400VAC - Max | 250VAC, 220VDC - Max | 400VAC - Max | 400VAC - Max |
| Load - Max Switching | 6400VA | 6400VA | 62.5VA, 60W | 6400VA | 3200VA |
| Coil Current | 83.3 mA | 33.3 mA | 8.3 mA | 143 mA | 7 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Latching, Single Coil | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | - | Sealed - Flux Protection | Sealed - Hermetically | Sealed - Flux Protection | Sealed - Flux Protection |
| Coil Insulation | Class F | Class F | - | Class F | Class F |
| Must Operate Voltage | 3.5 VDC | 8.4 VDC | 18 VDC | 2.1 VDC | 42 VDC |
| Must Release Voltage | 0.5 VDC | 1.2 VDC | 2.4 VDC | - | 6 VDC |
| Operate Time | 8 ms | 8 ms | 3 ms | 10 ms | 8 ms |
| Release Time | 6 ms | 6 ms | 3 ms | 10 ms | 6 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Relay Type | General Purpose | General Purpose | Telecom | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
