TE Connectivity Potter & Brumfield Relays 7-1393807-5

Name: 7-1393807-5
Brand: TE Connectivity Potter & Brumfield Relays
SKU: 7-1393807-5
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 7-1393807-5

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Category:: Signal Relays, Up to 2 Amps

Package:

Description:: RELAY GEN PURPOSE 4PDT 2A 16V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

7-1393807-5 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Series:: -

Packaging:: Bulk

Product Status:: Obsolete

Mounting Type:: Socketable

Coil Voltage:: 16VDC

Contact Form:: 4PDT (4 Form C)

Contact Rating (Current):: 2 A

Switching Voltage:: 125VAC, 150VDC - Max

Load - Max Switching:: -

Coil Current:: 41 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: Plug In

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: 15.2 VDC

Must Release Voltage:: -

Operate Time:: 7.5 ms

Release Time:: 3 ms

Operating Temperature:: -40°C ~ 70°C

Contact Material:: Silver (Ag), Gold (Au)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

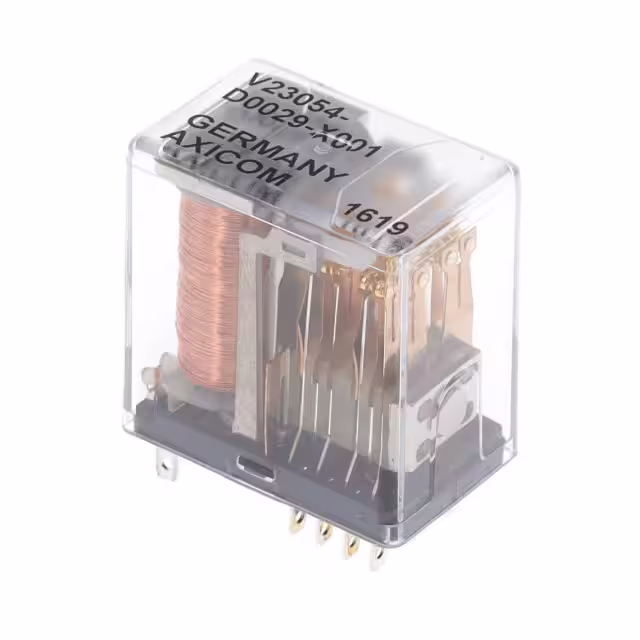

Part Number	7-1393812-6	7-1393806-8	7-1393779-2	7-1393806-3	7-1393813-9
Manufacturer	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays
Series	V23054, AXICOM	V23154, AXICOM	T81	V23154, AXICOM	V23054, AXICOM
Packaging	Bulk	Bulk	Tube	Bulk	Bulk
Product Status	Active	Obsolete	Active	Obsolete	Active
Mounting Type	Socketable	Socketable	Through Hole	Socketable	Socketable
Coil Voltage	-	20VDC	24VDC	15VDC	24VDC
Contact Form	-	DPDT (2 Form C)	SPDT (1 Form C)	DPDT (2 Form C)	-
Contact Rating (Current)	-	2 A	1 A	2 A	-
Switching Voltage	-	125VAC, 150VDC - Max	125VAC, 60VDC - Max	125VAC, 150VDC - Max	-
Load - Max Switching	-	250VA, 300W	-	250VA, 300W	-
Coil Current	-	36.3 mA	18.8 mA	46.1 mA	38.1 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	-	-	-	-	-
Termination Style	Plug In	Plug In	PC Pin	Plug In	Plug In
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	-	8.9 VDC	16.8 VDC	9.1 VDC	-
Must Release Voltage	-	-	1.2 VDC	-	-
Operate Time	16 ms	7.5 ms	5 ms	7.5 ms	16 ms
Release Time	2 ms	3 ms	7 ms	3 ms	2 ms
Operating Temperature	-40°C ~ 70°C	-40°C ~ 70°C	-30°C ~ 60°C	-40°C ~ 70°C	-40°C ~ 70°C
Contact Material	-	Silver (Ag), Gold (Au)	Silver Palladium (AgPd), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Relay Type	General Purpose	General Purpose	Telecom	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
