Finder Relays, Inc. 60.13.8.230.0030

Name: 60.13.8.230.0030
Brand: Finder Relays, Inc.
SKU: 60.13.8.230.0030
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 60.13.8.230.0030

Manufacturer:: Finder Relays, Inc.

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: 60.13.8.230.0030.pdf

Description:: RELAY GEN PURPOSE 3PDT 10A 230V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

60.13.8.230.0030 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Finder Relays, Inc.

Series:: 60

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Socketable

Coil Voltage:: 230VAC

Contact Form:: 3PDT (3 Form C)

Contact Rating (Current):: 10 A

Switching Voltage:: 400VAC - Max

Load - Max Switching:: 4000VA

Coil Current:: 10.5 mA

Coil Type:: Non Latching

Features:: Lighted Indicator

Termination Style:: Plug In, 11 Pin (Octal)

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: 184 VAC

Must Release Voltage:: 46 VAC

Operate Time:: 11 ms

Release Time:: 4 ms

Operating Temperature:: -40°C ~ 70°C

Contact Material:: Silver Nickel (AgNi)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

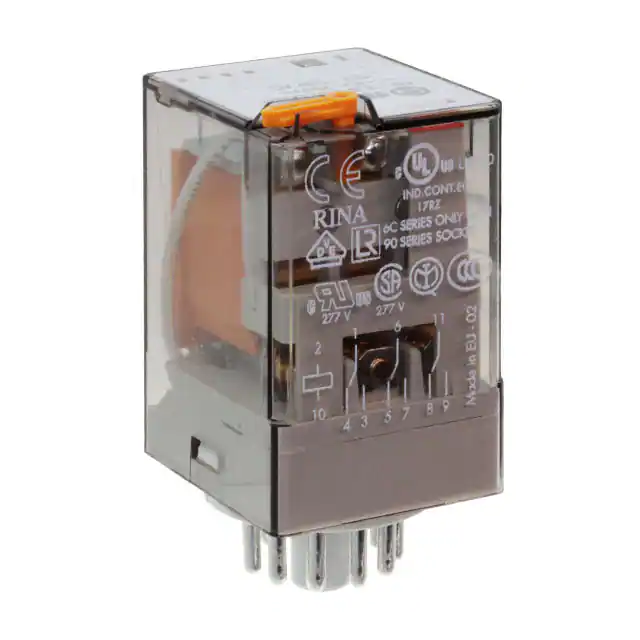

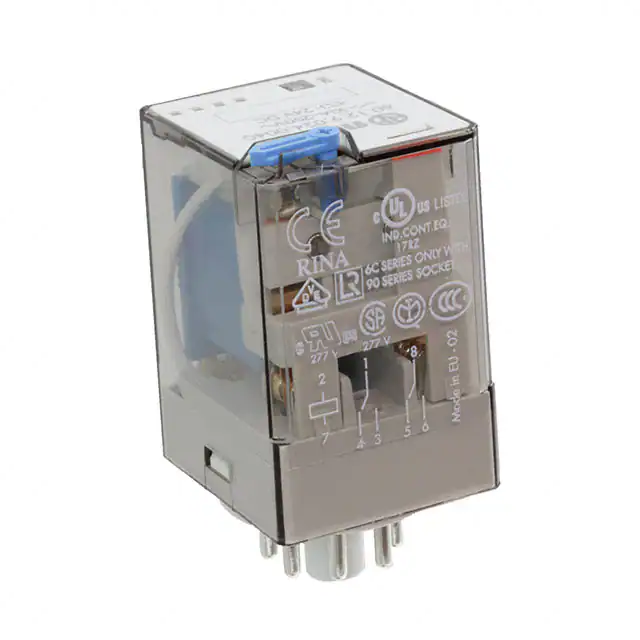

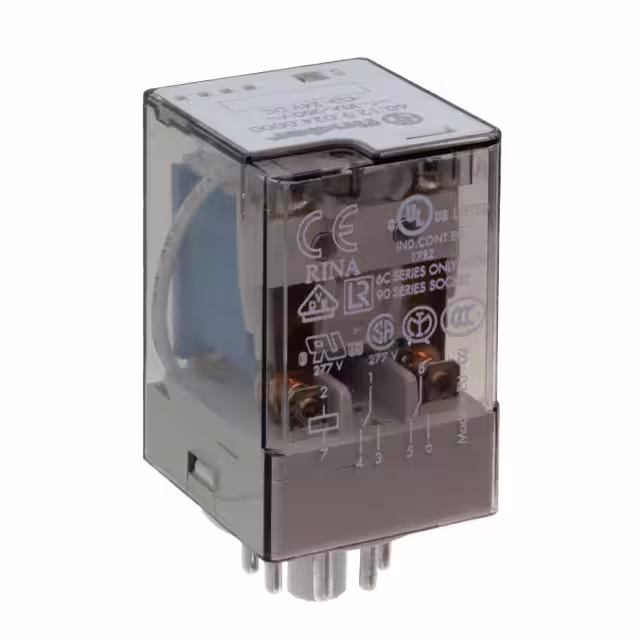

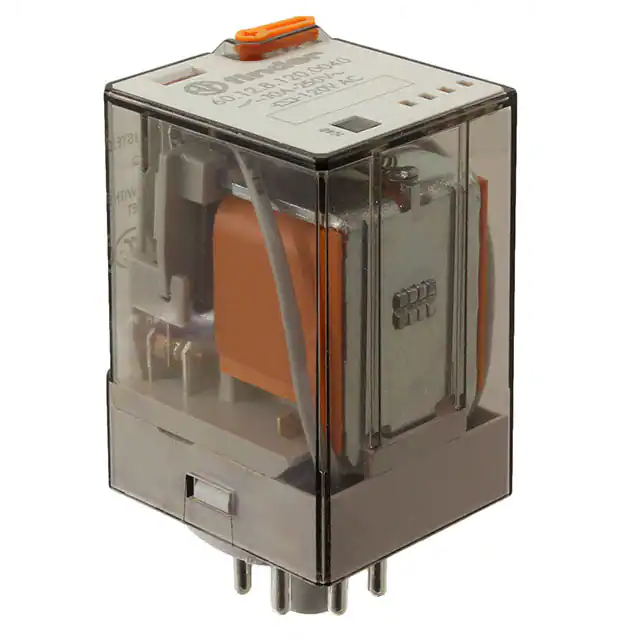

Part Number	60.13.8.120.0040	60.12.8.120.0040	60.12.9.024.0040	60.12.8.024.0040	60.13.9.024.0040
Manufacturer	Finder Relays, Inc.	Finder Relays, Inc.	Finder Relays, Inc.	Finder Relays, Inc.	Finder Relays, Inc.
Series	60	60	60	60	60
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Mounting Type	Socketable	Socketable	Socketable	Socketable	Socketable
Coil Voltage	120VAC	120VAC	24VDC	24VAC	24VDC
Contact Form	3PDT (3 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	3PDT (3 Form C)
Contact Rating (Current)	10 A	10 A	10 A	10 A	10 A
Switching Voltage	400VAC - Max	400VAC - Max	400VAC - Max	400VAC - Max	400VAC - Max
Load - Max Switching	4000VA	4000VA	4000VA	4000VA	4000VA
Coil Current	18.6 mA	18.6 mA	53.9 mA	90 mA	53.9 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	Mechanical Indicator, Test Button	Mechanical Indicator, Test Button	Mechanical Indicator, Test Button	Mechanical Indicator, Test Button	Mechanical Indicator, Test Button
Termination Style	Plug In, 11 Pin (Octal)	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal)	Plug In, 11 Pin (Octal)
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	96 VAC	96 VAC	19.2 VDC	19.2 VAC	19.2 VDC
Must Release Voltage	24 VAC	24 VAC	4.8 VDC	4.8 VAC	4.8 VDC
Operate Time	11 ms	11 ms	11 ms	11 ms	11 ms
Release Time	4 ms	4 ms	4 ms	4 ms	4 ms
Operating Temperature	-40°C ~ 70°C	-40°C ~ 70°C	-40°C ~ 70°C	-40°C ~ 70°C	-40°C ~ 70°C
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)	Silver Nickel (AgNi)	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
