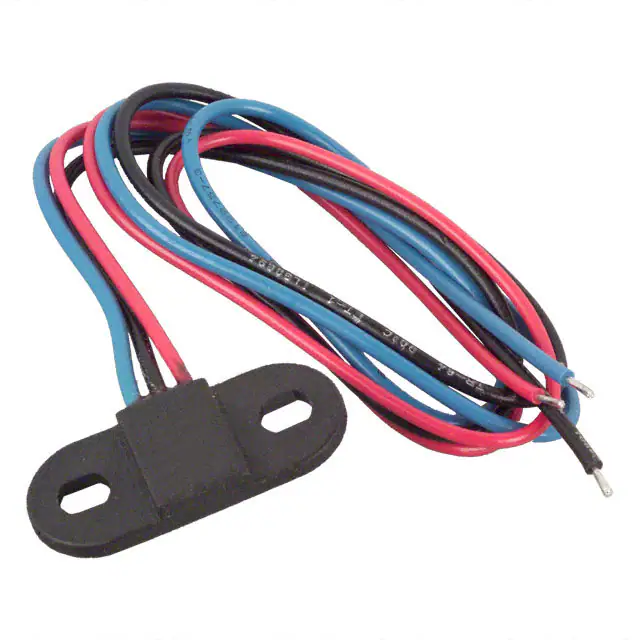

Littelfuse Inc. 55100-3H-04-A
- Part No.:
- 55100-3H-04-A
- Manufacturer:
- Littelfuse Inc.
- Package:
- Module
- Datasheet:
-
55100-3H-04-A.pdf
- Description:
- SENSOR HALL VOLTAGE WIRE LEADS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
55100-3H-04-A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Series:
- 55100
- Package/Case:
- Module
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Hall Effect Sensor
- Output Type:
- Voltage
- Actuator Material:
- Magnet, South Pole
- Termination Style:
- Wire Leads
- Frequency:
- 10 kHz
- Voltage - Supply:
- 2.7V ~ 24V
- Must Operate:
- -
- Must Release:
- -
- Operating Temperature:
- -40°C ~ 100°C
- Grade:
- -
- Qualification:
- -
| Image |  |
|
|
|
|
| Part Number | 55100-2M-02-A | 55100-3H-02-A | 55100-3M-02-A | 55100-3M-03-A | 55100-3H-04-A |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Series | 55100 | 55100 | 55100 | 55100 | 55100 |
| Package/Case | Module | Module | Module | Module | Module |
| Packaging | Box | Bulk | Bulk | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Hall Effect Switch | Hall Effect Switch | Hall Effect Switch | Hall Effect Switch | Hall Effect Sensor |
| Output Type | Current | Voltage | Voltage | Voltage | Voltage |
| Actuator Material | Magnet, South Pole | Magnet, South Pole | Magnet, South Pole | Magnet, South Pole | Magnet, South Pole |
| Termination Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Frequency | 10 kHz | 10 kHz | 10 kHz | 10 kHz | 10 kHz |
| Voltage - Supply | 3V ~ 24V | 2.7V ~ 24V | 2.7V ~ 24V | 2.7V ~ 24V | 2.7V ~ 24V |
| Must Operate | 13.50mm | - | - | - | - |
| Must Release | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
