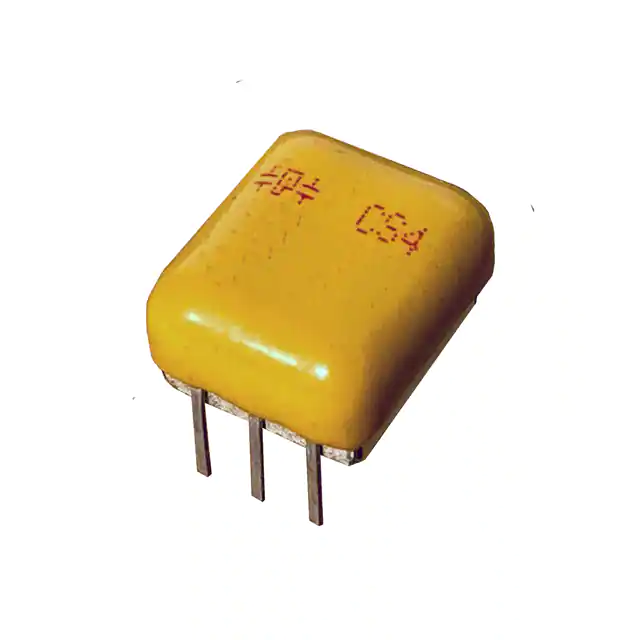

Cornell Dubilier Knowles 475K100CS4-FA
- Part No.:
- 475K100CS4-FA
- Manufacturer:
- Cornell Dubilier Knowles
- Category:
- Film Capacitors
- Package:
- 6-DIP
- Description:
- CAP FILM 4.7UF 10% 100VDC 6DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
475K100CS4-FA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Cornell Dubilier Knowles
- Package/Case:
- 6-DIP
- Capacitance:
- 4.7 µF
- Tolerance:
- ±10%
- Voltage Rating - AC:
- -
- Voltage Rating - DC:
- 100V
- Dielectric Material:
- Polymer, Metallized
- ESR (Equivalent Series Resistance):
- 6 mOhms
- Operating Temperature:
- -55°C ~ 125°C
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.524" L x 0.500" W (13.30mm x 12.70mm)
- Height - Seated (Max):
- 0.250" (6.35mm)
- Termination:
- PC Pins
- Lead Spacing:
- 0.394" (10.00mm)
- Applications:
- DC Link, DC Filtering; High Frequency, Switching
- Ratings:
- -
- Features:
- Low ESR, Low ESL
| Image |  |
 |
 |
 |
| Part Number | 475K100CS4-FA | 475K100CS4G | 475K100CS4 | 475K100CS4G-FA |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Package/Case | 6-DIP | 6-SMD, Gull Wing | 6-DIP | 6-SMD, Gull Wing |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V |
| Dielectric Material | Polymer, Metallized | Polymer, Metallized | Polymer, Metallized | Polymer, Metallized |
| ESR (Equivalent Series Resistance) | 6 mOhms | 6 mOhms | 6 mOhms | 6 mOhms |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Surface Mount |
| Size / Dimension | 0.524" L x 0.500" W (13.30mm x 12.70mm) | 0.524" L x 0.500" W (13.30mm x 12.70mm) | 0.524" L x 0.500" W (13.30mm x 12.70mm) | 0.524" L x 0.500" W (13.30mm x 12.70mm) |
| Height - Seated (Max) | 0.250" (6.35mm) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.250" (6.35mm) |
| Termination | PC Pins | Gull Wing | PC Pins | Gull Wing |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | Low ESR, Low ESL | Low ESR, Low ESL | Low ESR, Low ESL | Low ESR, Low ESL |
