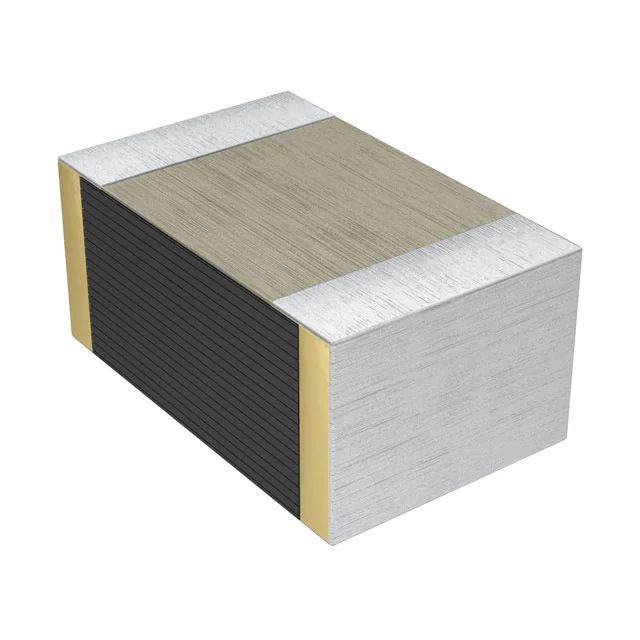

Panasonic Electronic Components ECH-U1H102GX5
- Part No.:
- ECH-U1H102GX5
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Film Capacitors
- Package:
- 0805 (2012 Metric)
- Description:
- CAP FILM 1000PF 2% 50VDC 0805
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ECH-U1H102GX5 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Package/Case:
- 0805 (2012 Metric)
- Capacitance:
- 1000 pF
- Tolerance:
- ±2%
- Voltage Rating - AC:
- 30V
- Voltage Rating - DC:
- 50V
- Dielectric Material:
- Polyphenylene Sulfide (PPS), Metallized - Stacked
- ESR (Equivalent Series Resistance):
- -
- Operating Temperature:
- -55°C ~ 125°C
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):
- 0.043" (1.10mm)
- Termination:
- Solder Pads
- Lead Spacing:
- -
- Applications:
- General Purpose
- Ratings:
- -
- Features:
- -
| Image | .jpg) |
|
.jpg) |
.jpg) |
|

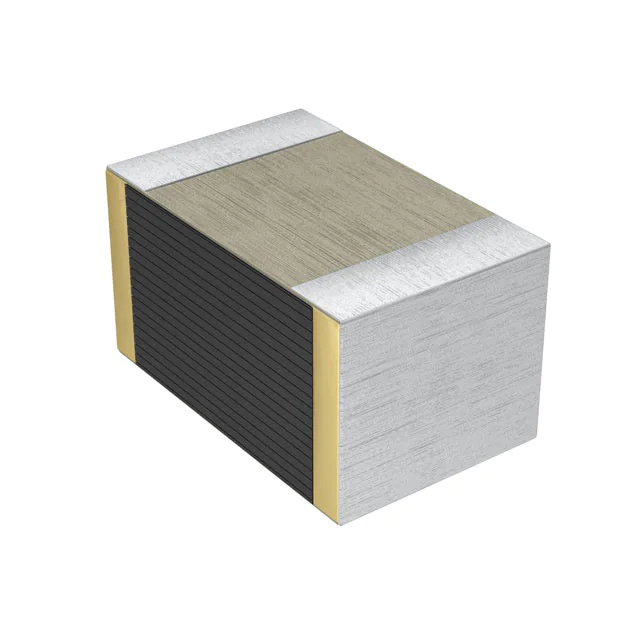

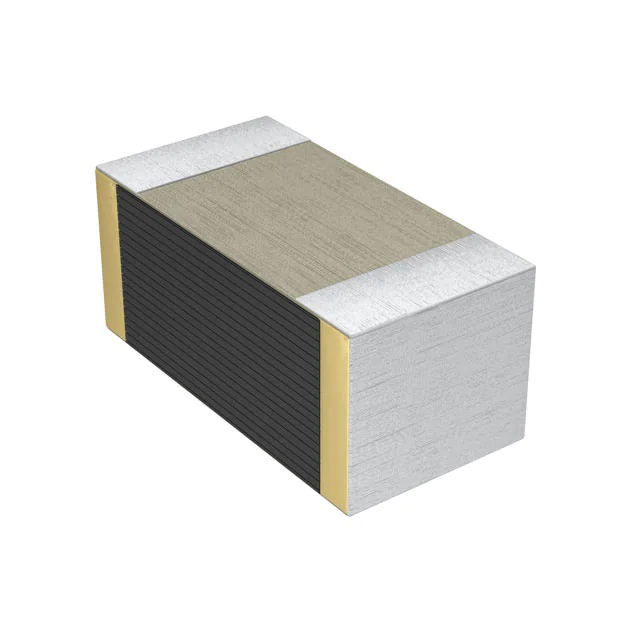

| Part Number | ECH-U1H102GX5 | ECH-U1H101JX5 | ECH-U1C103JX5 | ECH-U1C102JX5 | ECH-U1C101GX5 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Package/Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Capacitance | 1000 pF | 100 pF | 10000 pF | 1000 pF | 100 pF |
| Tolerance | ±2% | ±5% | ±5% | ±5% | ±2% |
| Voltage Rating - AC | 30V | 30V | 11V | 11V | 11V |
| Voltage Rating - DC | 50V | 50V | 16V | 16V | 16V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.051" (1.30mm) | 0.033" (0.85mm) | 0.033" (0.85mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
- Include Parts
- Popular Search
The following parts include "ECH-U1H102GX5" in Silicon Labs ECH-U1H102GX5.
- Part Number
- Manufacturer
- Package
- Description
- B32529C0102K289 EPCOS - TDK Electronics Radial CAP FILM 1000PF 10% 63VDC RADIAL
- B32529C0104J289 EPCOS - TDK Electronics Radial CAP FILM 0.1UF 5% 63VDC RADIAL
- ECQ-E4104KF Panasonic Electronic Components Radial CAP FILM 0.1UF 10% 400VDC RADIAL
- 890334023028 Würth Elektronik Radial CAP FILM 0.22UF 10% 310VAC RAD
- ECQ-UAAF224M Panasonic Electronic Components Radial CAP FILM 0.22UF 20% 275VAC RAD
- ECH-U1H102GX5 Panasonic Electronic Components 0805 (2012 Metric) CAP FILM 1000PF 2% 50VDC 0805
- ECQ-UAAF104M Panasonic Electronic Components Radial CAP FILM 0.1UF 20% 275VAC RADIAL
- ECH-U1H101JX5 Panasonic Electronic Components 0805 (2012 Metric) CAP FILM 100PF 5% 50VDC 0805
- ECH-U1C103JX5 Panasonic Electronic Components 0805 (2012 Metric) CAP FILM 10000PF 5% 16VDC 0805
- ECH-U1C102JX5 Panasonic Electronic Components 0603 (1608 Metric) CAP FILM 1000PF 5% 16VDC 0603
