TT Electronics/Optek Technology 2N2222AUB
- Part No.:
- 2N2222AUB
- Manufacturer:
- TT Electronics/Optek Technology
- Category:
- Single Bipolar Transistors
- Package:
- 3-LCC
- Description:
- TRANS NPN 50V 0.8A CERAMIC SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2N2222AUB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TT Electronics/Optek Technology
- Series:
- -
- Package/Case:
- 3-LCC
- Packaging:
- Bulk
- Product Status:
- Active
- Transistor Type:
- NPN
- Current - Collector (Ic) (Max):
- 800 mA
- Voltage - Collector Emitter Breakdown (Max):
- 50 V
- Vce Saturation (Max) @ Ib, Ic:
- 1V @ 15mA, 500mA
- Current - Collector Cutoff (Max):
- 50nA
- DC Current Gain (hFE) (Min) @ Ic, Vce:
- 75 @ 1mA, 10V
- Power - Max:
- 300 mW
- Frequency - Transition:
- -
- Operating Temperature:
- -65°C ~ 200°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- Ceramic SMD

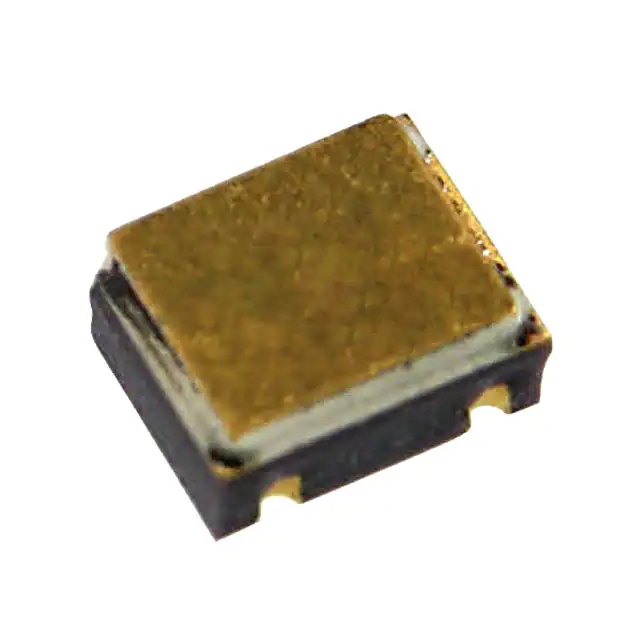

| Image |  |
.jpg) |
|
| Part Number | 2N2222AUB | 2N2222AUBTX | 2N2222AUBTXV |
| Manufacturer | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology |
| Series | - | - | - |
| Package/Case | 3-LCC | 4-CLCC | 4-CLCC |
| Packaging | Bulk | Bulk | Bulk |
| Product Status | Active | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 800 mA | 800 mA | 800 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 15mA, 500mA | 1V @ 15mA, 500mA | 1V @ 15mA, 500mA |
| Current - Collector Cutoff (Max) | 50nA | 10nA (ICBO) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 1mA, 10V | 75 @ 1mA, 10V | 75 @ 1mA, 10V |
| Power - Max | 300 mW | 300 mW | 300 mW |
| Frequency - Transition | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | Ceramic SMD | 4-CLCC (3.05x2.415) | 4-CLCC (3.05x2.415) |
