Finder Relays, Inc. 22.23.8.230.4000

Name: 22.23.8.230.4000
Brand: Finder Relays, Inc.
SKU: 22.23.8.230.4000
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 22.23.8.230.4000

Manufacturer:: Finder Relays, Inc.

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: 22.23.8.230.4000.pdf

Description:: RELAY GEN PURPOSE DPST 20A 230V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

22.23.8.230.4000 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Finder Relays, Inc.

Series:: 22

Packaging:: Bulk

Product Status:: Active

Mounting Type:: DIN Rail

Coil Voltage:: 230VAC

Contact Form:: DPST-NO/NC (1 Form A, 1 Form B)

Contact Rating (Current):: 20 A

Switching Voltage:: 400VAC - Max

Load - Max Switching:: 8000VA

Coil Current:: 12.5 mA

Coil Type:: Non Latching

Features:: Test Button

Termination Style:: Screw Terminal

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: 196 VAC

Must Release Voltage:: -

Operate Time:: 15 ms

Release Time:: 8 ms

Operating Temperature:: -40°C ~ 40°C

Contact Material:: Silver Tin Oxide (AgSnO)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

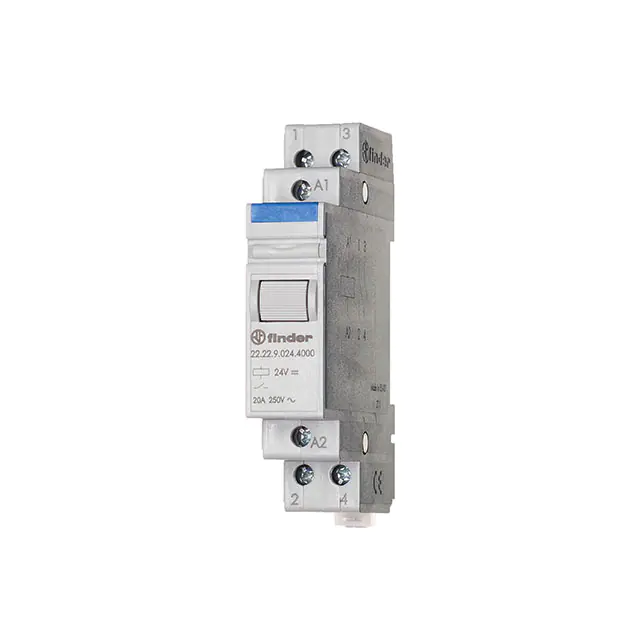

Part Number	22.22.9.024.4000	22.21.9.012.4000	22.21.9.024.4000	22.22.9.012.4000	22.24.9.024.4000
Manufacturer	Finder Relays, Inc.	Finder Relays, Inc.	Finder Relays, Inc.	Finder Relays, Inc.	Finder Relays, Inc.
Series	22	22	22	22	22
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Mounting Type	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail
Coil Voltage	24VDC	12VDC	24VDC	12VDC	24VDC
Contact Form	DPST-NO (2 Form A)	SPST-NO (1 Form A)	SPST-NO (1 Form A)	DPST-NO (2 Form A)	DPST-NC (2 Form B)
Contact Rating (Current)	20 A	20 A	20 A	20 A	20 A
Switching Voltage	400VAC - Max	400VAC - Max	400VAC - Max	400VAC - Max	400VAC - Max
Load - Max Switching	8000VA	8000VA	8000VA	8000VA	8000VA
Coil Current	52.2 mA	104 mA	52.2 mA	104 mA	52.2 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	Test Button	Test Button	Test Button	Test Button	Test Button
Termination Style	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	21.6 VDC	10.8 VDC	21.6 VDC	10.8 VDC	21.6 VDC
Must Release Voltage	-	-	-	-	-
Operate Time	15 ms	15 ms	15 ms	15 ms	15 ms
Release Time	8 ms	8 ms	8 ms	8 ms	8 ms
Operating Temperature	-40°C ~ 40°C	-40°C ~ 40°C	-40°C ~ 40°C	-40°C ~ 40°C	-40°C ~ 40°C
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
