TE Connectivity Potter & Brumfield Relays 1-1393771-5
- Part No.:
- 1-1393771-5
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Category:
- Reed Relays
- Package:
- Description:
- JWD-171-23=REED RELAYS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
1-1393771-5 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Series:
- JWD
- Packaging:
- Box
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- DPST-NO (2 Form A)
- Contact Rating (Current):
- 500 mA
- Switching Voltage:
- 100VDC - Max
- Coil Current:
- 24 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- -
- Must Operate Voltage:
- 9.6 VDC
- Must Release Voltage:
- 1 VDC
- Operate Time:
- 1.5 ms
- Release Time:
- 0.5 ms
- Operating Temperature:
- -35°C ~ 85°C
- Contact Material:
- Ruthenium (Ru)

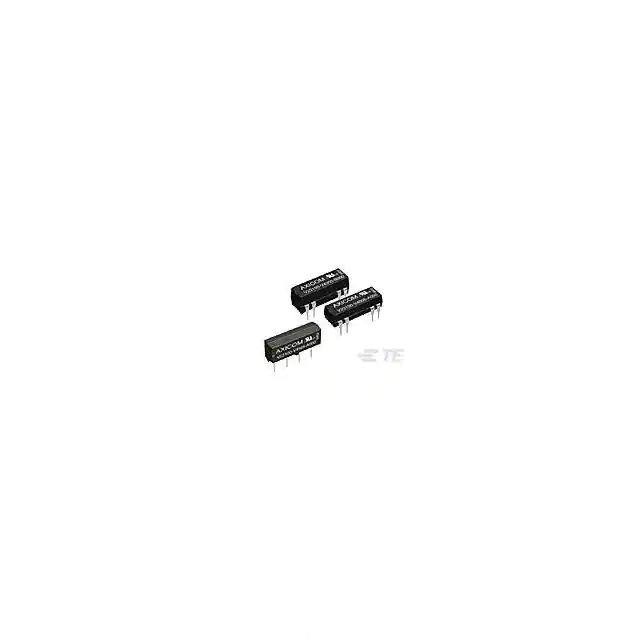

| Image |  |
|
 |
|
| Part Number | 1-1393771-2 | 1393771-8 | 1393803-6 | 1-1393771-5 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Series | JWD | JWD | V23100-V6, AXICOM | JWD |
| Packaging | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 5VDC | 12VDC | 12VDC |
| Contact Form | SPST-NC (1 Form B) | SPST-NC (1 Form B) | DPST-NO (2 Form A) | DPST-NO (2 Form A) |
| Contact Rating (Current) | 500 mA | 500 mA | 750 mA | 500 mA |
| Switching Voltage | 100VDC - Max | 100VDC - Max | 24VDC - Nom | 100VDC - Max |
| Coil Current | 10 mA | 10 mA | 10.9 mA | 24 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | Diode | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | - | - | - | - |
| Must Operate Voltage | 9.6 VDC | 3.8 VDC | - | 9.6 VDC |
| Must Release Voltage | 1 VDC | 0.5 VDC | - | 1 VDC |
| Operate Time | 1.5 ms | 1.5 ms | - | 1.5 ms |
| Release Time | 0.5 ms | 0.5 ms | - | 0.5 ms |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C | - | -35°C ~ 85°C |
| Contact Material | Ruthenium (Ru) | Ruthenium (Ru) | Rhodium (Rh), Ruthenium (Ru) | Ruthenium (Ru) |
