ECS Inc. ZTT-6.00MG
- Part No.:
- ZTT-6.00MG
- Manufacturer:
- ECS Inc.
- Category:
- Resonators
- Package:
- Radial - 3 Lead, 2.50mm Pitch
- Datasheet:
-
ZTT-6.00MG.pdf
- Description:
- CERAMIC RES 6.0000MHZ 30PF T/H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ZTT-6.00MG Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ECS Inc.
- Series:
- ZTT
- Package/Case:
- Radial - 3 Lead, 2.50mm Pitch
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Ceramic
- Frequency:
- 6 MHz
- Frequency Stability:
- ±0.3%
- Frequency Tolerance:
- ±0.5%
- Features:
- Built in Capacitor
- Capacitance:
- 30 pF
- Impedance:
- 30 Ohms
- Operating Temperature:
- -20°C ~ 80°C
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.394" L x 0.197" W (10.00mm x 5.00mm)
- Height:
- 0.295" (7.50mm)

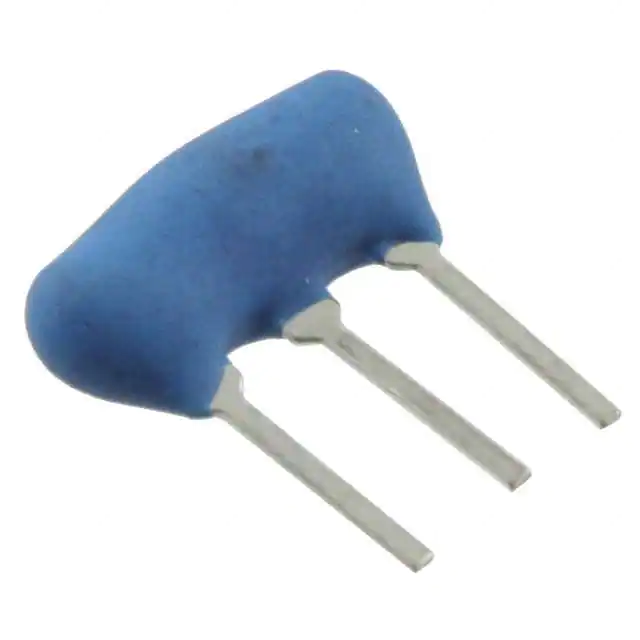

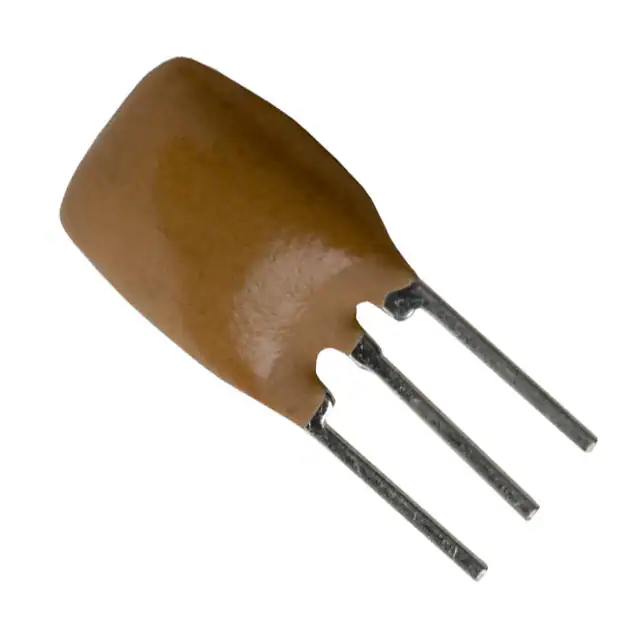

| Image |  |
 |
|
|
 |
| Part Number | ZTT-4.00MG | ZTT-6.00MT | ZTT-8.00MT | ZTT50.00MX | ZTT-3.58MG |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Series | ZTT | ZTT | ZTT | ZTT | ZTT |
| Package/Case | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 4 MHz | 6 MHz | 8 MHz | 50 MHz | 3.58 MHz |
| Frequency Stability | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 30 pF | 30 pF | 30 pF | 5 pF | 30 pF |
| Impedance | 30 Ohms | 30 Ohms | 25 Ohms | 30 Ohms | 30 Ohms |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) |
| Height | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) |
