Silicon Labs ZGM130S037HGN2
- Part No.:
- ZGM130S037HGN2
- Manufacturer:
- Silicon Labs
- Category:
- RF Transceiver Modules and Modems
- Package:
- 64-LFLGA
- Datasheet:
-
ZGM130S037HGN2.pdf
- Description:
- RF TXRX MOD ISM<1GHZSMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ZGM130S037HGN2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Silicon Labs
- Series:
- Z-Wave®
- Package/Case:
- 64-LFLGA
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- General ISM < 1GHz
- Protocol:
- Z-Wave®
- Modulation:
- 2FSK, GFSK
- Frequency:
- 863MHz ~ 876MHz, 902MHz ~ 930MHz
- Data Rate:
- 100Kbps
- Power - Output:
- 13dBm
- Sensitivity:
- -102.6dBm
- Serial Interfaces:
- ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- ZGM130S
- Memory Size:
- 512kB Flash, 64kB RAM
- Voltage - Supply:
- 1.8V ~ 3.8V
- Current - Receiving:
- 9.5mA ~ 9.9mA
- Current - Transmitting:
- 13.3mA ~ 40.7mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C (TA)

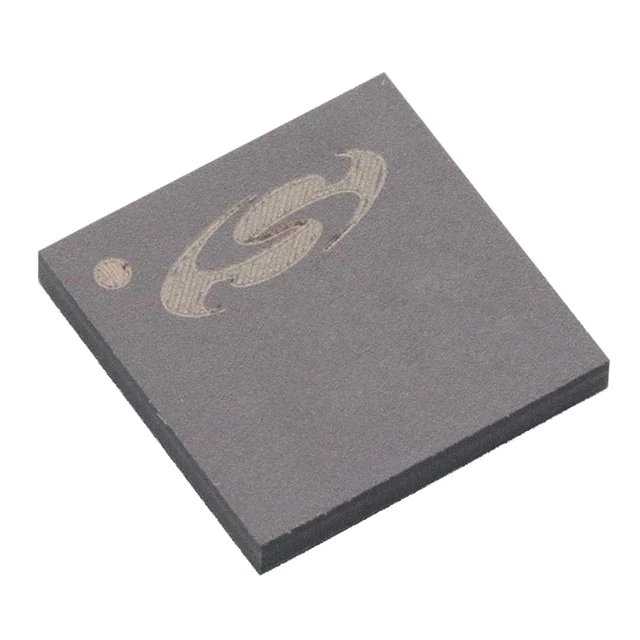

| Image |  |
 |
| Part Number | ZGM130S037HGN2 | ZGM130S037HGN2R |
| Manufacturer | Silicon Labs | Silicon Labs |
| Series | Z-Wave® | Z-Wave® |
| Package/Case | 64-LFLGA | 64-LFLGA |
| Packaging | Tray | Tape & Reel (TR) |
| Product Status | Active | Active |
| Programmable | Not Verified | Not Verified |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | Z-Wave® | Z-Wave® |
| Modulation | 2FSK, GFSK | 2FSK, GFSK |
| Frequency | 863MHz ~ 876MHz, 902MHz ~ 930MHz | 863MHz ~ 876MHz, 902MHz ~ 930MHz |
| Data Rate | 100Kbps | 100Kbps |
| Power - Output | 13dBm | 13dBm |
| Sensitivity | -102.6dBm | -102.6dBm |
| Serial Interfaces | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART |
| Antenna Type | Antenna Not Included | Antenna Not Included |
| Utilized IC / Part | ZGM130S | ZGM130S |
| Memory Size | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 9.5mA ~ 9.9mA | 9.5mA ~ 9.9mA |
| Current - Transmitting | 13.3mA ~ 40.7mA | 13.3mA ~ 40.7mA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
