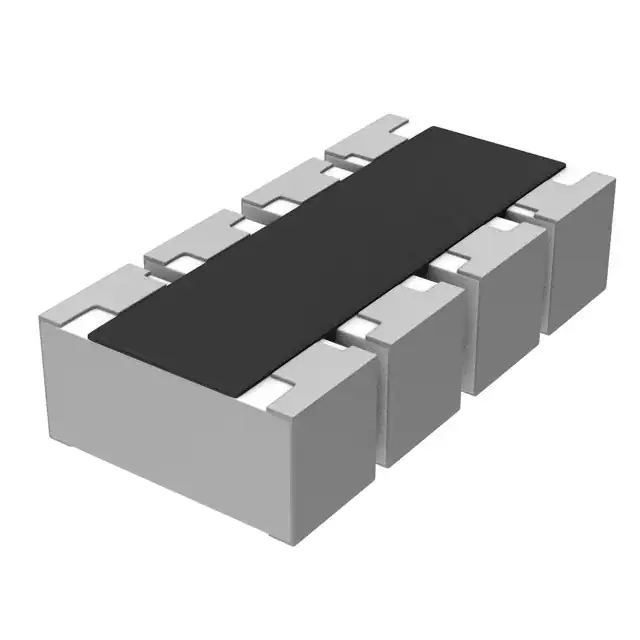

YAGEO YC124-JR-0710KL
- Part No.:
- YC124-JR-0710KL
- Manufacturer:
- YAGEO
- Category:
- Resistor Networks, Arrays
- Package:
- 0804, Convex, Long Side Terminals
- Datasheet:
-
YC124-JR-0710KL.pdf
- Description:
- RES ARRAY 4 RES 10K OHM 0804
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
YC124-JR-0710KL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- YAGEO
- Series:
- YC124
- Package/Case:
- 0804, Convex, Long Side Terminals
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Circuit Type:
- Isolated
- Resistance (Ohms):
- 10k
- Tolerance:
- ±5%
- Number of Resistors:
- 4
- Resistor Matching Ratio:
- -
- Resistor-Ratio-Drift:
- -
- Number of Pins:
- 8
- Power Per Element:
- 62.5mW
- Temperature Coefficient:
- ±200ppm/°C
- Operating Temperature:
- -55°C ~ 155°C
- Grade:
- Automotive
- Qualification:
- AEC-Q200
- Applications:
- DDRAM, SDRAM
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.079" L x 0.039" W (2.00mm x 1.00mm)
- Height - Seated (Max):
- 0.022" (0.55mm)
| Image |  |
|
|
|
|
| Part Number | YC124-JR-0710KL | YC124-JR-07100RL | YC124-JR-0733RL | YC124-JR-0722RL | YC124-JR-072K2L |
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Series | YC124 | YC124 | YC124 | YC124 | YC124 |
| Package/Case | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 10k | 100 | 33 | 22 | 2.2k |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 4 | 4 | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - |
| Number of Pins | 8 | 8 | 8 | 8 | 8 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Grade | Automotive | Automotive | Automotive | Automotive | Automotive |
| Qualification | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | DDRAM, SDRAM | DDRAM, SDRAM | DDRAM, SDRAM | DDRAM, SDRAM | DDRAM, SDRAM |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
- Include Parts
- Popular Search
The following parts include "YC124-JR-0710KL" in Silicon Labs YC124-JR-0710KL.
- Part Number
- Manufacturer
- Package
- Description
- EXB-28V472JX Panasonic Electronic Components 0804, Convex, Long Side Terminals RES ARRAY 4 RES 4.7K OHM 0804
- EXB-28V101JX Panasonic Electronic Components 0804, Convex, Long Side Terminals RES ARRAY 4 RES 100 OHM 0804
- EXB-28V220JX Panasonic Electronic Components 0804, Convex, Long Side Terminals RES ARRAY 4 RES 22 OHM 0804
- EXB-28V510JX Panasonic Electronic Components 0804, Convex, Long Side Terminals RES ARRAY 4 RES 51 OHM 0804
- EXB-28V470JX Panasonic Electronic Components 0804, Convex, Long Side Terminals RES ARRAY 4 RES 47 OHM 0804
- CAY16-103J4LF Bourns Inc. 1206 (3216 Metric), Convex, Long Side Terminals RES ARRAY 4 RES 10K OHM 1206
- EXB-28V330JX Panasonic Electronic Components 0804, Convex, Long Side Terminals RES ARRAY 4 RES 33 OHM 0804
- EXB-28V103JX Panasonic Electronic Components 0804, Convex, Long Side Terminals RES ARRAY 4 RES 10K OHM 0804
- YC124-JR-0710KL YAGEO 0804, Convex, Long Side Terminals RES ARRAY 4 RES 10K OHM 0804
- 741X083103JP CTS Resistor Products 0804, Convex, Long Side Terminals RES ARRAY 4 RES 10K OHM 0804
