RAMXEED WYSACVLAY-WX
- Part No.:
- WYSACVLAY-WX
- Manufacturer:
- RAMXEED
- Category:
- RF Transceiver Modules and Modems
- Package:
- 44-SMD Module
- Datasheet:
-
WYSACVLAY-WX.pdf
- Description:
- RF TXRX MOD WIFI TH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
WYSACVLAY-WX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- RAMXEED
- Series:
- -
- Package/Case:
- 44-SMD Module
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- WiFi
- Protocol:
- 802.11b/g/n
- Modulation:
- -
- Frequency:
- 2.412GHz ~ 2.462GHz
- Data Rate:
- 115.2kbps
- Power - Output:
- 15dBm
- Sensitivity:
- -86dBm
- Serial Interfaces:
- I2C, SPI, UART
- Antenna Type:
- Integrated, Trace
- Utilized IC / Part:
- MW320
- Memory Size:
- 512kB SRAM
- Voltage - Supply:
- 3V ~ 3.6V
- Current - Receiving:
- 82mA
- Current - Transmitting:
- 165mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -30°C ~ 85°C

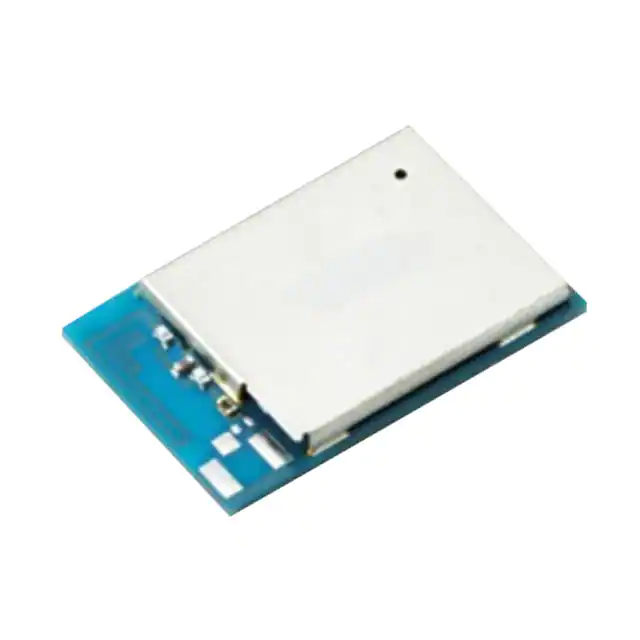

| Image |  |
 |
| Part Number | WYSACVLAY-XZ | WYSACVLAY-WX |
| Manufacturer | RAMXEED | RAMXEED |
| Series | - | - |
| Package/Case | 44-SMD Module | 44-SMD Module |
| Packaging | Tray | Tray |
| Product Status | Obsolete | Active |
| Programmable | Not Verified | Not Verified |
| RF Family/Standard | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n |
| Modulation | - | - |
| Frequency | 2.412GHz ~ 2.462GHz | 2.412GHz ~ 2.462GHz |
| Data Rate | 115.2kbps | 115.2kbps |
| Power - Output | 15dBm | 15dBm |
| Sensitivity | -86dBm | -86dBm |
| Serial Interfaces | I2C, SPI, UART | I2C, SPI, UART |
| Antenna Type | Integrated, Trace | Integrated, Trace |
| Utilized IC / Part | MW320 | MW320 |
| Memory Size | 512kB SRAM | 512kB SRAM |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V |
| Current - Receiving | 82mA | 82mA |
| Current - Transmitting | 165mA | 165mA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C |
