TDK Corporation WR303050-15F5-G
- Part No.:
- WR303050-15F5-G
- Manufacturer:
- TDK Corporation
- Category:
- Wireless Charging Coils
- Package:
- Datasheet:
-
WR303050-15F5-G.pdf
- Description:
- RX 1 COIL 2 LYR 12.3UH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
WR303050-15F5-G Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- WR
- Packaging:
- Tray
- Product Status:
- Active
- Function:
- Receiver
- Type:
- 1 Coil, 2 Layer
- Inductance:
- 12.3µH
- Tolerance:
- -
- DC Resistance (DCR):
- 410mOhm
- Q @ Freq:
- -
- Current Rating (Amps):
- -
- Current - Saturation (Isat):
- -
- Frequency - Self Resonant:
- -
- Operating Temperature:
- -
- Size / Dimension:
- 1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm)

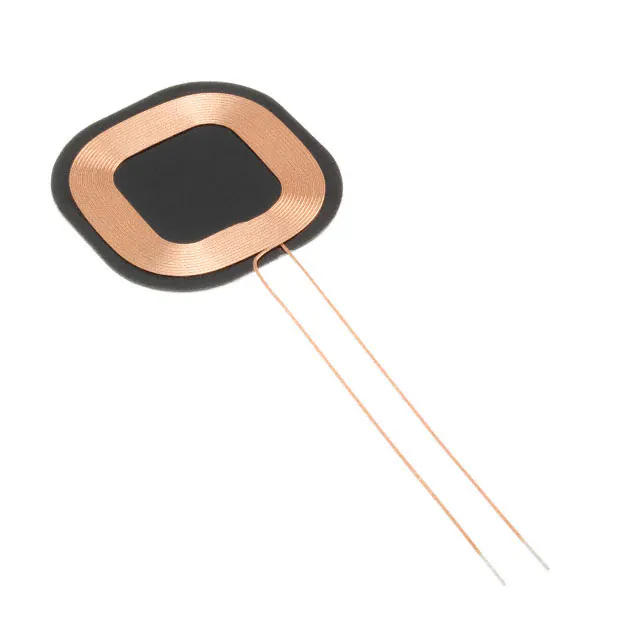

| Image |  |
 |
| Part Number | WR303050-15F5-G | WR303050-12F5-ID |
| Manufacturer | TDK Corporation | TDK Corporation |
| Series | WR | WR |
| Packaging | Tray | Tray |
| Product Status | Active | Active |
| Function | Receiver | Receiver |
| Type | 1 Coil, 2 Layer | 1 Coil, 1 Layer |
| Inductance | 12.3µH | 8.23µH |
| Tolerance | - | ±5% |
| DC Resistance (DCR) | 410mOhm | 260mOhm |
| Q @ Freq | - | - |
| Current Rating (Amps) | - | - |
| Current - Saturation (Isat) | - | - |
| Frequency - Self Resonant | - | - |
| Operating Temperature | - | - |
| Size / Dimension | 1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm) | 1.18" L x 1.17" W x 0.03" H (30.0mm x 29.6mm x 0.9mm) |
