Knowles WP-23502-000
- Part No.:
- WP-23502-000
- Manufacturer:
- Knowles
- Category:
- Microphones
- Package:
- Datasheet:
-
WP-23502-000.pdf
- Description:
- MIC COND ANALOG OMNI -52DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
WP-23502-000 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Knowles
- Series:
- WP
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Electret Condenser
- Output Type:
- Analog
- Direction:
- Omnidirectional
- Frequency Range:
- 100 Hz ~ 4 kHz
- Sensitivity:
- -52dB ±3dB @ 74dB SPL
- S/N Ratio:
- -
- Impedance:
- 4.4 kOhms
- Voltage - Rated:
- 1.3 V
- Voltage Range:
- 1.3 V ~ 10 V
- Current - Supply:
- 50 µA
- Port Location:
- Top
- Ratings:
- Waterproof
- Termination:
- Solder Pads
- Size / Dimension:
- 0.219" L x 0.157" W (5.56mm x 3.99mm)
- Height (Max):
- 0.089" (2.26mm)
- Shape:
- Rectangular
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

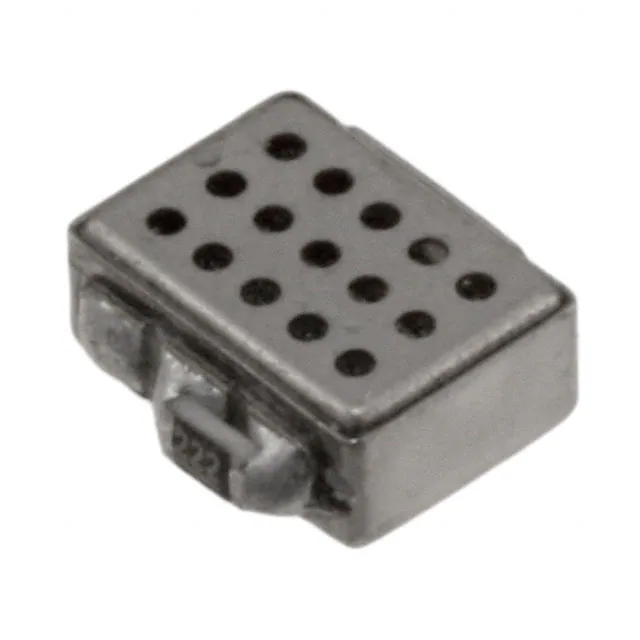

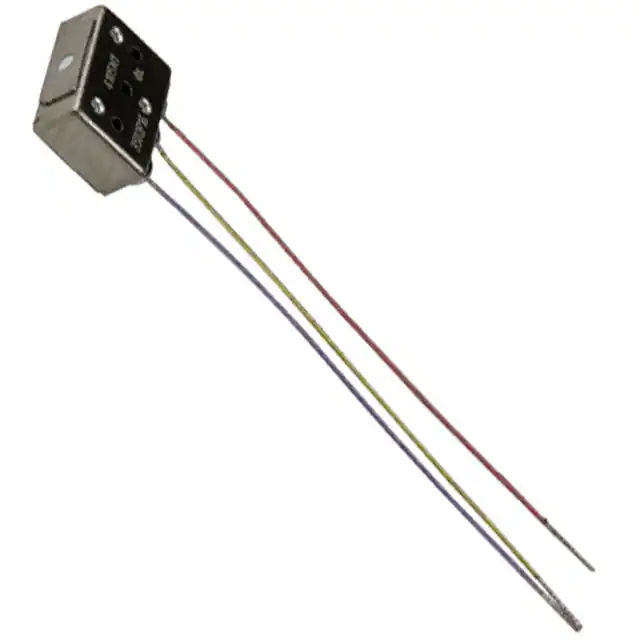

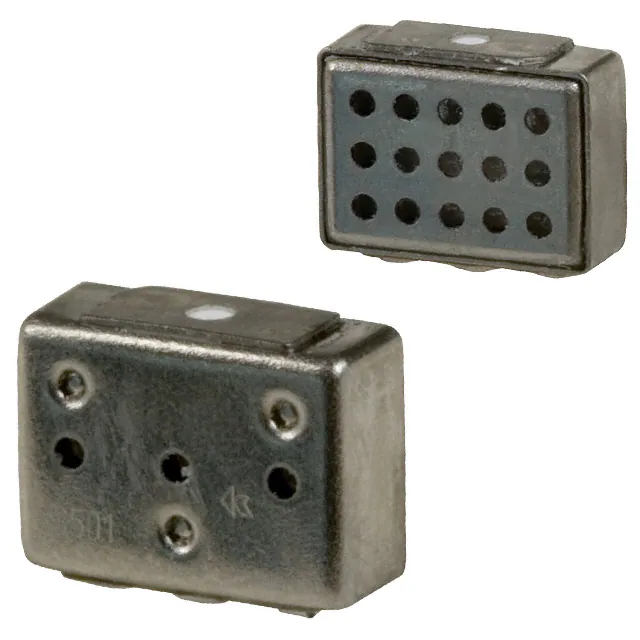

| Part Number | WP-23502-000 | WP-23501-000 | WP-23502-P16 | WP-25993-D63 | WP-25993-000 |
| Manufacturer | Knowles | Knowles | Knowles | Knowles | Knowles |
| Series | WP | WP | WP | WP | WP |
| Packaging | Bulk | Bulk | Bulk | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Type | Electret Condenser | Electret Condenser | Electret Condenser | Boom | - |
| Output Type | Analog | Analog | Analog | Analog | - |
| Direction | Omnidirectional | Noise Cancelling | Omnidirectional | Noise Cancelling | - |
| Frequency Range | 100 Hz ~ 4 kHz | 100 Hz ~ 6 kHz | 100 Hz ~ 4 kHz | 100 Hz ~ 4 kHz | - |
| Sensitivity | -52dB ±3dB @ 74dB SPL | -54dB ±3dB @ 74dB SPL | -52dB ±3dB @ 74dB SPL | -55dB ±4dB @ 74dB SPL | - |
| S/N Ratio | - | - | - | - | - |
| Impedance | 4.4 kOhms | 2.5 kOhms | 4.4 kOhms | 2 kOhms | - |
| Voltage - Rated | 1.3 V | 1.3 V | 1.3 V | 1.3 V | - |
| Voltage Range | 1.3 V ~ 10 V | 1.3 V ~ 10 V | 1.3 V ~ 10 V | 1.3 V ~ 10 V | - |
| Current - Supply | 50 µA | 300 µA | 50 µA | 300 µA | - |
| Port Location | Top | Bottom, Top | Top | Bottom, Top | - |
| Ratings | Waterproof | IP67 - Dust Tight, Waterproof | Waterproof | IP67 - Dust Tight, Waterproof | - |
| Termination | Solder Pads | Solder Pads | Wire Leads | Wire Leads | - |
| Size / Dimension | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.219" L x 0.157" W (5.56mm x 3.99mm) | - |
| Height (Max) | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) | - |
| Shape | Rectangular | Rectangular | Rectangular | Rectangular | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
