TE Connectivity Aerospace, Defense and Marine VTM-1F003
- Part No.:
- VTM-1F003
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Category:
- Time Delay Relays
- Package:
- Datasheet:
-
VTM-1F003.pdf
- Description:
- RELAY TIME DELAY 3SEC 5A 120V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VTM-1F003 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Series:
- VTM1, AGASTAT
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Mounting Type:
- Chassis Mount
- Relay Type:
- Solid State Relay
- Function:
- On-Delay
- Circuit:
- SPST-NO (1 Form A)
- Delay Time:
- Fixed, 3 Sec
- Contact Rating @ Voltage:
- 5A @ 120VAC
- Voltage - Supply:
- 24 ~ 240VAC/DC
- Termination Style:
- Quick Connect - 0.250" (6.3mm)
- Timing Adjustment Method:
- External Resistor
- Timing Initiate Method:
- Input Voltage
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

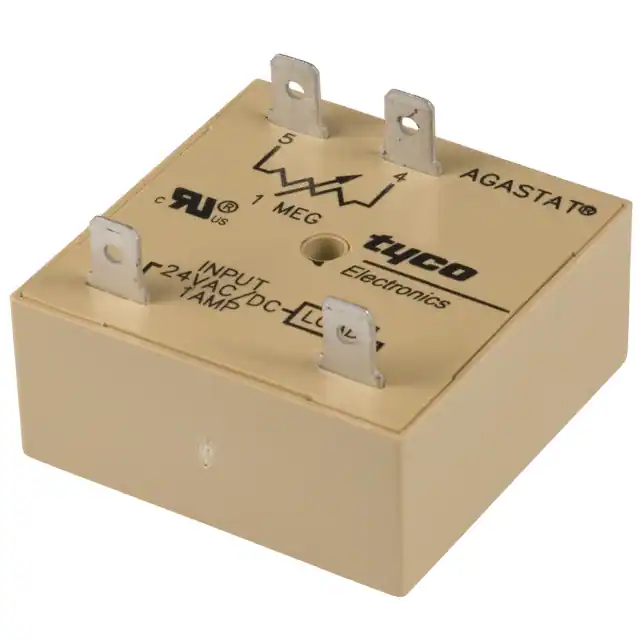

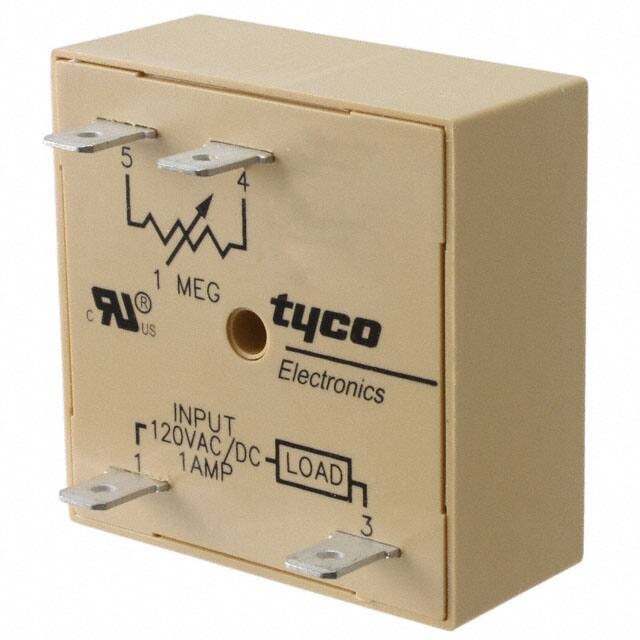

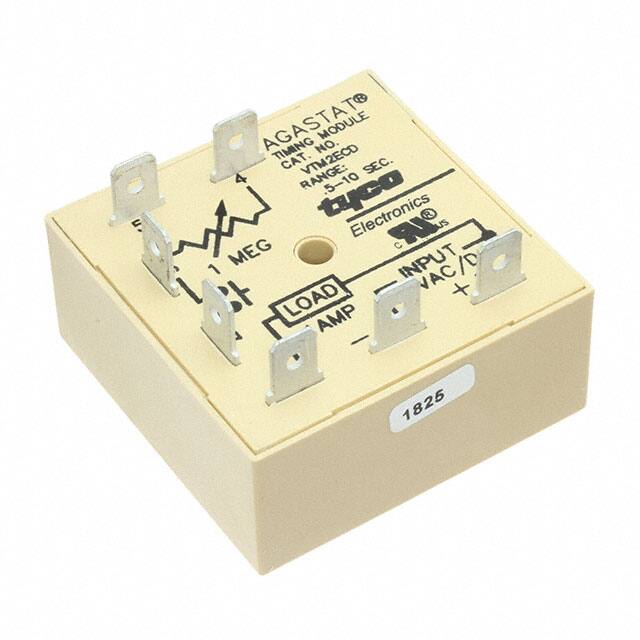

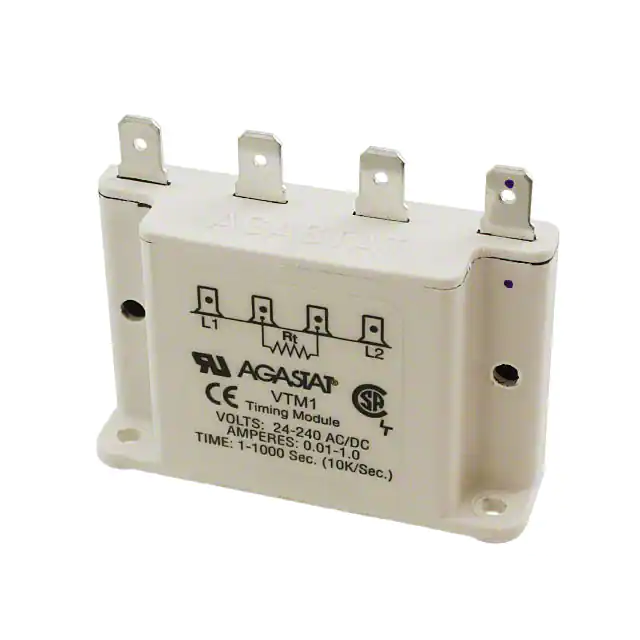

| Part Number | VTM1ECD | VTM1ACD | VTM2ECD | VTM-1 | VTM-1F003 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Series | VTM1, AGASTAT | VTM1, AGASTAT | VTM2 | VTM-1, AGASTAT | VTM1, AGASTAT |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Mounting Type | Chassis Mount | Chassis Mount | Panel Mount | Chassis Mount | Chassis Mount |
| Relay Type | Solid State Relay | Solid State Relay | Mechanical Relay | Solid State Relay | Solid State Relay |
| Function | On-Delay | On-Delay | Off-Delay | On-Delay | On-Delay |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Delay Time | 0.5 Sec ~ 10 Sec | 0.5 Sec ~ 10 Sec | 0.5 Sec ~ 10 Sec | 1 Sec ~ 1000 Sec | Fixed, 3 Sec |
| Contact Rating @ Voltage | 1A @ 120VAC | 1A @ 120VAC | - | 5A @ 120VAC | 5A @ 120VAC |
| Voltage - Supply | 24VAC/DC | 120VAC/DC | 24VAC/DC | 24 ~ 240VAC/DC | 24 ~ 240VAC/DC |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Timing Adjustment Method | External Resistor | External Resistor | Screwdriver Slot | External Resistor | External Resistor |
| Timing Initiate Method | Input Voltage | Input Voltage | Input Voltage | Input Voltage | Input Voltage |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
