Vishay Semiconductor Opto Division VEMD5160X01
- Part No.:
- VEMD5160X01
- Manufacturer:
- Vishay Semiconductor Opto Division
- Category:
- Photodiodes
- Package:
- 4-TDFN Exposed Pad
- Datasheet:
-
VEMD5160X01.pdf
- Description:
- SENSOR PHOTODIODE 840NM 4TDFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VEMD5160X01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Semiconductor Opto Division
- Series:
- -
- Package/Case:
- 4-TDFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Wavelength:
- 840nm
- Color - Enhanced:
- -
- Spectral Range:
- 700nm ~ 1070nm
- Diode Type:
- PIN
- Responsivity @ nm:
- -
- Response Time:
- 30ns
- Voltage - DC Reverse (Vr) (Max):
- 20 V
- Current - Dark (Typ):
- 200pA
- Active Area:
- 7.5mm²
- Viewing Angle:
- 130°
- Operating Temperature:
- -40°C ~ 110°C
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount

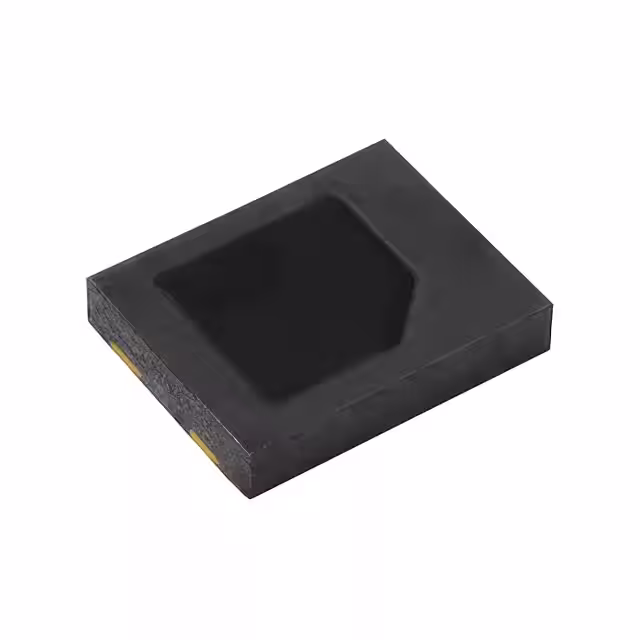

| Image |  |
 |
| Part Number | VEMD5160X01 | VEMD5160X01-GS15 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Series | - | - |
| Package/Case | 4-TDFN Exposed Pad | 4-SMD, No Lead Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Wavelength | 840nm | 840nm |
| Color - Enhanced | - | - |
| Spectral Range | 700nm ~ 1070nm | 700nm ~ 1070nm |
| Diode Type | PIN | PIN |
| Responsivity @ nm | - | - |
| Response Time | 30ns | 30ns |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 20 V |
| Current - Dark (Typ) | 200pA | 200pA |
| Active Area | 7.5mm² | 7.5mm² |
| Viewing Angle | 130° | 130° |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C (TA) |
| Grade | Automotive | - |
| Qualification | AEC-Q101 | - |
| Mounting Type | Surface Mount | Surface Mount |
