TE Connectivity Measurement Specialties US331-000005-015PG

Name: US331-000005-015PG
Brand: TE Connectivity Measurement Specialties
SKU: US331-000005-015PG
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: US331-000005-015PG

Manufacturer:: TE Connectivity Measurement Specialties

Category:: Pressure Sensors, Transducers - Industrial

Package:: Cylinder

Datasheet:: US331-000005-015PG.pdf

Description:: SENSOR 15PSIG 1/4NPT .5-4.5V 2'

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

US331-000005-015PG Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Measurement Specialties

Series:: US300

Package/Case:: Cylinder

Packaging:: Bulk

Product Status:: Active

Applications:: Industrial Automation

Pressure Type:: Vented Gauge

Operating Pressure:: 15PSI (103.42kPa)

Output Type:: Analog Voltage

Output:: 0.5 V ~ 4.5 V

Accuracy:: ±0.25%

Voltage - Supply:: 4.75V ~ 5.25V

Port Size:: Male - 1/4" (6.35mm) NPT

Port Style:: Threaded

Features:: Amplified Output, Temperature Compensated

Termination Style:: Cable

Maximum Pressure:: 45PSI (310.26kPa)

Operating Temperature:: -40°C ~ 105°C

Supplier Device Package:: -

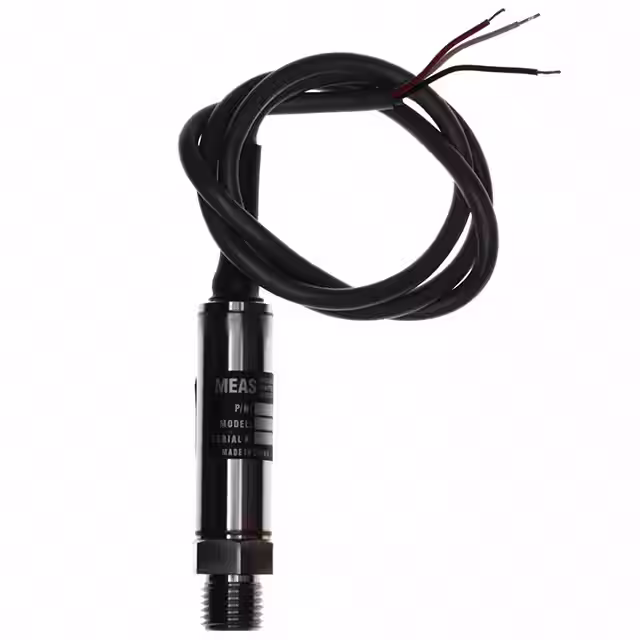

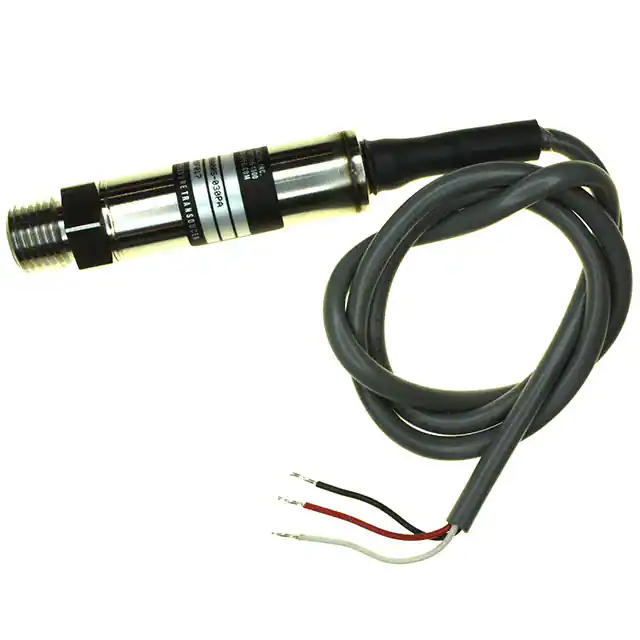

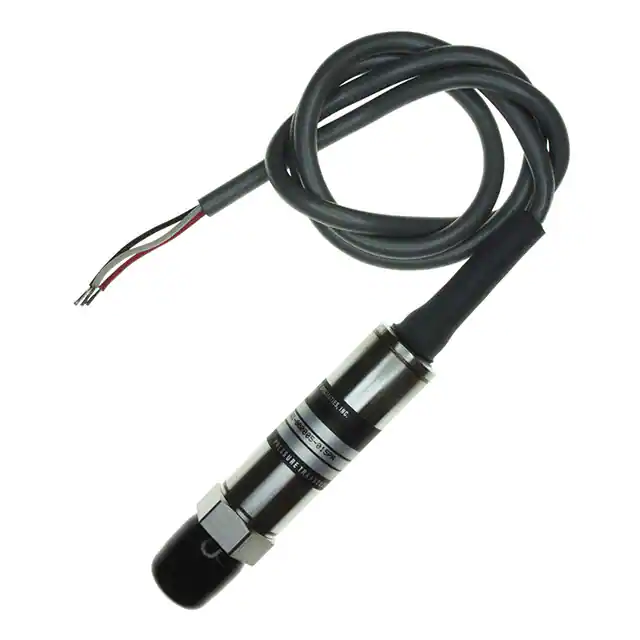

Part Number	US331-000005-015PG	US331-000005-015PA	US331-000005-100PG	US331-000005-030PA
Manufacturer	TE Connectivity Measurement Specialties	TE Connectivity Measurement Specialties	TE Connectivity Measurement Specialties	TE Connectivity Measurement Specialties
Series	US300	US300	US300	US300
Package/Case	Cylinder	Cylinder	Cylinder	Cylinder
Packaging	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active
Applications	Industrial Automation	Industrial Automation	Industrial Automation	Industrial Automation
Pressure Type	Vented Gauge	Absolute	Vented Gauge	Absolute
Operating Pressure	15PSI (103.42kPa)	15PSI (103.42kPa)	100PSI (689.48kPa)	30PSI (206.84kPa)
Output Type	Analog Voltage	Analog Voltage	Analog Voltage	Analog Voltage
Output	0.5 V ~ 4.5 V	0.5 V ~ 4.5 V	0.5 V ~ 4.5 V	0.5 V ~ 4.5 V
Accuracy	±0.25%	±0.25%	±0.25%	±0.25%
Voltage - Supply	4.75V ~ 5.25V	4.75V ~ 5.25V	4.75V ~ 5.25V	4.75V ~ 5.25V
Port Size	Male - 1/4" (6.35mm) NPT	Male - 1/4" (6.35mm) NPT	Male - 1/4" (6.35mm) NPT	Male - 1/4" (6.35mm) NPT
Port Style	Threaded	Threaded	Threaded	Threaded
Features	Amplified Output, Temperature Compensated	Amplified Output, Temperature Compensated	Amplified Output, Temperature Compensated	Amplified Output, Temperature Compensated
Termination Style	Cable	Cable	Cable	Cable
Maximum Pressure	45PSI (310.26kPa)	45PSI (310.26kPa)	300PSI (2068.43kPa)	90PSI (620.53kPa)
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Supplier Device Package	-	-	-	-
