Renesas Electronics Corporation UPD78F0511GB(A2)-GAF-E3-QS-AX
- Part No.:
- UPD78F0511GB(A2)-GAF-E3-QS-AX
- Manufacturer:
- Renesas Electronics Corporation
- Category:
- Microcontrollers
- Package:
- 44-LQFP
- Description:
- IC MCU 8BIT 16KB FLASH 44LQFP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
UPD78F0511GB(A2)-GAF-E3-QS-AX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Renesas Electronics Corporation
- Package/Case:
- 44-LQFP
- Series:
- 78K0/Kx2
- Packaging:
- Tray
- Product Status:
- Obsolete
- Programmable:
- -
- Core Processor:
- 78K/0
- Core Size:
- 8-Bit
- Speed:
- 20MHz
- Connectivity:
- 3-Wire SIO, I2C, LINbus, UART/USART
- Peripherals:
- LVD, POR, PWM, WDT
- Number of I/O:
- 37
- Program Memory Size:
- 16KB (16K x 8)
- Program Memory Type:
- FLASH
- EEPROM Size:
- -
- RAM Size:
- 768 x 8
- Voltage - Supply (Vcc/Vdd):
- 2.7V ~ 5.5V
- Data Converters:
- A/D 8x10b SAR
- Oscillator Type:
- External, Internal
- Operating Temperature:
- -40°C ~ 125°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
| Image |  |
 |
|
 |

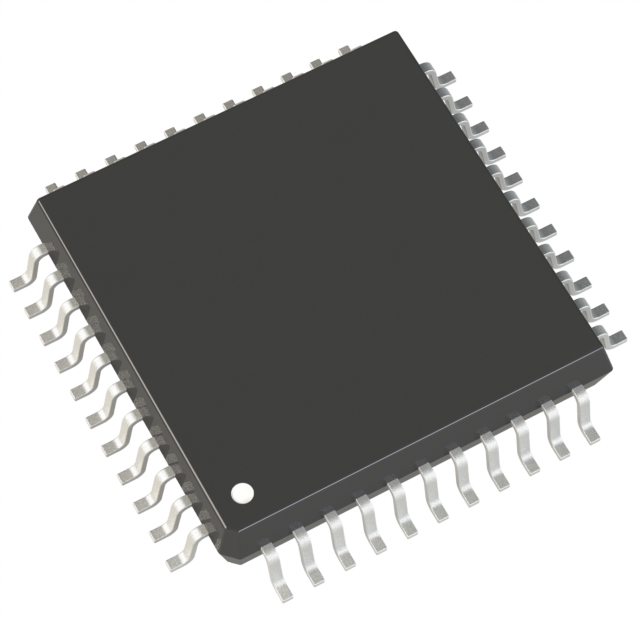

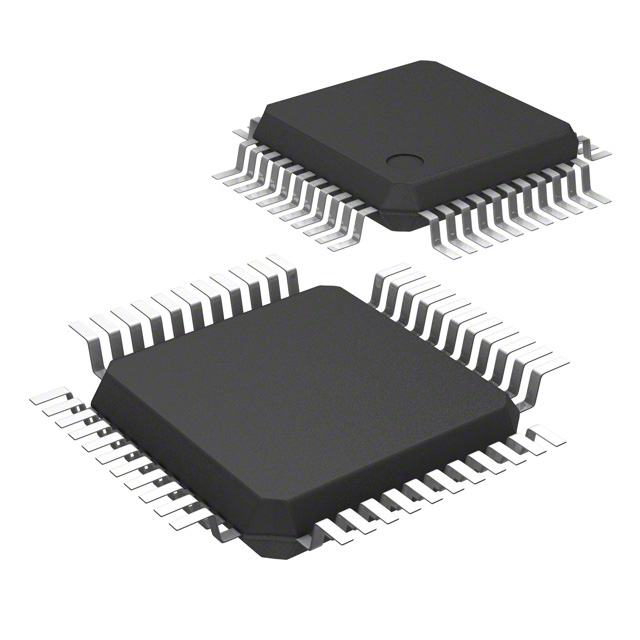

| Part Number | UPD78F0511GB-UES-A | UPD78F0511GB(T)-UES-AT | UPD78F0511GB-UES-AT | UPD78F0511GB(A2)-GAF-E3-QS-AX |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Package/Case | 44-LQFP | 44-LQFP | 44-LQFP | 44-LQFP |
| Series | 78K0/Kx2 | 78K0/Kx2 | 78K0/Kx2 | 78K0/Kx2 |
| Packaging | Tray | Bulk | Bulk | Tray |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | - | - | - |
| Core Processor | 78K/0 | 78K/0 | 78K/0 | 78K/0 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | 3-Wire SIO, I2C, LINbus, UART/USART | 3-Wire SIO, I2C, LINbus, UART/USART | 3-Wire SIO, I2C, LINbus, UART/USART | 3-Wire SIO, I2C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 37 | 37 | 37 | 37 |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | FLASH | FLASH | FLASH | FLASH |
| EEPROM Size | - | - | - | - |
| RAM Size | 768 x 8 | 768 x 8 | 768 x 8 | 768 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b SAR | A/D 8x10b SAR | A/D 8x10b SAR |
| Oscillator Type | Internal | External, Internal | External, Internal | External, Internal |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package |
