Transko Electronics, Inc. TX-T30-05KP-27.000M
- Part No.:
- TX-T30-05KP-27.000M
- Manufacturer:
- Transko Electronics, Inc.
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
TX-T30-05KP-27.000M.pdf
- Description:
- XTAL OSC TCXO 27.0000MHZ SNWV
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TX-T30-05KP-27.000M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Transko Electronics, Inc.
- Series:
- TX-T
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Strip
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- TCXO
- Frequency:
- 27 MHz
- Function:
- -
- Output:
- Clipped Sine Wave
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±500ppb
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -20°C ~ 70°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 2mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max):
- 0.059" (1.50mm)
| Image |  |
|
 |
 |
 |

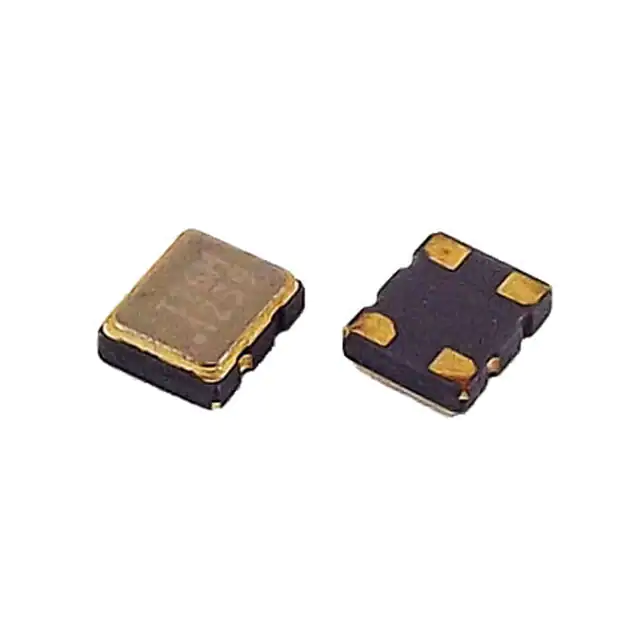

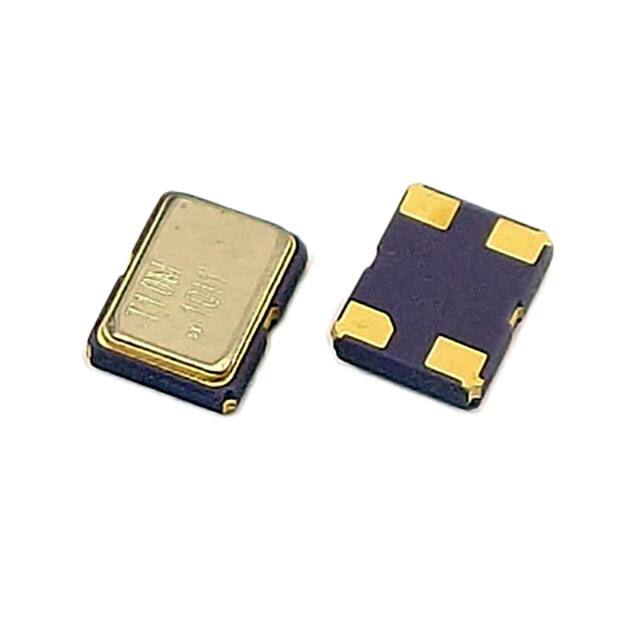

| Part Number | TX8-N05OP-26.000M-TR | TX8-N05OP-26.000M | TX3-L-25MP-26.000M-TR | TX-T30-25JP-24.576M | TX-T30-15JR-19.440M |
| Manufacturer | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. |
| Series | TX-N | TX-N | TX-L | TX-T | TX-T |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Strip | Tape & Reel (TR) | Strip | Strip |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | - | - | Crystal | Crystal | Crystal |
| Type | TCXO | TCXO | TCXO | TCXO | TCXO |
| Frequency | 26 MHz | 26 MHz | 26 MHz | 24.576 MHz | 19.44 MHz |
| Function | - | - | - | - | - |
| Output | Clipped Sine Wave | Clipped Sine Wave | Clipped Sine Wave | Clipped Sine Wave | CMOS |
| Voltage - Supply | 1.8V | 1.8V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±0.5ppm | ±0.5ppm | ±2.5ppm | ±2.5ppm | ±1.5ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 80°C | -40°C ~ 85°C | -10°C ~ 70°C | -10°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 2.5mA | 1.5mA | 2mA | 2mA | 8mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.029" (0.72mm) | 0.029" (0.72mm) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
