Ferroxcube TX16/9.1/4.7-3E27
- Part No.:
- TX16/9.1/4.7-3E27
- Manufacturer:
- Ferroxcube
- Category:
- Ferrite Cores
- Package:
- Datasheet:
-
TX16/9.1/4.7-3E27.pdf
- Description:
- FERRITE CORE TOROID 3E+27
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TX16/9.1/4.7-3E27 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Ferroxcube
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Core Type:
- Toroid
- Supplier Device Package:
- TX 16 x 9.1 x 4.7
- Material:
- 3E27
- Diameter:
- 0.635" (16.13mm)
- Inductance Factor (Al):
- -
- Tolerance:
- -
- Gap:
- -
- Effective Permeability (µe):
- -
- Initial Permeability (µi):
- -
- Core Factor (ΣI/A) mm⁻¹:
- -
- Effective Length (le) mm:
- -
- Effective Area (Ae) mm²:
- -
- Minimum Core Cross Section (Amin) mm²:
- -
- Effective Magnetic Volume (Ve) mm³:
- -
- Finish:
- Epoxy
- Height:
- 0.195" (4.95mm)
- Length:
- -
- Width:
- -

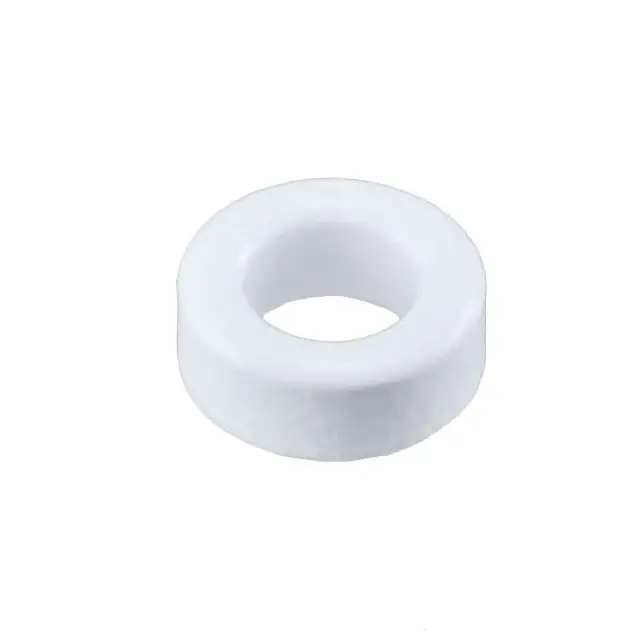

| Image |  |
 |
|
|
|
| Part Number | TX16/9.1/4.7-3E27 | TX16/9.6/6.3-3E27 | TX16/9.1/4.7-3C90 | TX16/9.1/4.7-3C94 | TX16/9.6/6.3-3E6 |
| Manufacturer | Ferroxcube | Ferroxcube | Ferroxcube | Ferroxcube | Ferroxcube |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Core Type | Toroid | Toroid | Toroid | Toroid | Toroid |
| Supplier Device Package | TX 16 x 9.1 x 4.7 | TX 16 x 9.6 x 6.3 | TX 16 x 9.1 x 4.7 | TX 16 x 9.1 x 4.7 | TX 16 x 9.6 x 6.3 |
| Material | 3E27 | 3E27 | 3C90 | 3C94 | - |
| Diameter | 0.635" (16.13mm) | 0.640" (16.25mm) | 0.635" (16.13mm) | 0.635" (16.13mm) | 0.640" (16.25mm) |
| Inductance Factor (Al) | - | - | - | - | - |
| Tolerance | - | ±30% | - | ±20% | - |
| Gap | - | Ungapped | - | Ungapped | - |
| Effective Permeability (µe) | - | - | - | - | - |
| Initial Permeability (µi) | - | - | - | 2300 | - |
| Core Factor (ΣI/A) mm⁻¹ | - | 1.95 | - | 2.53 | - |
| Effective Length (le) mm | - | 38.5 | - | 37.2 | - |
| Effective Area (Ae) mm² | - | 19.7 | - | 14.7 | - |
| Minimum Core Cross Section (Amin) mm² | - | - | - | - | - |
| Effective Magnetic Volume (Ve) mm³ | - | 760.0 | - | 548.0 | - |
| Finish | Epoxy | Epoxy | Epoxy | Epoxy | Epoxy |
| Height | 0.195" (4.95mm) | 0.258" (6.55mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.258" (6.55mm) |
| Length | - | - | - | - | - |
| Width | - | - | - | - | - |
