Transko Electronics, Inc. TSP-H50CQ33RT-40.000M
- Part No.:
- TSP-H50CQ33RT-40.000M
- Manufacturer:
- Transko Electronics, Inc.
- Category:
- Oscillators
- Package:
- 4-SOJ, 5.08mm pitch
- Datasheet:
-
TSP-H50CQ33RT-40.000M.pdf
- Description:
- 40MHz Osc., Plastic 4-pin SMD 14
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TSP-H50CQ33RT-40.000M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Transko Electronics, Inc.
- Series:
- TSP
- Package/Case:
- 4-SOJ, 5.08mm pitch
- Packaging:
- Strip
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 40 MHz
- Function:
- Enable/Disable
- Output:
- HCMOS
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±50ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 45mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.551" L x 0.341" W (14.00mm x 8.65mm)
- Height - Seated (Max):
- 0.185" (4.70mm)

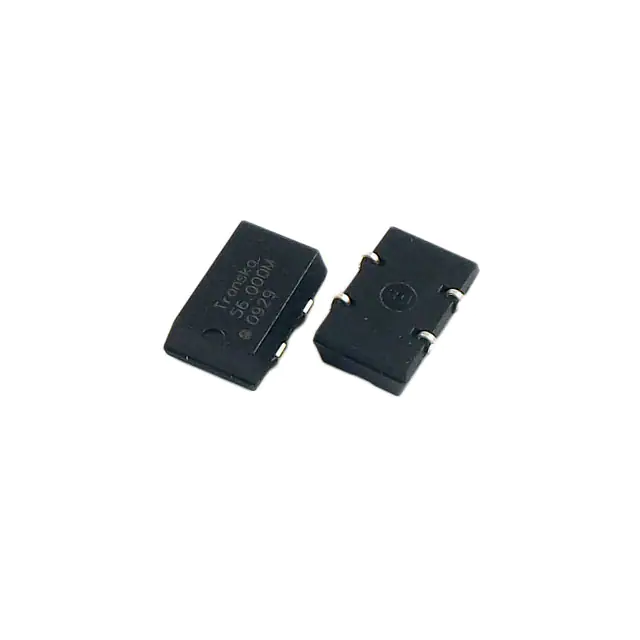

| Image |  |
|
|
|
 |
| Part Number | TSP-H00HM50RT-8.000M | TSP-H00HM50RT-8.000M-TR | TSP-H00FM50RT-14.7456M | TSP-T00CQ50RT-1.8432M | TSP-H50CQ33ST-8.000M-TR |
| Manufacturer | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. |
| Series | TSP | TSP | TSP | TSP | TSP |
| Package/Case | 4-SOJ, 5.08mm pitch | 4-SOJ, 5.08mm pitch | 4-SOJ, 5.08mm pitch | 4-SOJ, 5.08mm pitch | 4-SOJ, 5.08mm pitch |
| Packaging | Strip | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 8 MHz | 8 MHz | 14.7456 MHz | 1.8432 MHz | 8 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | HCMOS | HCMOS | HCMOS | TTL | HCMOS |
| Voltage - Supply | 5V | 5V | 5V | 5V | 3.3V |
| Frequency Stability | ±100ppm | ±100ppm | ±100ppm | ±100ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -20°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 45mA | 45mA | 45mA | 45mA | 45mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
| Size / Dimension | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.551" L x 0.341" W (14.00mm x 8.65mm) |
| Height - Seated (Max) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) |
