Transko Electronics, Inc. TSMV-H50HM33ST2E-27.000M-TR
- Part No.:
- TSMV-H50HM33ST2E-27.000M-TR
- Manufacturer:
- Transko Electronics, Inc.
- Category:
- Oscillators
- Package:
- 6-SMD, No Lead
- Datasheet:
-
TSMV-H50HM33ST2E-27.000M-TR.pdf
- Description:
- XTAL OSC VCXO 27.0000MHZ HCMOS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TSMV-H50HM33ST2E-27.000M-TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Transko Electronics, Inc.
- Series:
- TSMV
- Package/Case:
- 6-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- VCXO
- Frequency:
- 27 MHz
- Function:
- Enable/Disable
- Output:
- HCMOS
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±50ppm
- Absolute Pull Range (APR):
- ±150ppm
- Operating Temperature:
- 0°C ~ 70°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 50mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max):
- 0.071" (1.80mm)
| Image |  |
 |
|
 |
 |

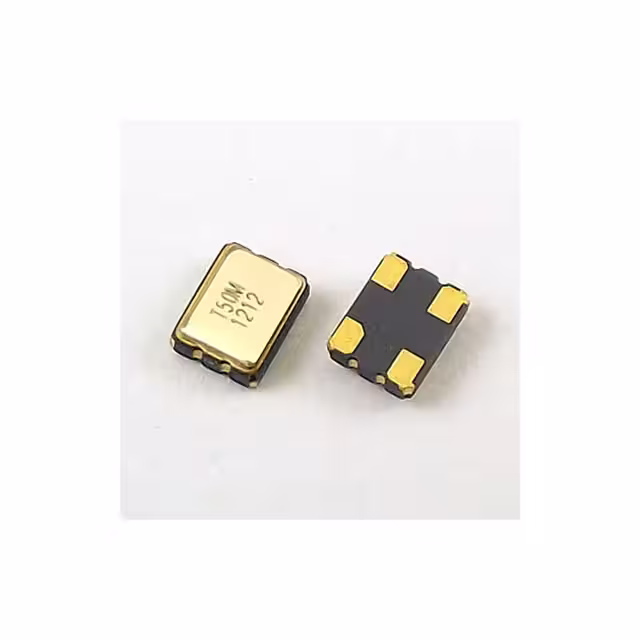

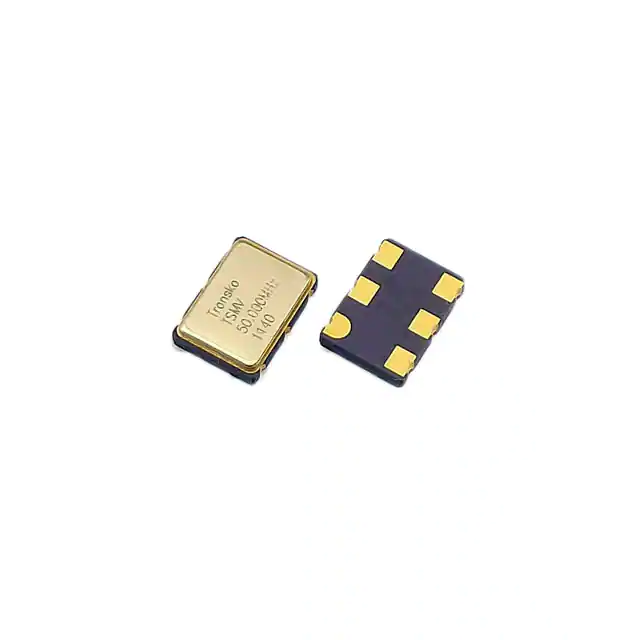

| Part Number | TSMV3-H25CQ33RC-27.000M | TSMV-H50HM33ST2C-74.250M | TSMV-H50HM33ST2C-74.17582M | TSMV-H50HM33ST2E-27.000M-TR | TSMV-H50HM33ST2C-28.224M-TR |
| Manufacturer | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. |
| Series | TSMV3 | TSMV | TSMV | TSMV | TSMV |
| Package/Case | 4-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
| Packaging | Strip | Strip | Strip | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | VCXO | VCXO | VCXO | VCXO | VCXO |
| Frequency | 27 MHz | 74.25 MHz | 74.17582 MHz | 27 MHz | 28.224 MHz |
| Function | - | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | HCMOS | HCMOS | HCMOS | HCMOS | HCMOS |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±25ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | ±100ppm | ±100ppm | ±100ppm | ±150ppm | ±100ppm |
| Operating Temperature | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 15mA | 50mA | 50mA | 50mA | 50mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
