Tianma TM084SDHG01-00
- Part No.:
- TM084SDHG01-00
- Manufacturer:
- Tianma
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Tianma 8.4" TN LCM 800×600 250nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TM084SDHG01-00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tianma
- Panel Size:
- 8.4"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- CR:
- 1900/1/20 20:01:00
- Viewing Angle:
- 70/70/60/70
- Colors:
- 262K/16.7M
- Outline Size:
- 203(W)×142.5(H) ×6.2(D) mm
- Treatment:
- Antiglare
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 500:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 25 (Typ.)(Tr+Td)
- Best View on:
- 12 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 50% NTSC
- Mass:
- TBD
- Used for:
- Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |

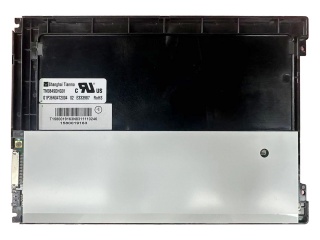

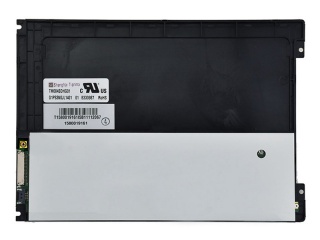

| Part Number | TM084SDHG01-00 | TM084SDHG01-02 | TM084SDHG01-01 |
| Manufacturer | Tianma | Tianma | Tianma |
| Panel Size | 8.4" | 8.4" | 8.4" |
| TNVAIPS | TN | TN | TN |
| Resolution | 800×600 | 800×600 | 800×600 |
| CR | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 70/70/60/70 | 70/70/60/70 | 70/70/60/70 |
| Colors | 262K/16.7M | 262K/16.7M | 262K/16.7M |
| Outline Size | 203(W)×142.5(H) ×6.2(D) mm | 203(H)×142.5(V) ×5.9(D) mm | 203(H)×142.5(V) ×5.9(D) mm |
| Treatment | Antiglare | Antiglare | |
| Brightness | 250 cd/m² (Typ.) | 350 cd/m² (Typ.) | 350 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) | 500:1 (Typ.) (TM) | |
| View Direction | 6 o'clock | 6 o'clock | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) | |
| Best View on | 12 o'clock | ||
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K/16.7M 50% NTSC | 262K/16.7M 54% NTSC | 262K/16.7M 54% NTSC |
| Mass | TBD | 185g (Typ.) | 185g (Typ.) |
| Used for | Industrial | Industrial | |
| Touch Screen | Without | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
