NXP USA Inc. TDF8590TH/N1T/S23J
- Part No.:
- TDF8590TH/N1T/S23J
- Manufacturer:
- NXP USA Inc.
- Category:
- Audio Amplifiers
- Package:
- 24-BSOP (0.433", 11.00mm Width) Exposed Pad
- Description:
- IC AMPLIFIER CLASS D
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TDF8590TH/N1T/S23J Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NXP USA Inc.
- Series:
- TDF
- Package/Case:
- 24-BSOP (0.433", 11.00mm Width) Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- Class D
- Output Type:
- 1-Channel (Mono) or 2-Channel (Stereo)
- Max Output Power x Channels @ Load:
- 160W x 1 @ 8Ohm; 80W x 2 @ 4Ohm
- Voltage - Supply:
- ±14V ~ 29V
- Features:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 24-HSOP

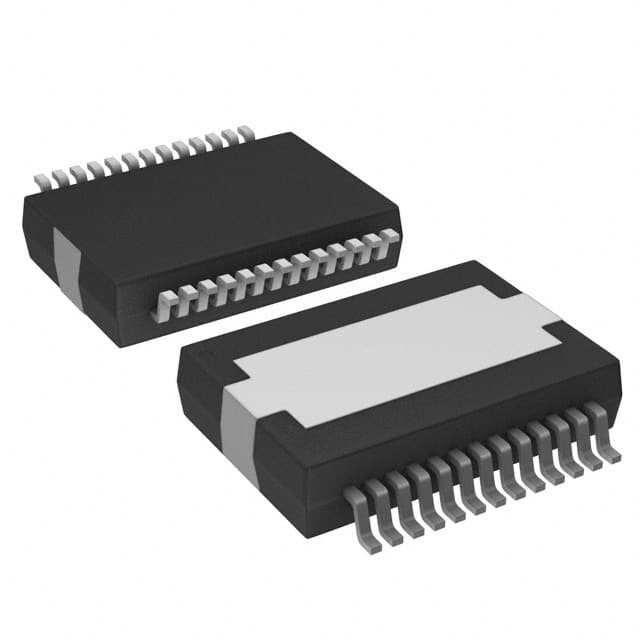

| Image |  |
|
|
 |
| Part Number | TDF8590TH/N1TJ | TDF8590TH/N1,118 | TDF8590TH/N1S,118 | TDF8590TH/N1T/S23J |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Series | - | - | - | TDF |
| Package/Case | 24-BSOP (0.433", 11.00mm Width) Exposed Pad | 24-BSOP (0.433", 11.00mm Width) Exposed Pad | 24-BSOP (0.433", 11.00mm Width) Exposed Pad | 24-BSOP (0.433", 11.00mm Width) Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Class D | Class D | Class D | Class D |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 160W x 1 @ 8Ohm; 80W x 2 @ 4Ohm | 160W x 1 @ 8Ohm; 80W x 2 @ 4Ohm | 160W x 1 @ 8Ohm; 80W x 2 @ 4Ohm | 160W x 1 @ 8Ohm; 80W x 2 @ 4Ohm |
| Voltage - Supply | ±14V ~ 29V | ±14V ~ 29V | ±14V ~ 29V | ±14V ~ 29V |
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | 24-HSOP | 24-HSOP | 24-HSOP | 24-HSOP |
