NXP USA Inc. TDF8546AJ/N1ZU
- Part No.:
- TDF8546AJ/N1ZU
- Manufacturer:
- NXP USA Inc.
- Category:
- Audio Amplifiers
- Package:
- 27-SIP, Formed Leads
- Datasheet:
-
TDF8546AJ/N1ZU.pdf
- Description:
- IC AMP CLASS AB QUAD 25W DBS27P
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TDF8546AJ/N1ZU Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NXP USA Inc.
- Series:
- -
- Package/Case:
- 27-SIP, Formed Leads
- Packaging:
- Tray
- Product Status:
- Obsolete
- Type:
- Class AB
- Output Type:
- 4-Channel (Quad)
- Max Output Power x Channels @ Load:
- 25W x 4 @ 4Ohm
- Voltage - Supply:
- 6V ~ 18V
- Features:
- Depop, Short-Circuit and Thermal Protection
- Mounting Type:
- Through Hole
- Operating Temperature:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- DBS27P
| Image |  |
 |
|
|

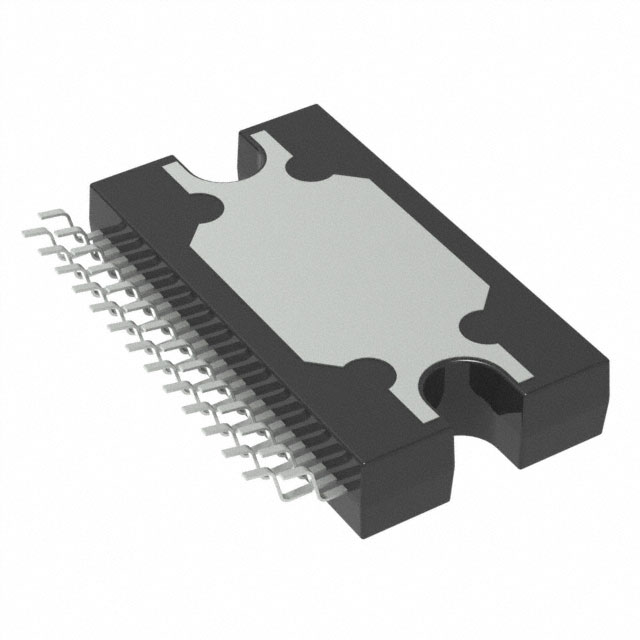

| Part Number | TDF8546AJS/N1ZS | TDF8546AJV/N1ZU | TDF8546AJ/N1,112 | TDF8546AJ/N1ZU |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Series | - | - | - | - |
| Package/Case | 27-PowerSMD Module | 27-SIP, Formed Leads | 27-SIP, Formed Leads | 27-SIP, Formed Leads |
| Packaging | Tray | Tube | Tube | Tray |
| Product Status | Active | Active | Obsolete | Obsolete |
| Type | Class AB | Class AB | Class AB | Class AB |
| Output Type | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) |
| Max Output Power x Channels @ Load | 25W x 4 @ 4Ohm | 64W x 4 @ 2Ohm, 45W x 4 @ 4Ohm, 40W x 4 @ 4Ohm | 25W x 4 @ 4Ohm | 25W x 4 @ 4Ohm |
| Voltage - Supply | 6V ~ 18V | 6V ~ 18V | 6V ~ 18V | 6V ~ 18V |
| Features | Depop, Short-Circuit and Thermal Protection | - | Depop, Short-Circuit and Thermal Protection | Depop, Short-Circuit and Thermal Protection |
| Mounting Type | Surface Mount | Through Hole | Through Hole | Through Hole |
| Operating Temperature | - | - | - | - |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | 27-DBSMSP | DBS27P | DBS27P | DBS27P |
