STMicroelectronics TDA7297
- Part No.:
- TDA7297
- Manufacturer:
- STMicroelectronics
- Category:
- Audio Amplifiers
- Package:
- Multiwatt-15 (Vertical, Bent and Staggered Leads)
- Datasheet:
-
TDA7297.pdf
- Description:
- IC AMP AB STEREO 15W 15MULTIWATT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TDA7297 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- -
- Package/Case:
- Multiwatt-15 (Vertical, Bent and Staggered Leads)
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Class AB
- Output Type:
- 2-Channel (Stereo)
- Max Output Power x Channels @ Load:
- 15W x 2 @ 8Ohm
- Voltage - Supply:
- 6.5V ~ 18V
- Features:
- Mute, Short-Circuit and Thermal Protection, Standby
- Mounting Type:
- Through Hole
- Operating Temperature:
- 0°C ~ 70°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 15-Multiwatt
| Image |  |
 |
 |
|

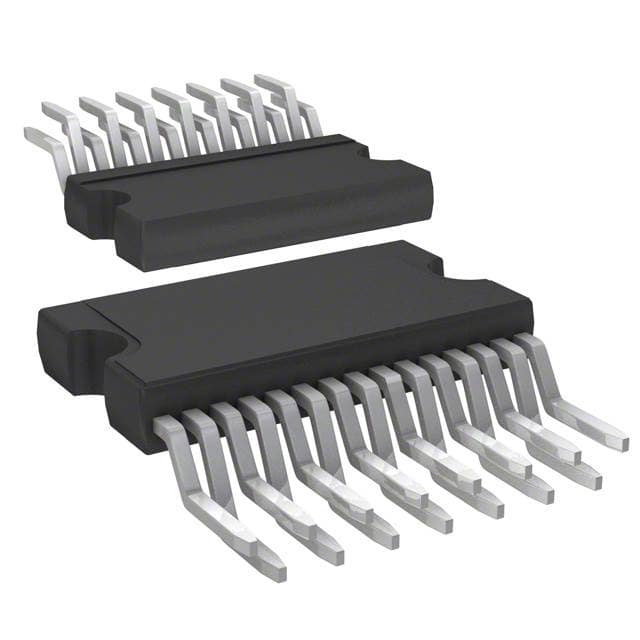

| Part Number | TDA7297 | TDA7297D13TR | TDA7297SA | TDA7297D |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Series | - | - | - | - |
| Package/Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Clipwatt-15 (Vertical, Bent and Staggered Leads) | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Type | Class AB | Class AB | Class AB | Class AB |
| Output Type | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 15W x 2 @ 8Ohm | 10W x 2 @ 8Ohm | 10W x 2 @ 8Ohm | 10W x 2 @ 8Ohm |
| Voltage - Supply | 6.5V ~ 18V | 6.5V ~ 18V | 6.5V ~ 18V | 6.5V ~ 18V |
| Features | Mute, Short-Circuit and Thermal Protection, Standby | Mute, Short-Circuit and Thermal Protection, Standby | Mute, Short-Circuit and Thermal Protection, Standby | Mute, Short-Circuit and Thermal Protection, Standby |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | 15-Multiwatt | PowerSO-20 | 15-Clipwatt | PowerSO-20 |
