Toshiba Semiconductor and Storage TC35661SBG-503(EL)
- Part No.:
- TC35661SBG-503(EL)
- Manufacturer:
- Toshiba Semiconductor and Storage
- Category:
- RF Transceiver ICs
- Package:
- 64-TFBGA
- Datasheet:
-
TC35661SBG-503(EL).pdf
- Description:
- IC RF TXRX+MCU BLE 64TFBGA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TC35661SBG-503(EL) Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Toshiba Semiconductor and Storage
- Series:
- TC
- Package/Case:
- 64-TFBGA
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Type:
- TxRx + MCU
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v4.2
- Modulation:
- -
- Frequency:
- 2.4GHz ~ 2.4835GHz
- Data Rate (Max):
- 4.33Mbps
- Power - Output:
- 2dBm
- Sensitivity:
- -95dBm
- Memory Size:
- -
- Serial Interfaces:
- I2C, SPI, UART
- GPIO:
- 19
- Voltage - Supply:
- 1.7V ~ 1.9V, 2.7V ~ 3.6V
- Current - Receiving:
- 54mA
- Current - Transmitting:
- 24mA ~ 30mA
- Operating Temperature:
- -20°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 64-TFBGA (5x5)

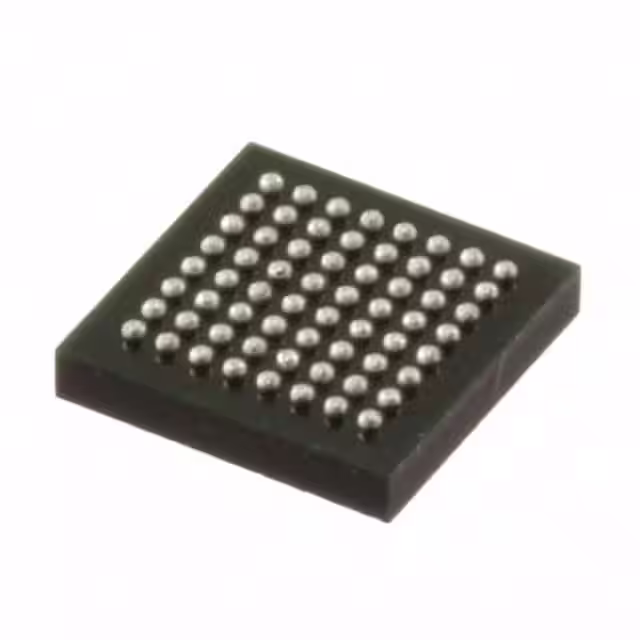

| Image |  |
|
 |
|
| Part Number | TC35661SBG-501,EL | TC35661SBG-203,EL | TC35661SBG-503(EL) | TC35661SBG-551(EL) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Series | - | - | TC | TC |
| Package/Case | 64-FBGA | 64-FBGA | 64-TFBGA | 64-TFBGA |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified |
| Type | TxRx Only | TxRx Only | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.0 | Bluetooth v3.0 | Bluetooth v4.2 | Bluetooth v4.2 |
| Modulation | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz |
| Data Rate (Max) | 2Mbps | 2Mbps | 4.33Mbps | 4.33Mbps |
| Power - Output | 2dBm | 2dBm | 2dBm | 1dBm |
| Sensitivity | -90dBm | -90dBm | -95dBm | -95dBm |
| Memory Size | - | - | - | - |
| Serial Interfaces | I2C, SPI, UART | I2C, SPI, UART | I2C, SPI, UART | I2C, I2S, JTAG, SPI, UART, USB |
| GPIO | - | - | 19 | 19 |
| Voltage - Supply | 1.8V ~ 3.6V | 1.8V ~ 3.3V | 1.7V ~ 1.9V, 2.7V ~ 3.6V | 1.7V ~ 1.9V, 2.7V ~ 3.6V |
| Current - Receiving | 63mA | 63mA | 54mA | 54mA |
| Current - Transmitting | 63mA | 63mA | 24mA ~ 30mA | 24mA ~ 30mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | - | - | 64-TFBGA (5x5) | 64-TFBGA (5x5) |
