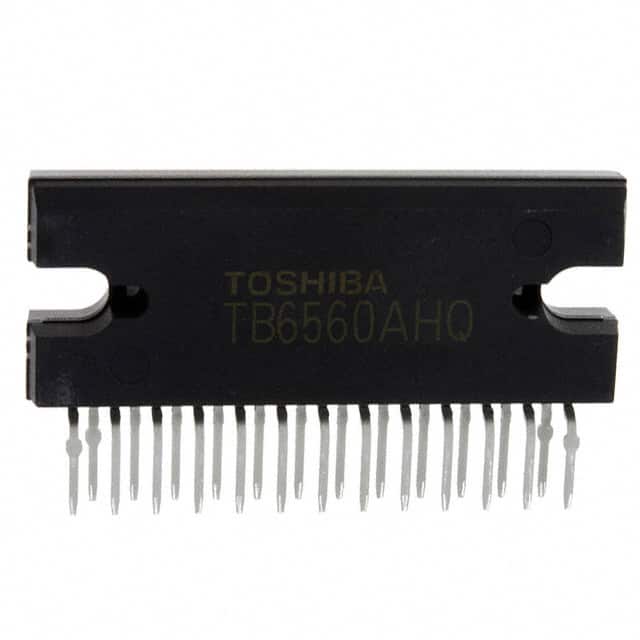

Toshiba Semiconductor and Storage TB6560AHQ
- Part No.:
- TB6560AHQ
- Manufacturer:
- Toshiba Semiconductor and Storage
- Category:
- Motor Drivers, Controllers
- Package:
- 25-SSIP Formed Leads
- Description:
- IC MTR DRV BIPLR 4.5-5.5V 25HZIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TB6560AHQ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Toshiba Semiconductor and Storage
- Series:
- -
- Package/Case:
- 25-SSIP Formed Leads
- Packaging:
- Tray
- Product Status:
- Obsolete
- Motor Type - Stepper:
- Bipolar
- Motor Type - AC, DC:
- -
- Function:
- Driver - Fully Integrated, Control and Power Stage
- Output Configuration:
- Half Bridge (4)
- Interface:
- Parallel
- Technology:
- Power MOSFET
- Step Resolution:
- 1, 1/2, 1/4, 1/8, 1/16
- Applications:
- General Purpose
- Current - Output:
- 3A
- Voltage - Supply:
- 4.5V ~ 5.5V
- Voltage - Load:
- 4.5V ~ 34V
- Operating Temperature:
- -30°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- 25-HZIP
| Image | .JPG) |
 |
| Part Number | TB6560AHQ,8 | TB6560AHQ |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Series | - | - |
| Package/Case | 25-SSIP Formed Leads | 25-SSIP Formed Leads |
| Packaging | Tube | Tray |
| Product Status | Active | Obsolete |
| Motor Type - Stepper | Bipolar | Bipolar |
| Motor Type - AC, DC | - | - |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | Half Bridge (4) |
| Interface | Parallel | Parallel |
| Technology | Power MOSFET | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 | 1, 1/2, 1/4, 1/8, 1/16 |
| Applications | General Purpose | General Purpose |
| Current - Output | 3A | 3A |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 34V | 4.5V ~ 34V |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 25-HZIP | 25-HZIP |
- Include Parts
- Popular Search
The following parts include "TB6560AHQ" in Silicon Labs TB6560AHQ.
- Part Number
- Manufacturer
- Package
- Description
- DRV2603RUNR Texas Instruments 10-WFQFN IC MOTOR DRIVER 2.5V-5.2V 10QFN
- DRV8837CDSGR Texas Instruments 8-WFDFN Exposed Pad IC HALF-BRIDGE DRVR PWM 8WSON
- DRV8837DSGR Texas Instruments 8-WFDFN Exposed Pad IC MOTOR DRIVER PAR 8WSON
- DRV8838DSGR Texas Instruments 8-WFDFN Exposed Pad IC BRIDGE DRIVER PAR 8WSON
- DRV8839DSSR Texas Instruments 12-WFDFN Exposed Pad IC MTR DRVR BIPOLR 1.8-7V 12WSON
- EMC2301-1-ACZL-TR Microchip Technology 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) IC MOTOR DRIVER 3V-3.6V 8MSOP
- DRV8231ADSGR Texas Instruments 8-WFDFN Exposed Pad 33V H BRIDGE MOTOR DRIVER WITH C
- EMC2302-2-AIZL-TR Microchip Technology 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) IC MOTOR DRIVER 3V-3.6V 10MSOP
- DRV8800PWPR Texas Instruments 16-PowerTSSOP (0.173", 4.40mm Width) IC MTR DRV BIPOLR 8-38V 16HTSSOP
- DRV8835DSSR Texas Instruments 12-WFDFN Exposed Pad IC MTR DRVR BIPOLAR 2-7V 12WSON
