AUO T215HVN01.1
- Part No.:
- T215HVN01.1
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 21.5" VA LCM 1920×1080 250nits WLED LVDS 30pins 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
T215HVN01.1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 21.5"
- TNVAIPS:
- VA
- Resolution:
- 1920×1080
- CR:
- 1900/5/4 0:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 495.6×292.2×11 (H×V×D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 3000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 13/5 (Typ.)(Tr/Td) ms
- Best View on:
- Symmetry
- Work Mode:
- VA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 74% NTSC
- Mass:
- 1.67Kgs (Typ.)
- Used for:
- Desktop Monitor; TV Sets
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |

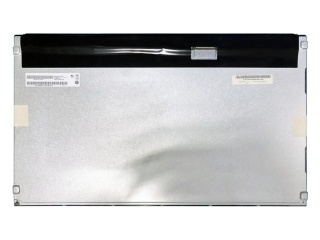

| Part Number | T215HVN01.1 | T215HVN01.0 | T215HVN01.2 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 21.5" | 21.5" | 21.5" |
| TNVAIPS | VA | VA | VA |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/5/4 0:01:00 | 1900/5/4 0:01:00 | 1900/5/4 0:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M |
| Outline Size | 495.6×292.2×11 (H×V×D) | 495.6(W)×292.2(H) ×11.1(D) mm | 495.6(W)×292.2(H)×11.1(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) | 3000:1 (Typ.) (TM) | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 13/5 (Typ.)(Tr/Td) ms | 18 (Typ.)(Tr+Td) | 13/5 (Typ.)(Tr/Td) |
| Best View on | Symmetry | Symmetry | |
| Work Mode | VA, Normally Black, Transmissive | VA, Normally Black, Transmissive | VA, Normally Black, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 74% NTSC | 16.7M 77% NTSC | 16.7M 72% NTSC |
| Mass | 1.67Kgs (Typ.) | 1.67Kgs (Typ.) | 1.67Kgs (Typ.) |
| Used for | Desktop Monitor; TV Sets | Desktop Monitor; TV Sets | |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz | 75Hz |
