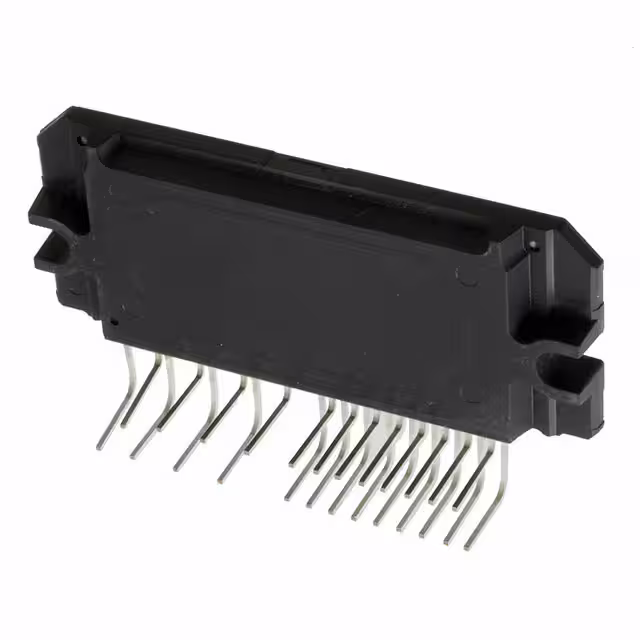

onsemi STK57FU394A-E
- Part No.:
- STK57FU394A-E
- Manufacturer:
- onsemi
- Category:
- Full Half-Bridge (H Bridge) Drivers
- Package:
- 35-SSIP, 25 Leads, Formed Leads
- Datasheet:
-
STK57FU394A-E.pdf
- Description:
- IC HALF BRIDGE DRIVER 15A 35SIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
STK57FU394A-E Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- -
- Package/Case:
- 35-SSIP, 25 Leads, Formed Leads
- Packaging:
- Tube
- Product Status:
- Obsolete
- Output Configuration:
- Half Bridge (3)
- Applications:
- AC Motors
- Interface:
- -
- Load Type:
- Inductive
- Technology:
- Bipolar
- Rds On (Typ):
- -
- Current - Output / Channel:
- 15A
- Current - Peak Output:
- 30A
- Voltage - Supply:
- 12.5V ~ 17V
- Voltage - Load:
- 400V (Max)
- Operating Temperature:
- 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Features:
- -
- Fault Protection:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- 35-SIP
| Image | .jpg) |
 |
| Part Number | STK57FU394AG-E | STK57FU394A-E |
| Manufacturer | onsemi | onsemi |
| Series | - | - |
| Package/Case | 35-SSIP, 25 Leads | 35-SSIP, 25 Leads, Formed Leads |
| Packaging | Tape & Reel (TR) | Tube |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (3) | Half Bridge (3) |
| Applications | AC Motors, DC Motors, General Purpose | AC Motors |
| Interface | Logic | - |
| Load Type | Inductive | Inductive |
| Technology | IGBT | Bipolar |
| Rds On (Typ) | - | - |
| Current - Output / Channel | 15A | 15A |
| Current - Peak Output | 30A | 30A |
| Voltage - Supply | 12.5V ~ 17.5V | 12.5V ~ 17V |
| Voltage - Load | 400V (Max) | 400V (Max) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Features | Bootstrap Circuit | - |
| Fault Protection | Current Limiting, UVLO | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 35-SIP/SIP2A-3 | 35-SIP |
