STMicroelectronics STGIPN3H60
- Part No.:
- STGIPN3H60
- Manufacturer:
- STMicroelectronics
- Category:
- Power Driver Modules
- Package:
- 26-PowerDIP Module (0.846", 21.48mm)
- Description:
- IGBT IPM MODULE 3A 600V NDIP-26L
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
STGIPN3H60 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- SLLIMM™
- Package/Case:
- 26-PowerDIP Module (0.846", 21.48mm)
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- IGBT
- Configuration:
- 3 Phase
- Current:
- 3 A
- Voltage:
- 600 V
- Voltage - Isolation:
- 1000VDC
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
| Image |  |
.jpg) |
 |
 |
|

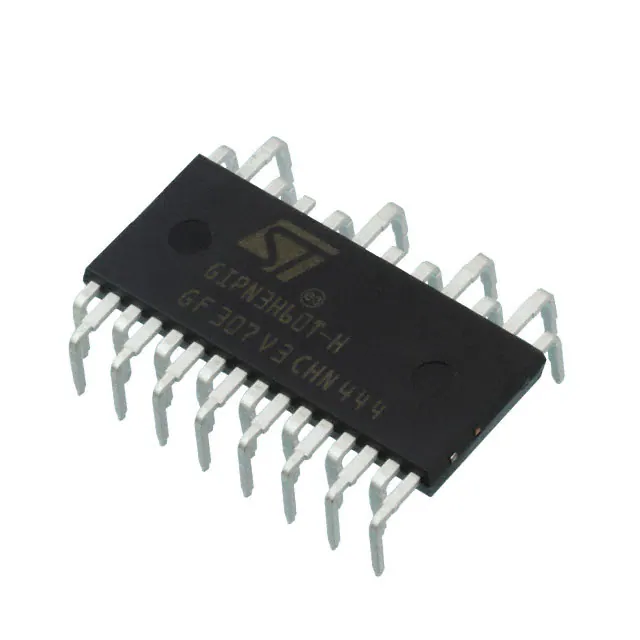

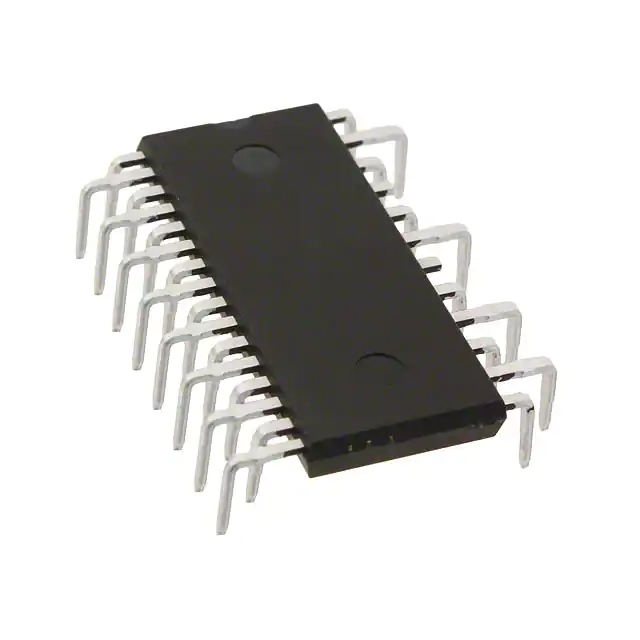

| Part Number | STGIPN3H60 | STGIPN3H60AT | STGIPN3H60A | STGIPN3H60T-H | STGIPN3H60-H |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Series | SLLIMM™ | SLLIMM™ | SLLIMM™ | SLLIMM™ | SLLIMM™ |
| Package/Case | 26-PowerDIP Module (0.846", 21.48mm) | 26-PowerDIP Module (0.846", 21.48mm) | 26-PowerDIP Module (0.846", 21.48mm) | 26-PowerDIP Module (0.846", 21.48mm) | 26-PowerDIP Module (0.846", 21.48mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Obsolete |
| Type | IGBT | IGBT | IGBT | IGBT | IGBT |
| Configuration | 3 Phase | 3 Phase Inverter | 3 Phase | 3 Phase | 3 Phase |
| Current | 3 A | 3 A | 3 A | 3 A | 3 A |
| Voltage | 600 V | 600 V | 600 V | 600 V | 600 V |
| Voltage - Isolation | 1000VDC | 1000Vrms | 1000VDC | 1000Vrms | 1000Vrms |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
