Autonics SRH3-1275
- Part No.:
- SRH3-1275
- Manufacturer:
- Autonics
- Category:
- Solid State Relays (SSR)
- Package:
- SSR with Integrated Heat Sink
- Datasheet:
-
SRH3-1275.pdf
- Description:
- SSR RELAY 3PST-NO 75A 24-240V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SRH3-1275 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Autonics
- Series:
- SR3
- Packaging:
- Box
- Product Status:
- Active
- Mounting Type:
- Chassis Mount or Panel Mount
- Circuit:
- 3PST-NO (3 Form A)
- Output Type:
- AC, Zero Cross
- Voltage - Input:
- 4 ~ 30VDC
- Voltage - Load:
- 24 V ~ 240 V
- Load Current:
- 75 A
- On-State Resistance (Max):
- -
- Termination Style:
- Screw Terminal
- Operating Temperature:
- -
- Supplier Device Package:
- Module
- Approval Agency:
- -
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

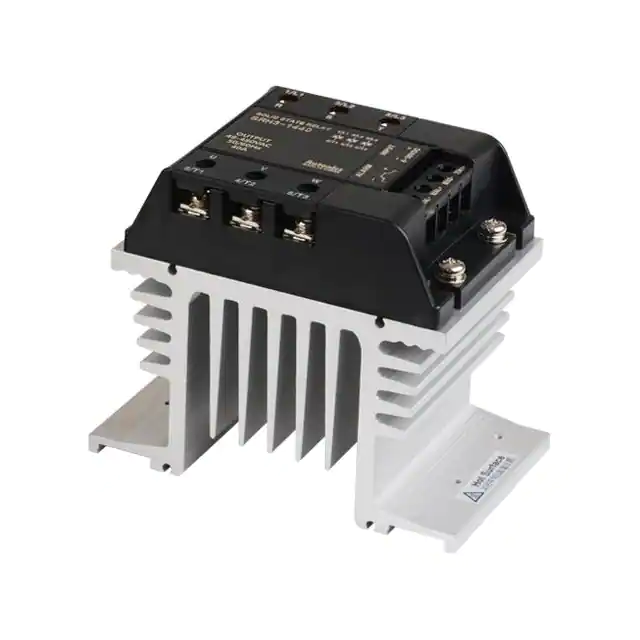

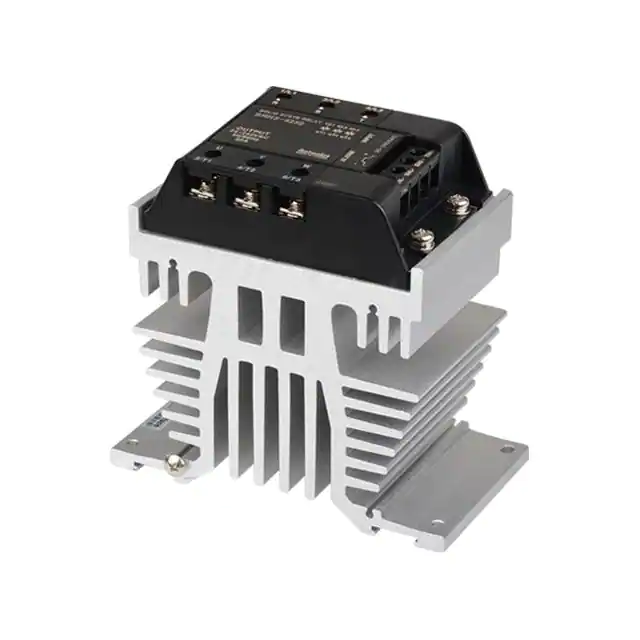

| Part Number | SRH3-1430 | SRH3-4430 | SRH3-1440 | SRH3-4250 | SRH3-1450 |
| Manufacturer | Autonics | Autonics | Autonics | Autonics | Autonics |
| Series | SR3 | SR3 | SR3 | SR3 | SR3 |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Chassis Mount, DIN Rail | Chassis Mount, DIN Rail | Chassis Mount, DIN Rail | Chassis Mount or Panel Mount | Chassis Mount or Panel Mount |
| Circuit | 3PST-NO (3 Form A) | 3PST-NO (3 Form A) | 3PST-NO (3 Form A) | 3PST-NO (3 Form A) | 3PST-NO (3 Form A) |
| Output Type | AC, Zero Cross | AC, Zero Cross | AC, Zero Cross | AC, Zero Cross | AC, Zero Cross |
| Voltage - Input | 4 ~ 30VDC | 90 ~ 240VAC | 4 ~ 30VDC | 90 ~ 240VAC | 4 ~ 30VDC |
| Voltage - Load | 48 V ~ 480 V | 48 V ~ 480 V | 48 V ~ 480 V | 24 V ~ 240 V | 48 V ~ 480 V |
| Load Current | 30 A | 30 A | 40 A | 50 A | 50 A |
| On-State Resistance (Max) | - | - | - | - | - |
| Termination Style | Screw Terminal | Screw Terminal | Screw Terminal | Screw Terminal | Screw Terminal |
| Operating Temperature | - | - | - | - | - |
| Supplier Device Package | Module | Module | Module | Module | Module |
| Approval Agency | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
