Autonics SRC1-4220
- Part No.:
- SRC1-4220
- Manufacturer:
- Autonics
- Category:
- Solid State Relays (SSR)
- Package:
- Module
- Datasheet:
-
SRC1-4220.pdf
- Description:
- SSR RELAY SPST-NO 20A 24-240V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SRC1-4220 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Autonics
- Series:
- SRC1
- Packaging:
- Box
- Product Status:
- Active
- Mounting Type:
- Chassis Mount or Panel Mount
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, Zero Cross
- Voltage - Input:
- 90 ~ 240VAC
- Voltage - Load:
- 24 V ~ 240 V
- Load Current:
- 20 A
- On-State Resistance (Max):
- -
- Termination Style:
- Screw Terminal
- Operating Temperature:
- -
- Supplier Device Package:
- Module
- Approval Agency:
- -
- Grade:
- -
- Qualification:
- -
| Image |  |
|
 |
 |
 |

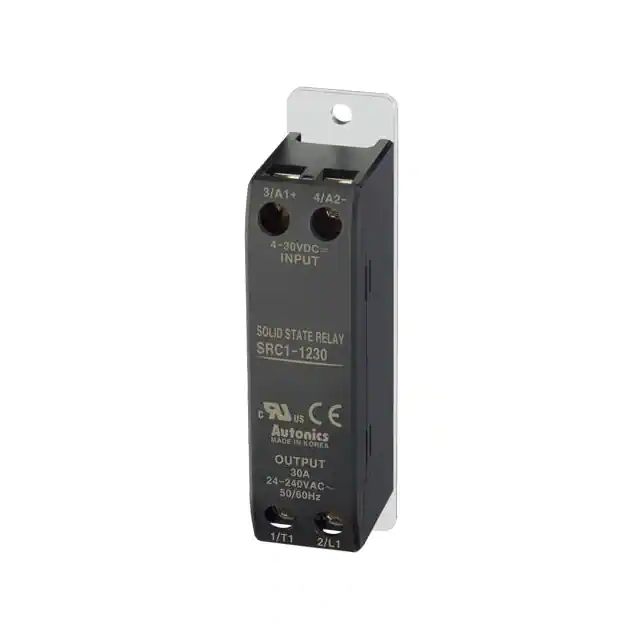

| Part Number | SRC1-1230 | SRC1-1230-N | SRC1-1215-N | SRC1-1420 | SRC1-4230 |
| Manufacturer | Autonics | Autonics | Autonics | Autonics | Autonics |
| Series | SRC1 | SRC1 | SRC1 | SRC1 | SRC1 |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Chassis Mount or Panel Mount | Chassis Mount or Panel Mount | Chassis Mount or Panel Mount | Chassis Mount or Panel Mount | Chassis Mount or Panel Mount |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Output Type | AC, Zero Cross | AC, Zero Cross | AC, Zero Cross | AC, Zero Cross | AC, Zero Cross |
| Voltage - Input | 4 ~ 30VDC | 4 ~ 30VDC | 4 ~ 30VDC | 4 ~ 30VDC | 90 ~ 240VAC |
| Voltage - Load | 24 V ~ 240 V | 24 V ~ 240 V | 24 V ~ 240 V | 48 V ~ 480 V | 24 V ~ 240 V |
| Load Current | 30 A | 30 A | 15 A | 20 A | 30 A |
| On-State Resistance (Max) | - | - | - | - | - |
| Termination Style | Screw Terminal | Screw Terminal | Screw Terminal | Screw Terminal | Screw Terminal |
| Operating Temperature | - | - | - | - | - |
| Supplier Device Package | Module | Module | Module | Module | Module |
| Approval Agency | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
